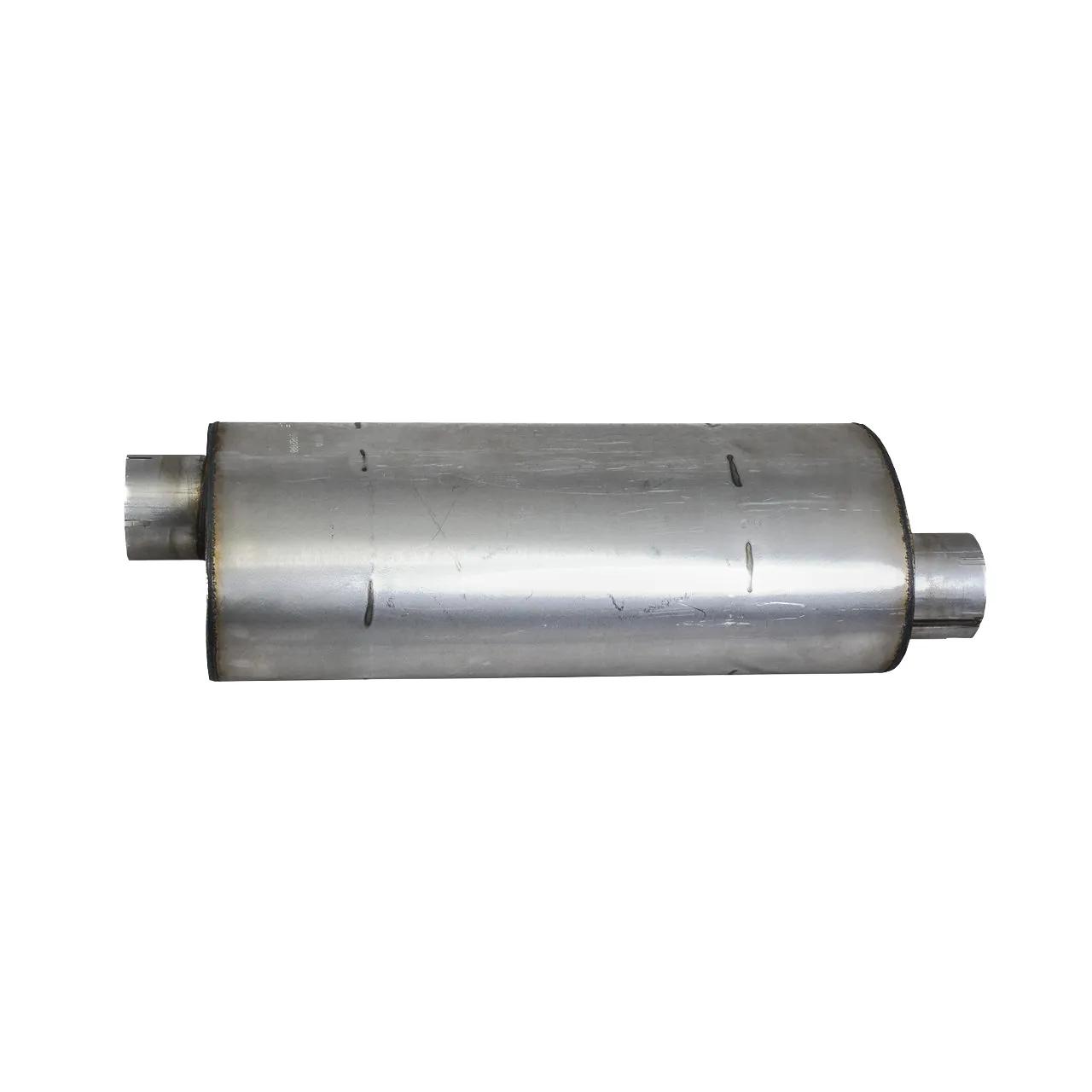

Muffler, OD: 8-1/4 in, Le: 27 in

#DONM090280

Product Overview

Why Choose Donaldson?

Donaldson delivers a full line of aftermarket liquid, lube, air, hydraulic, and exhaust system components.

Products and technology designed to consistently meet required specifications – and your expectations.

Attenuation Low Range	12 dBA
Attenuation High Range	18 dBA
Back Pressure High-Range (Metric)	76 mm HG
Back Pressure High Range	2.99 in HG
Back Pressure Low Range	0.98 in HG
Back Pressure Mid Range	2.01 in HG
Back Pressure Low-Range (Metric)	25 mm HG
Back Pressure Mid-Range (Metric)	51 mm HG
Body Diameter	8-3/16 in (20.8 cm)
Body Diameter Max	11-1/2 in (29.21 cm)
Body Length	25-63/64 in (66 cm)
Color	Aluminized
Height	8-1/4 in (20.96 cm)
Inlet Clock Position	3:00
Inlet Diameter	4 in (10.16 cm)
Inlet Quantity	1
Inlet Type	Pipe Connection
Length	27 in (68.58 cm)
Material	Steel
Outlet Clock Position	9:00
Outlet Diameter	4 in (10.16 cm)
Outlet Quantity	1
Outlet Type	Pipe Connection
Overall Length	32-1/4 in (81.92 cm)
Rated Flow High Range	1716.29 cfm (48.6 m³/min)
Rated Flow Low Range	992.34 cfm (28.1 m³/min)
Rated Flow Mid Range	1716.29 cfm (48.6 m³/min)[delete]
Reversible	No
Shape	Oval
Length Range	25 to 26 in
Style	Style 2
