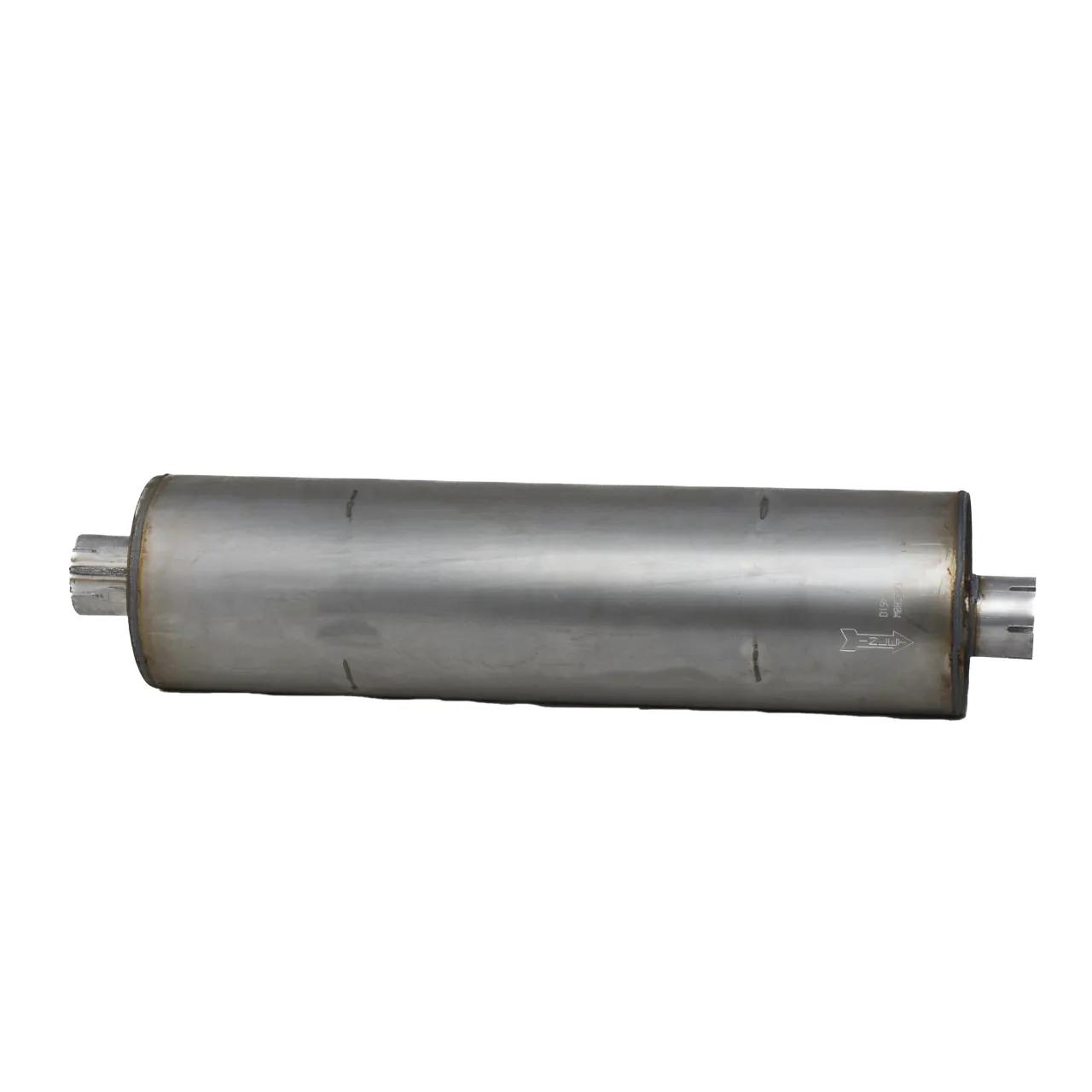

Muffler, OD: 8-1/4 in, Le: 29-1/4 in

#DONM085023

Product Overview

Donaldson delivers a full line of aftermarket liquid, lube, air, hydraulic, and exhaust system components.

Products and technology designed to consistently meet required specifications – and your expectations.

Attenuation Low Range	17 dBA
Attenuation High Range	22 dBA
Back Pressure High-Range (Metric)	76 mm HG
Back Pressure High Range	2.99 in HG
Back Pressure Low Range	0.98 in HG
Back Pressure Mid Range	2.01 in HG
Back Pressure Low-Range (Metric)	25 mm HG
Back Pressure Mid-Range (Metric)	51 mm HG
Body Diameter	8-1/2 in (21.59 cm)
Body Length	31-17/64 in (79.42 cm)
Color	Aluminized
Height	8-1/4 in (20.96 cm)
Inlet Clock Position	6:00
Inlet Diameter	3 in (7.62 cm)
Inlet Quantity	1
Inlet Type	Pipe Connection
Length	29-1/4 in (74.3 cm)
Material	Steel
Outlet Clock Position	12:00
Outlet Diameter	3 in (7.62 cm)
Outlet Quantity	1
Outlet Type	Pipe Connection
Overall Length	36-1/4 in (92.08 cm)
Rated Flow High Range	1094.75 cfm (31 m³/min)
Rated Flow Low Range	632.13 cfm (17.9 m³/min)
Rated Flow Mid Range	1094.75 cfm (31 m³/min)[delete]
Reversible	No
Shape	Round
Length Range	31 to 32 in
Style	Style 2
Width	8-3/8 in (21.26 cm)
