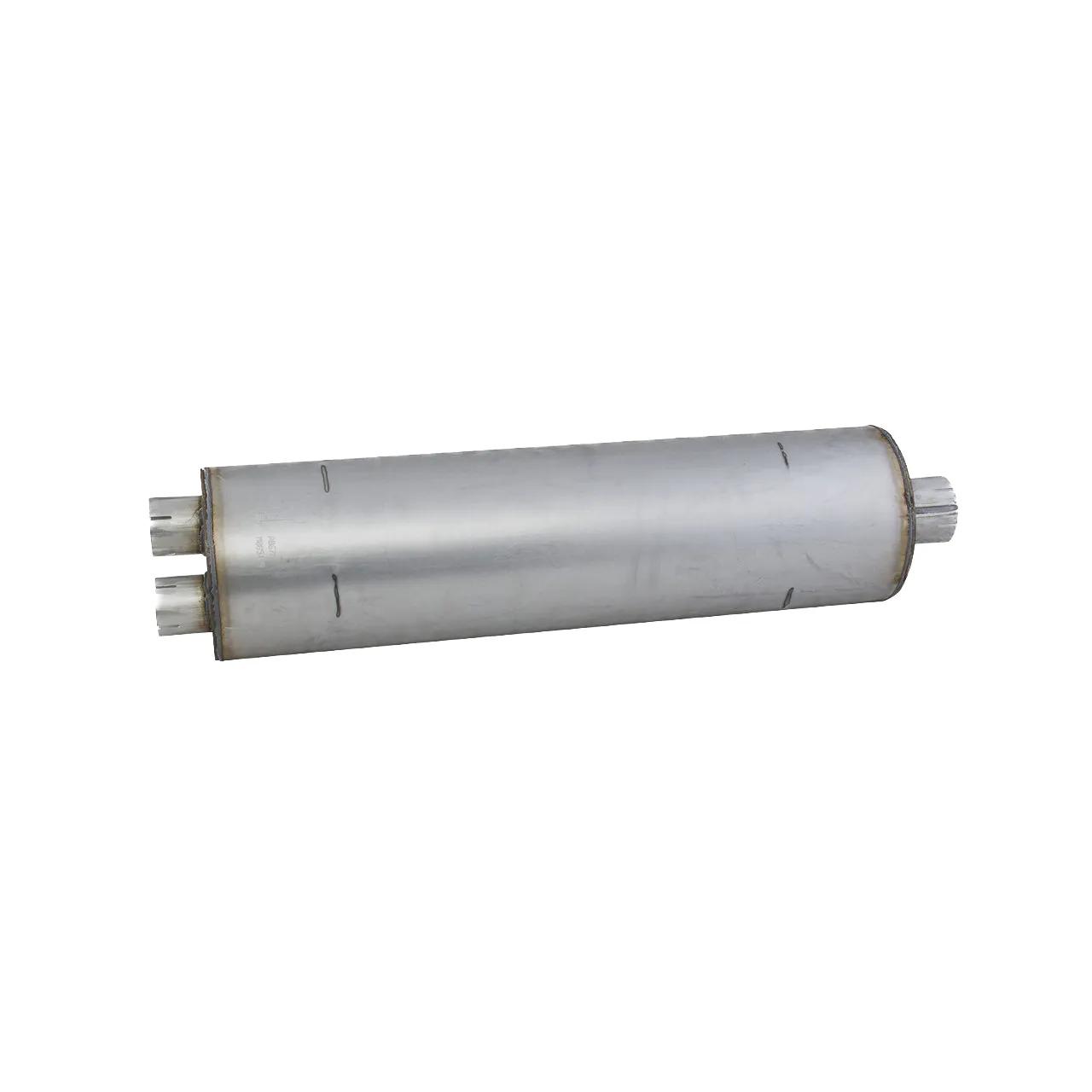

Muffler, OD: 8-1/4 in, Le: 29-1/4 in
#DONM085189
Caractéristiques et avantages
- Donaldson delivers a full line of aftermarket liquid, lube, air, hydraulic, and exhaust system components.
- Products and technology designed to consistently meet required specifications – and your expectations.
- Superior performance in thousands of on- and off-road applications.
Spécifications
| Attenuation Low Range | 15 dBA |
| Attenuation High Range | 20 dBA |
| Back Pressure High-Range (Metric) | 76 mm HG |
| Back Pressure High Range | 2.99 in HG |
| Back Pressure Low Range | 0.98 in HG |
| Back Pressure Mid Range | 2.01 in HG |
| Back Pressure Low-Range (Metric) | 25 mm HG |
| Back Pressure Mid-Range (Metric) | 51 mm HG |
| Body Diameter | 8-1/2 in (21.59 cm) |
| Body Length | 31-17/64 in (79.42 cm) |
| Color | Aluminized |
| Height | 8-1/4 in (20.96 cm) |
| Inlet Clock Position | 6:00 |
| Inlet Diameter | 2-1/2 in (6.35 cm) |
| Inlet Quantity | 2 |
| Inlet Type | Pipe Connection |
| Length | 29-1/4 in (74.3 cm) |
| Material | Steel |
| Outlet Clock Position | 12:00 |
| Outlet Diameter | 3 in (7.62 cm) |
| Outlet Quantity | 1 |
| Outlet Type | Pipe Connection |
| Overall Length | 36-1/4 in (92.08 cm) |
| Rated Flow High Range | 875.8 cfm (24.8 m³/min) |
| Rated Flow Low Range | 505 cfm (14.3 m³/min) |
| Rated Flow Mid Range | 875.8 cfm (24.8 m³/min)[delete] |
| Reversible | No |
| Shape | Round |
| Length Range | 31 to 32 in |
| Style | Style 2A |
| Width | 8-3/8 in (21.26 cm) |
Interchanges et pièces équivalentes:
| M085189 |
| 3150 |
| 525 |
| M525 |
| 86184M |
| 86525M |
| M2A25385 |
| 85924 |
| KM3103 |
| 1909241 |
| 3150Q |
| MZM085189 |
| 9575M085189 |
| 9575MZM085189P |
| E2HZ5230G |
| E4HT5230BA |
| DNM085189 |
| 31212 |
| 12468776 |
| 488710C2 |
| DCM085189 |
| 27076528 |
| 027076528 |
| 12322845 |
| 2191-M085189 |
| 31212HDM |
| DONM085189 |
| FLT86184M |
| M2A-25385 |
| DN M085189 |
| DN M085189 |
| 22865 |
