Muffler, Le: 18-13/16 in
#DONM060158
Product Overview

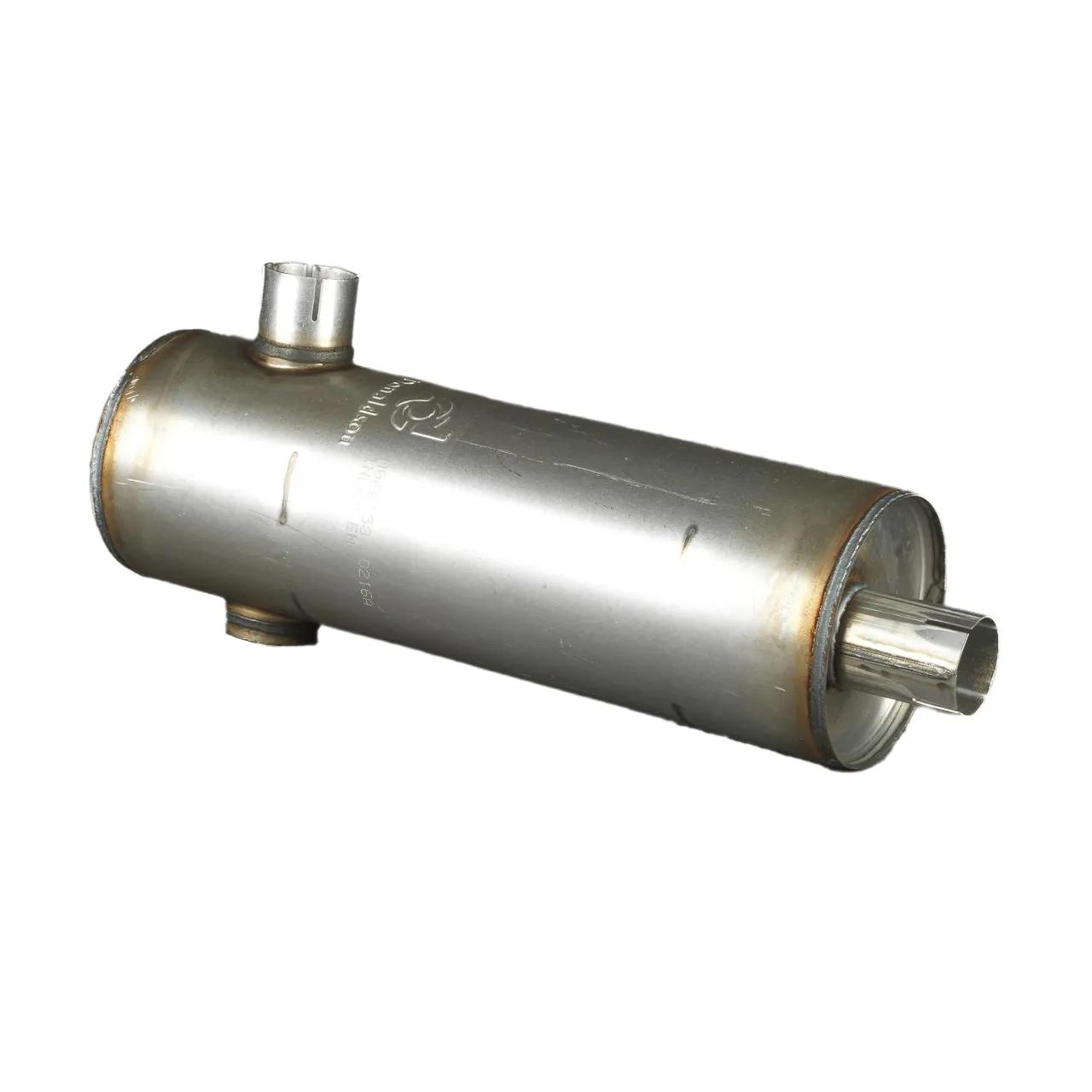

MUFFLER, ROUND STYLE 3
Features & Benefits
- Donaldson delivers a full line of aftermarket liquid, lube, air, hydraulic, and exhaust system components.
- Products and technology designed to consistently meet required specifications – and your expectations.
- Superior performance in thousands of on- and off-road applications.
Specifications
| Attenuation Low Range | 15 dBA |
| Attenuation High Range | 20 dBA |
| Back Pressure High-Range (Metric) | 76 mm HG |
| Back Pressure High Range | 2.99 in HG |
| Back Pressure Low Range | 0.98 in HG |
| Back Pressure Mid Range | 2.01 in HG |
| Back Pressure Low-Range (Metric) | 25 mm HG |
| Back Pressure Mid-Range (Metric) | 51 mm HG |
| Body Diameter | 5-63/64 in (15.2 cm) |
| Body Length | 18-13/16 in (47.79 cm) |
| Inlet Clock Position | 3:00 |
| Inlet Diameter | 2 in (5.08 cm) |
| Length | 18-13/16 in (47.78 cm) |
| Outlet Clock Position | 6:00 |
| Outlet Diameter | 2 in (5.08 cm) |
| Overall Length | 21-1/2 in (54.61 cm) |
| Rated Flow High Range | 381.4 cfm (10.8 m³/min) |
| Rated Flow Low Range | 222.48 cfm (6.3 m³/min) |
| Length Range | 18 to 19 in |
| Style | Style 3 |
Interchanges & Equivalent parts:
| 88H200190 |
| 86190M |
| ME439M |
| 3622 |
| 3622Q |
| 13195474 |
| 15091158 |
| 340283 |
| N100413 |
| 986055 |
| 7406019400 |
| 1075A69970 |
| 78268 |
| DOM060158 |
| 160692 |
| 2503776 |
| 194137A |
| 9575M060158 |
| 7642000052 |
| SKB800935 |
| 31080 |
| 403100001 |
| DCM060158 |
| 10719871 |
| 202265 |
| 20006 |
| P19871 |
| 2120403292 |
| 29118845 |
| 7630255 |
| 507101 |
| 180124 |
| 12826 |
| 501004 |
| 67496 |
| 810270 |
| 020006 |
| 067496 |
| 00810270 |
| 126417 |
| 1403778 |
| 2191-M060158 |
| 31080HDM |
| D0M060158 |
| DONM060158 |
| EX300021 |
| DN M060158 |
| DN M060158 |
