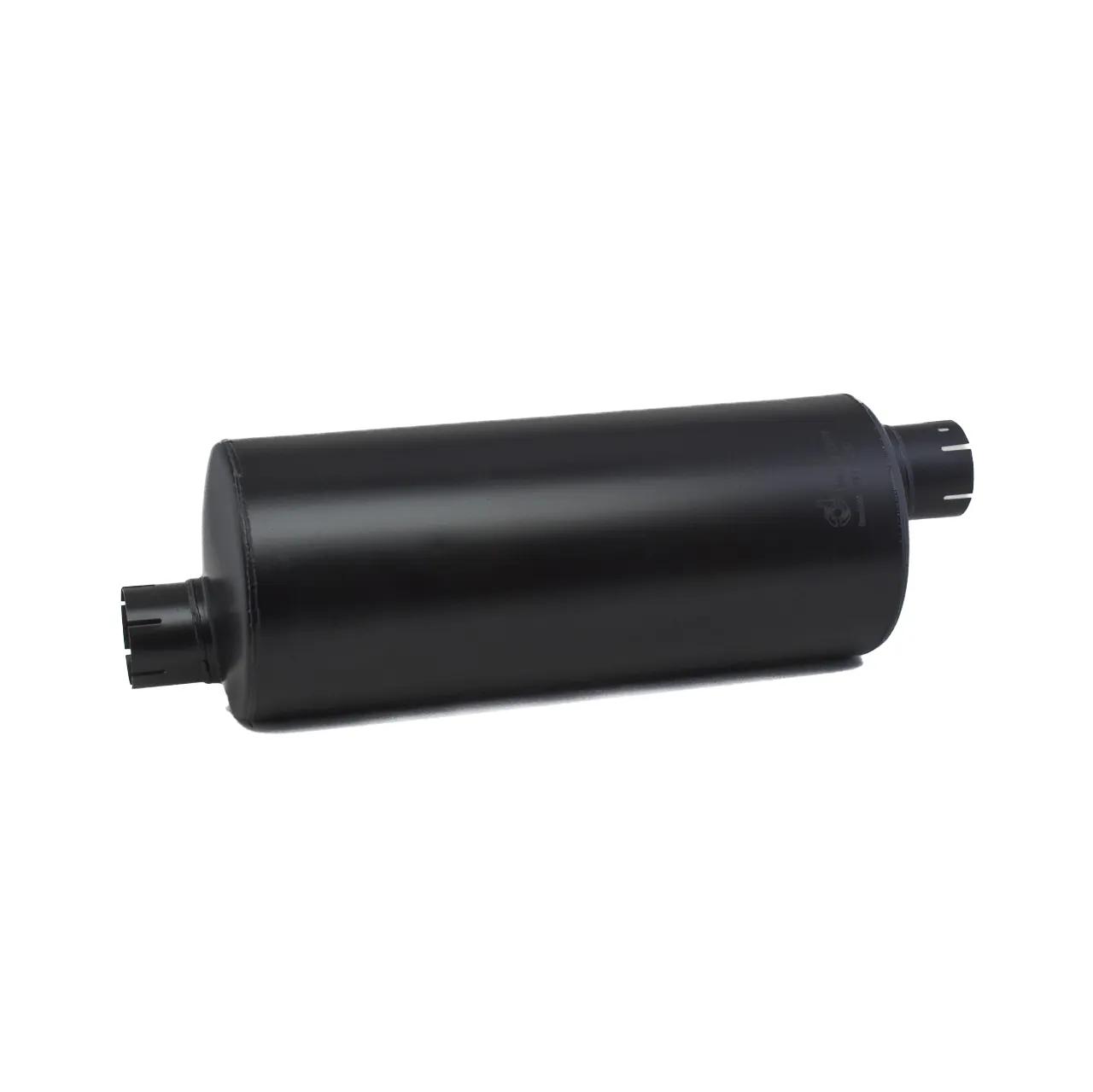

Muffler, Le: 19-3/4 in
#DONM085408
Features & Benefits
- Donaldson delivers a full line of aftermarket liquid, lube, air, hydraulic, and exhaust system components.
- Products and technology designed to consistently meet required specifications – and your expectations.
- Superior performance in thousands of on- and off-road applications.
Specifications
| Plage basse d'atténuation | 12 dBA |
| Gamme haute d'atténuation | 18 dBA |
| Gamme haute de contre-pression (métrique) | 51 mm HG |
| Gamme haute de contre-pression | 2,01 po HG |
| Plage basse de contre-pression | 0,98 po HG |
| Contre-pression milieu de gamme | 2,01 po HG |
| Contre-pression basse gamme (métrique) | 25 mm HG |
| Contre-pression milieu de gamme (métrique) | 51 mm HG |
| Diamètre du corps | 8-1/2 po (21,59 cm) |
| Longueur du corps | 20 po (50,8 cm) |
| Diamètre | 8-15/32 po (21,52 cm) |
| Plage de diamètre | 3 à 4 po |
| Position de l'horloge d'entrée | 6:00 |
| Diamètre d'entrée | 3 in (7.62 cm) |
| Length | 19-3/4 po (50,17 cm) |
| Outlet Clock Position | 12:00 |
| Outlet Diameter | 3 po (7,62 cm) |
| Overall Length | 26-1/2 po (67,31 cm) |
| Rated Flow High Range | 882 cfm (25 m³/min) |
| Rated Flow Low Range | 636 pi³/min (18 m³/min) |
| Rated Flow Mid Range | 882 pi³/min (25 m³/min) |
| Length Range | 19 à 20 po |
| Style | Style 2 |
Interchanges & Equivalent parts:
| M085408 |
| 201561N |
| 900426 |
| DN M085408 |
| DN M085408 |
| 2191-M085408 |
| DCM085408 |
| DONM085408 |
| 22636 |
