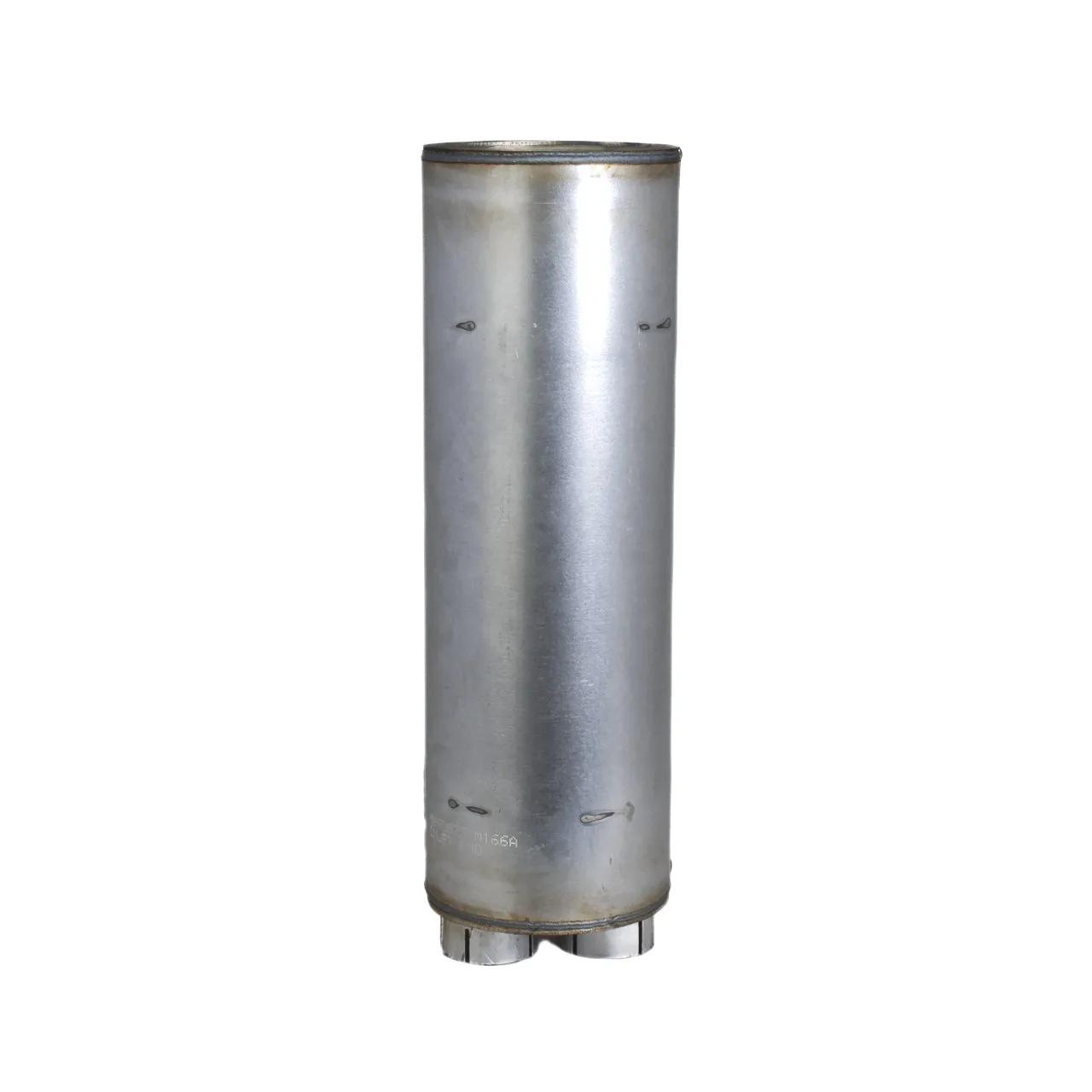

Muffler, Le: 20 in
#DONM065073
Product Overview
Why Choose Donaldson?
Features & Benefits
- Donaldson delivers a full line of aftermarket liquid, lube, air, hydraulic, and exhaust system components.
- Products and technology designed to consistently meet required specifications – and your expectations.
- Superior performance in thousands of on- and off-road applications.
Specifications
| Plage basse d'atténuation | 15 dBA |
| Gamme haute d'atténuation | 20 dBA |
| Gamme haute de contre-pression (métrique) | 76 mm HG |
| Gamme haute de contre-pression | 2,99 po HG |
| Plage basse de contre-pression | 0,98 po HG |
| Back Pressure Mid Range | 2,01 po HG |
| Back Pressure Low-Range (Metric) | 25 mm HG |
| Back Pressure Mid-Range (Metric) | 51 mm HG |
| Body Diameter | 6-39/64 po (16,79 cm) |
| Body Length | 20 po (50,8 cm) |
| Inlet Clock Position | 6:00 |
| Inlet Diameter | 2-1/2 in (6.35 cm) |
| Length | 20 po (50,8 cm) |
| Outlet Clock Position | 12:00 |
| Outlet Diameter | 2-1/2 po (6,35 cm) |
| Overall Length | 21-1/2 po (54,61 cm) |
| Rated Flow High Range | 716.89 cfm (20.3 m³/min) |
| Rated Flow Low Range | 413,18 pi³/min (11,7 m³/min) |
| Rated Flow Mid Range | 716,89 pi³/min (20,3 m³/min) |
| Length Range | 20 à 21 po |
| Style | Style 5 |
Interchanges & Equivalent parts:
| NM065073 |
| 2797478 |
| 12466144 |
| 31242 |
| 12470842 |
| 46634150 |
| RM46634150 |
| RM4664150 |
| 43846716 |
| DCM065073 |
| 10837799 |
| 37799X |
| 2403783 |
| 8275035 |
| 31242HDM |
| DN M065073 |
| DN M065073 |
| 2191-M065073 |
| 6224934 |
| DONM065073 |
