Muffler, Le: 26 in
#DONM120747
Product Overview

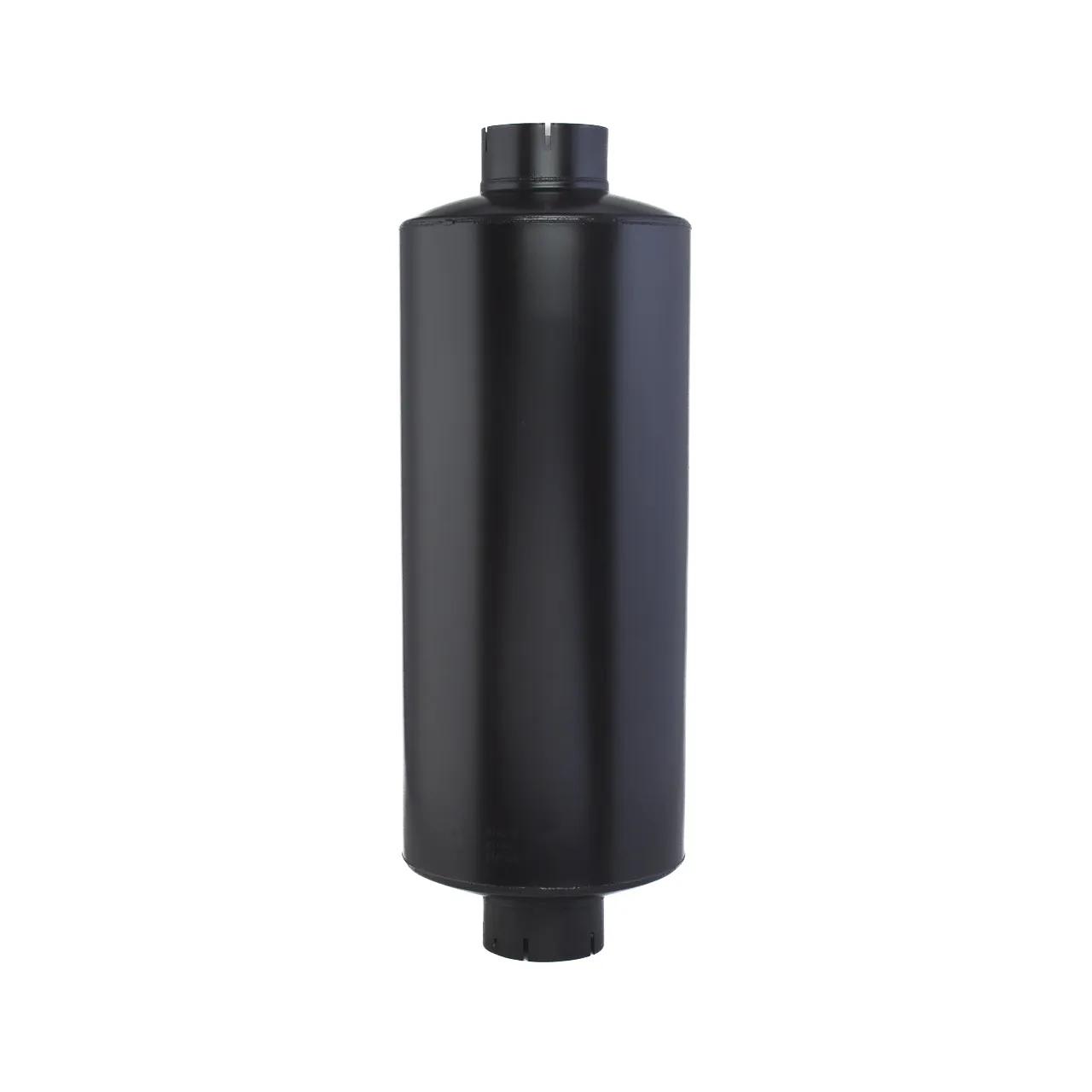

MUFFLER, ROUND STYLE 1
Features & Benefits
- Donaldson delivers a full line of aftermarket liquid, lube, air, hydraulic, and exhaust system components.
- Products and technology designed to consistently meet required specifications – and your expectations.
- Superior performance in thousands of on- and off-road applications.
Specifications
| Plage basse d'atténuation | 12 dBA |
| Gamme haute d'atténuation | 18 dBA |
| Gamme haute de contre-pression (métrique) | 76 mm HG |
| Gamme haute de contre-pression | 2,99 po HG |
| Plage basse de contre-pression | 0,98 po HG |
| Contre-pression milieu de gamme | 2,01 po HG |
| Contre-pression basse gamme (métrique) | 25 mm HG |
| Contre-pression milieu de gamme (métrique) | 51 mm HG |
| Diamètre du corps | 12 po (30,48 cm) |
| Longueur du corps | 25-63/64 po (66 cm) |
| Inlet Diameter | 5 in (12.7 cm) |
| Length | 26 po (66,04 cm) |
| Outlet Diameter | 5 po (12,7 cm) |
| Overall Length | 34 po (86,36 cm) |
| Rated Flow High Range | 2447,31 pi³/min (69,3 m³/min) |
| Rated Flow Low Range | 1762,2 pi³/min (49,9 m³/min) |
| Rated Flow Mid Range | 2447.31 cfm (69.3 m³/min)[delete] |
| Length Range | 25 à 26 po |
| Style | Modèle 1 |
Interchanges & Equivalent parts:
| 201575N |
| DN M120747 |
| DN M120747 |
| 2191-M120747 |
| DCM120747 |
| DONM120747 |
