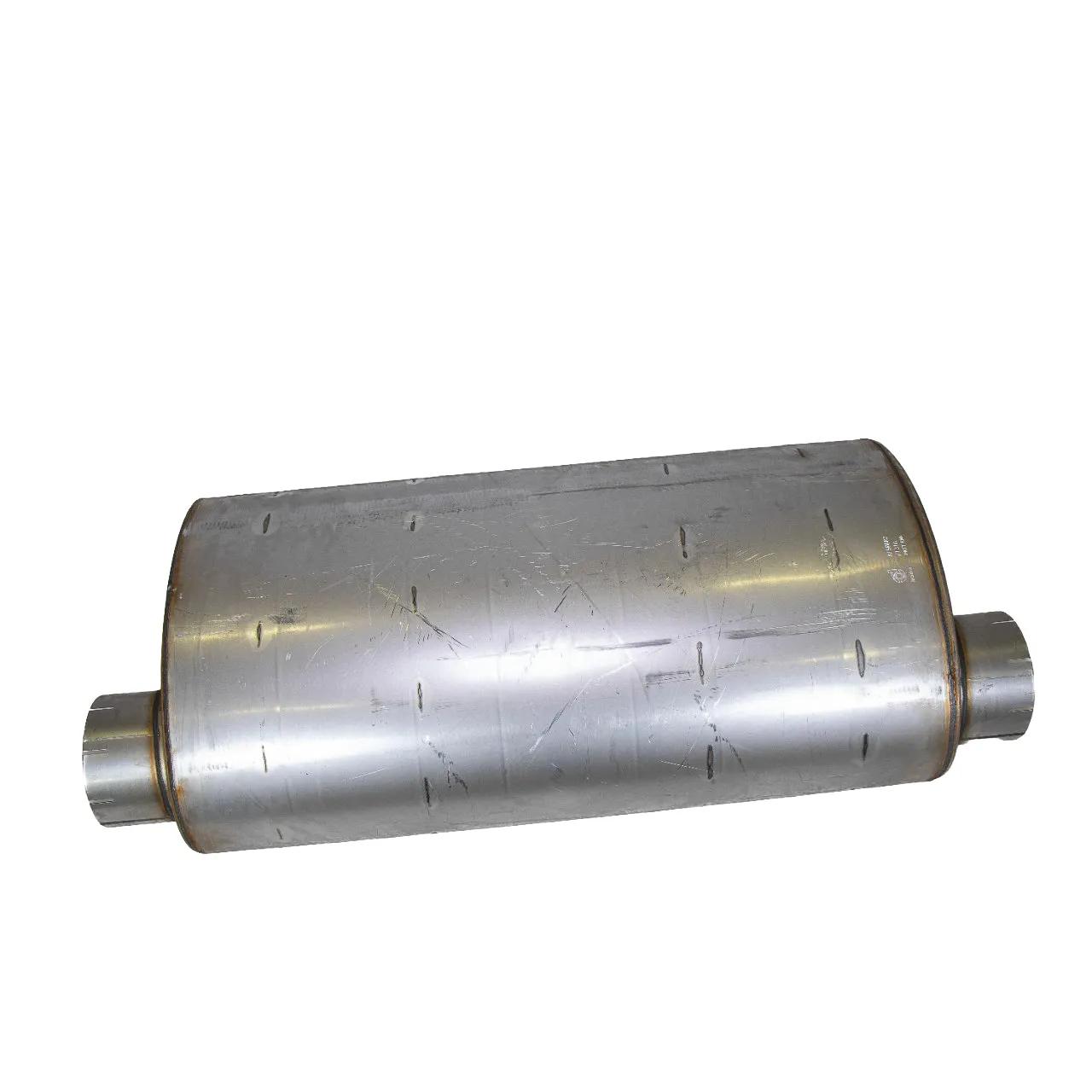

Muffler, Le: 3-3/4 ft
#DONM190002
Features & Benefits
- Donaldson delivers a full line of aftermarket liquid, lube, air, hydraulic, and exhaust system components.
- Products and technology designed to consistently meet required specifications – and your expectations.
- Superior performance in thousands of on- and off-road applications.
Specifications
| Attenuation Low Range | 11 dBA |
| Attenuation High Range | 15 dBA |
| Back Pressure High Range | 2.99 in HG |
| Back Pressure Low Range | 0.98 in HG |
| Back Pressure Mid Range | 2.01 in HG |
| Body Diameter | 15-63/64 in (40.6 cm) |
| Diameter | 24-1/64 in (61.01 cm) |
| Diameter Range | 8 to 9 in |
| Inlet Clock Position | 3:00 |
| Length | 45 in (114.3 cm) |
| Outlet Diameter | 8 in (20.32 cm) |
| Overall Length | 57 in (144.78 cm) |
| Rated Flow High Range | 6349 cfm (179,8 m³/min) |
| Rated Flow Low Range | 3666 cfm (103,8 m³/min) |
| Rated Flow Mid Range | 5184,2 cfm (146,8 m³/min) |
| Length Range | 40 to 50 in |
| Style | Style 2 |
Interchanges & Equivalent parts:
| M190002 |
| 842434 |
| 3650 |
| 3650Q |
| 3016051005 |
| 9N8185 |
| 42762 |
| 26927240 |
| PB1913 |
| 9575M190002 |
| 31211 |
| DCM190002 |
| 4102049 |
| 4185027 |
| 536968 |
| 5369680 |
| 29323090 |
| 27Q564 |
| P3422043 |
| 1036008 |
| 810354 |
| DN M190002 |
| DN M190002 |
| 00810354 |
| 004013453000 |
| 020566002 |
| 2191-M190002 |
| 31211HDM |
| DONM190002 |
| 4013453000 |
| 20566002 |
