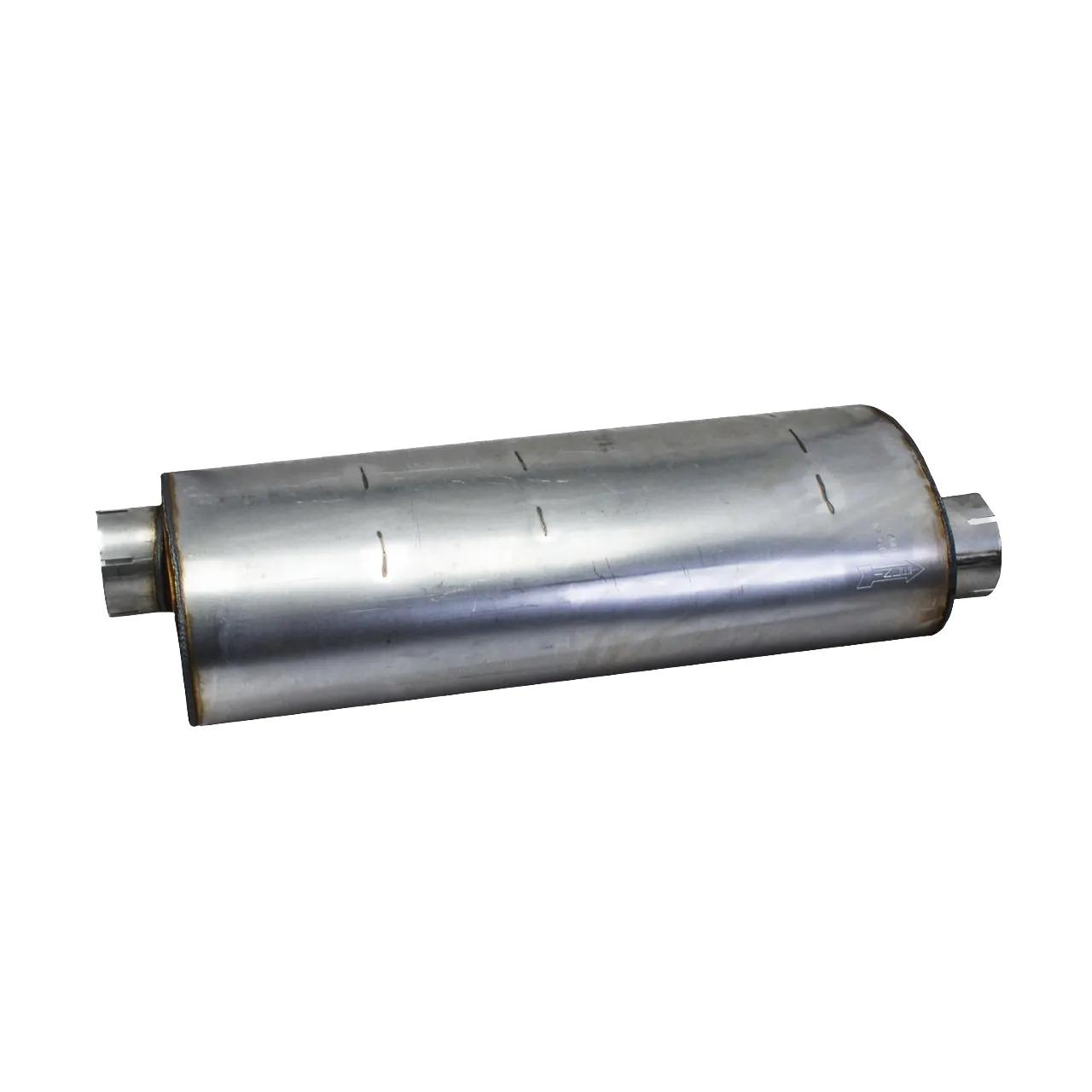

Muffler, Le: 3 ft

#DONM120365

Product Overview

Why Choose Donaldson?

Donaldson delivers a full line of aftermarket liquid, lube, air, hydraulic, and exhaust system components.

Products and technology designed to consistently meet required specifications – and your expectations.

Attenuation Low Range	15 dBA
Attenuation High Range	20 dBA
Back Pressure High-Range (Metric)	76 mm HG
Back Pressure High Range	2,99 po HG
Back Pressure Low Range	0,98 po HG
Back Pressure Mid Range	2,01 po HG
Back Pressure Low-Range (Metric)	25 mm HG
Back Pressure Mid-Range (Metric)	51 mm HG
Body Diameter	10 po (25,4 cm)
Body Diameter Max	15 po (38,1 cm)
Body Length	35-63/64 po (91,4 cm)
Inlet Clock Position	6:00
Inlet Diameter	5 in (12.7 cm)
Length	36 po (91,44 cm)
Outlet Clock Position	12:00
Outlet Diameter	5 po (12,7 cm)
Overall Length	42-1/2 po (107,95 cm)
Rated Flow High Range	215,42 pi³/min (6,1 m³/min)
Rated Flow Low Range	1306,64 pi³/min (37 m³/min)
Rated Flow Mid Range	215.42 cfm (6.1 m³/min)[delete]
Length Range	35 à 36 po
Style	Style 2
