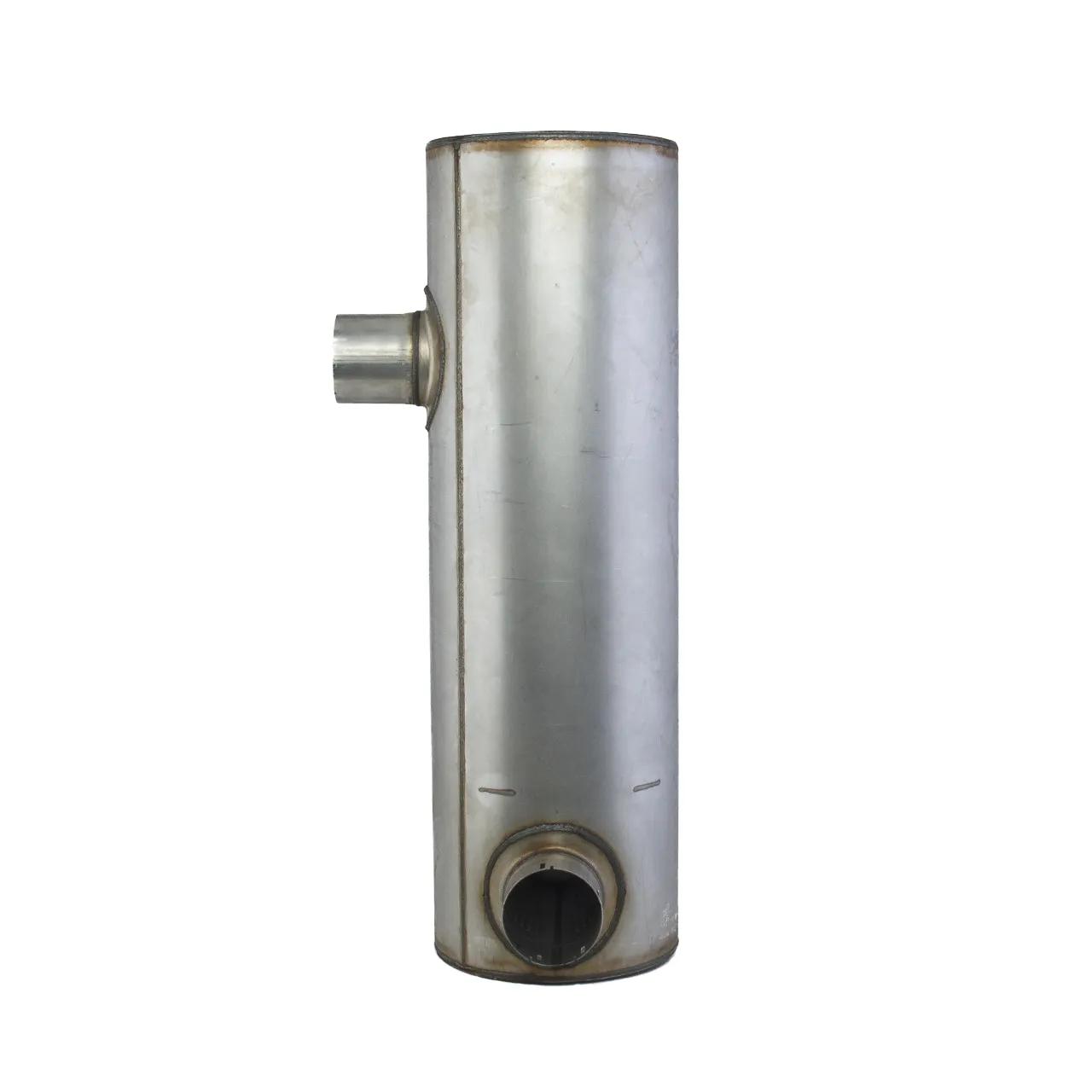

Muffler, Le: 35-1/2 in
#DONM111026
Product Overview
MUFFLER, ROUND STYLE 6
Features & Benefits
- Donaldson delivers a full line of aftermarket liquid, lube, air, hydraulic, and exhaust system components.
- Products and technology designed to consistently meet required specifications – and your expectations.
- Superior performance in thousands of on- and off-road applications.
Specifications
| Attenuation Low Range | 15 dBA |
| Attenuation High Range | 20 dBA |
| Back Pressure High-Range (Metric) | 76 mm HG |
| Back Pressure High Range | 2.99 in HG |
| Back Pressure Low Range | 0.98 in HG |
| Back Pressure Mid Range | 2.01 in HG |
| Back Pressure Low-Range (Metric) | 25 mm HG |
| Back Pressure Mid-Range (Metric) | 51 mm HG |
| Body Diameter | 10-63/64 in (27.9 cm) |
| Body Length | 35-63/64 in (91.4 cm) |
| Diameter | 11-5/64 in (28.14 cm) |
| Diameter Range | 4 to 5 in |
| Inlet Clock Position | 12:00 |
| Inlet Diameter | 4 in (10.16 cm) |
| Length | 35-1/2 in (90.17 cm) |
| Outlet Clock Position | 9:00 |
| Outlet Diameter | 4 in (10.16 cm) |
| Overall Length | 36 in (91.44 cm) |
| Rated Flow High Range | 1886 cfm (53,41 m³/min) |
| Rated Flow Low Range | 1088 cfm (31 m³/min) |
| Rated Flow Mid Range | 1886 cfm (53,41 m³/min)[delete] |
| Length Range | 35 to 36 in |
| Style | Style 6 |
Interchanges & Equivalent parts:
| 1901314 |
| DNM111026 |
| 3587471 |
| 2191-M111026 |
| DN M111026 |
| DN M111026 |
| 15026229 |
| DCM111026 |
| DONM111026 |
