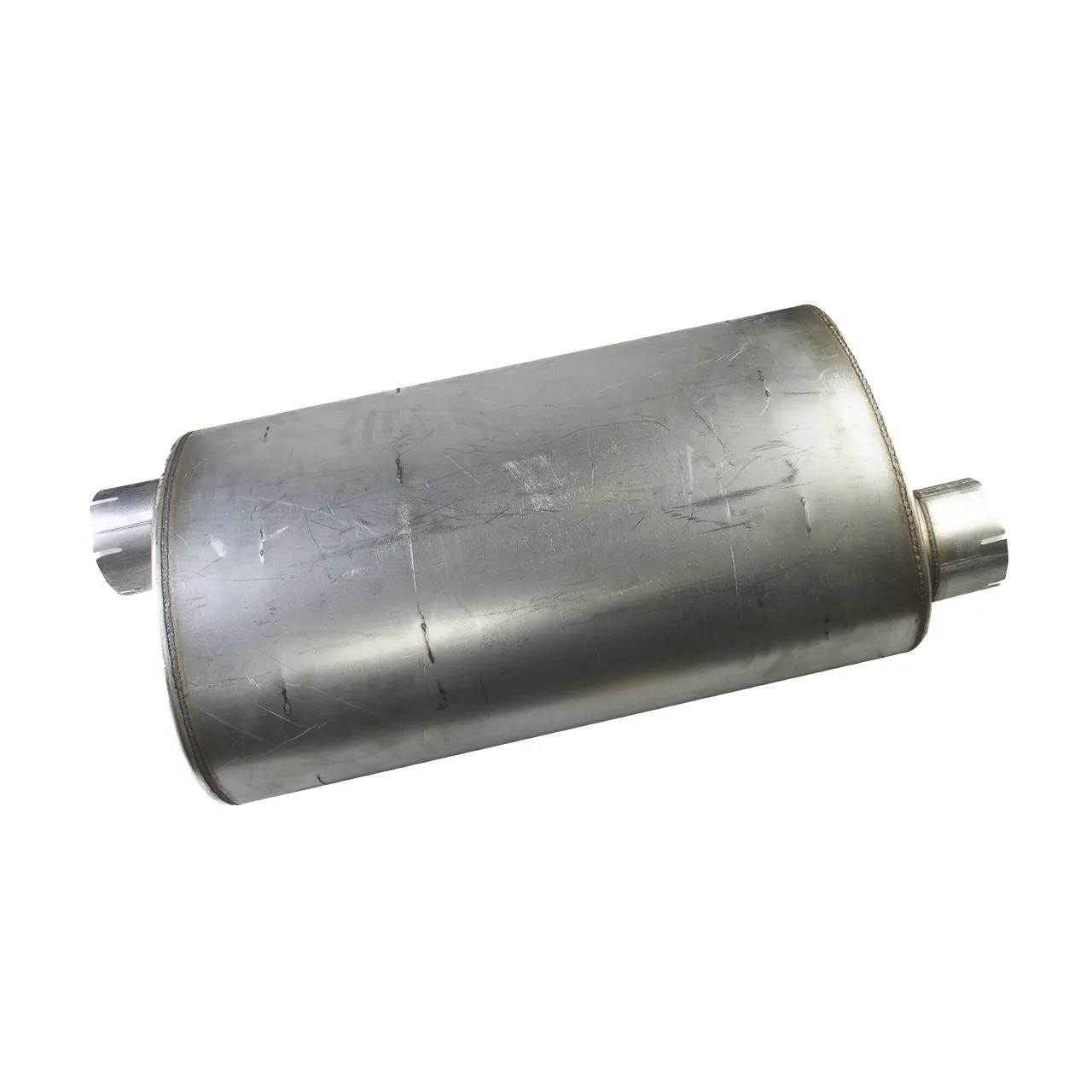

Muffler, Le: 35 in
#DONM170101
Features & Benefits
- Donaldson delivers a full line of aftermarket liquid, lube, air, hydraulic, and exhaust system components.
- Products and technology designed to consistently meet required specifications – and your expectations.
- Superior performance in thousands of on- and off-road applications.
Specifications
| Attenuation Low Range | 12 dBA |
| Attenuation High Range | 18 dBA |
| Back Pressure High-Range (Metric) | 76 mm HG |
| Back Pressure High Range | 2.99 in HG |
| Back Pressure Low Range | 0.98 in HG |
| Back Pressure Mid Range | 2.01 in HG |
| Back Pressure Low-Range (Metric) | 25 mm HG |
| Back Pressure Mid-Range (Metric) | 51 mm HG |
| Body Diameter | 14-1/64 in (35.61 cm) |
| Body Diameter Max | 20-63/64 in (53.3 cm) |
| Body Length | 35 in (88.9 cm) |
| Inlet Clock Position | 3:00 |
| Inlet Diameter | 6 in (15.24 cm) |
| Length | 35 in (88.9 cm) |
| Outlet Clock Position | 9:00 |
| Outlet Diameter | 6 in (15.24 cm) |
| Overall Length | 47 in (119.38 cm) |
| Rated Flow High Range | 4110.63 cfm (116.4 m³/min) |
| Rated Flow Low Range | 2373.15 cfm (67.2 m³/min) |
| Rated Flow Mid Range | 4110.63 cfm (116.4 m³/min)[delete] |
| Length Range | 35 to 36 in |
| Style | Style 2 |
Interchanges & Equivalent parts:
| M170101 |
| 41B590490P1 |
| 3649 |
| 3649Q |
| 3014051362 |
| 1615793200 |
| 1G8122 |
| 1517516 |
| 4013287000 |
| 413287 |
| 26950440 |
| PB1481 |
| 89487 |
| 69008774 |
| D2NM0M170101 |
| 364406 |
| 202SPT063 |
| HD4095 |
| 31209 |
| 23207269 |
| 52266152 |
| 56936396 |
| DCM170101 |
| 519020014 |
| 51910214 |
| 420V6300 |
| 2ME235 |
| 10038G |
| 2683331000 |
| 2690019 |
| 2370035 |
| 225029 |
| P3421291 |
| 0644LL1001 |
| 405094 |
| 9079368 |
| 911613 |
| 51503 |
| 2512224 |
| M2512224 |
| 810352 |
| 09079368 |
| 00810352 |
| 004013287000 |
| DN M170101 |
| DN M170101 |
| 001487001 |
| 11209 |
| 2191-M170101 |
| 31209HDM |
| 808164 |
| 911753 |
| DONM170101 |
