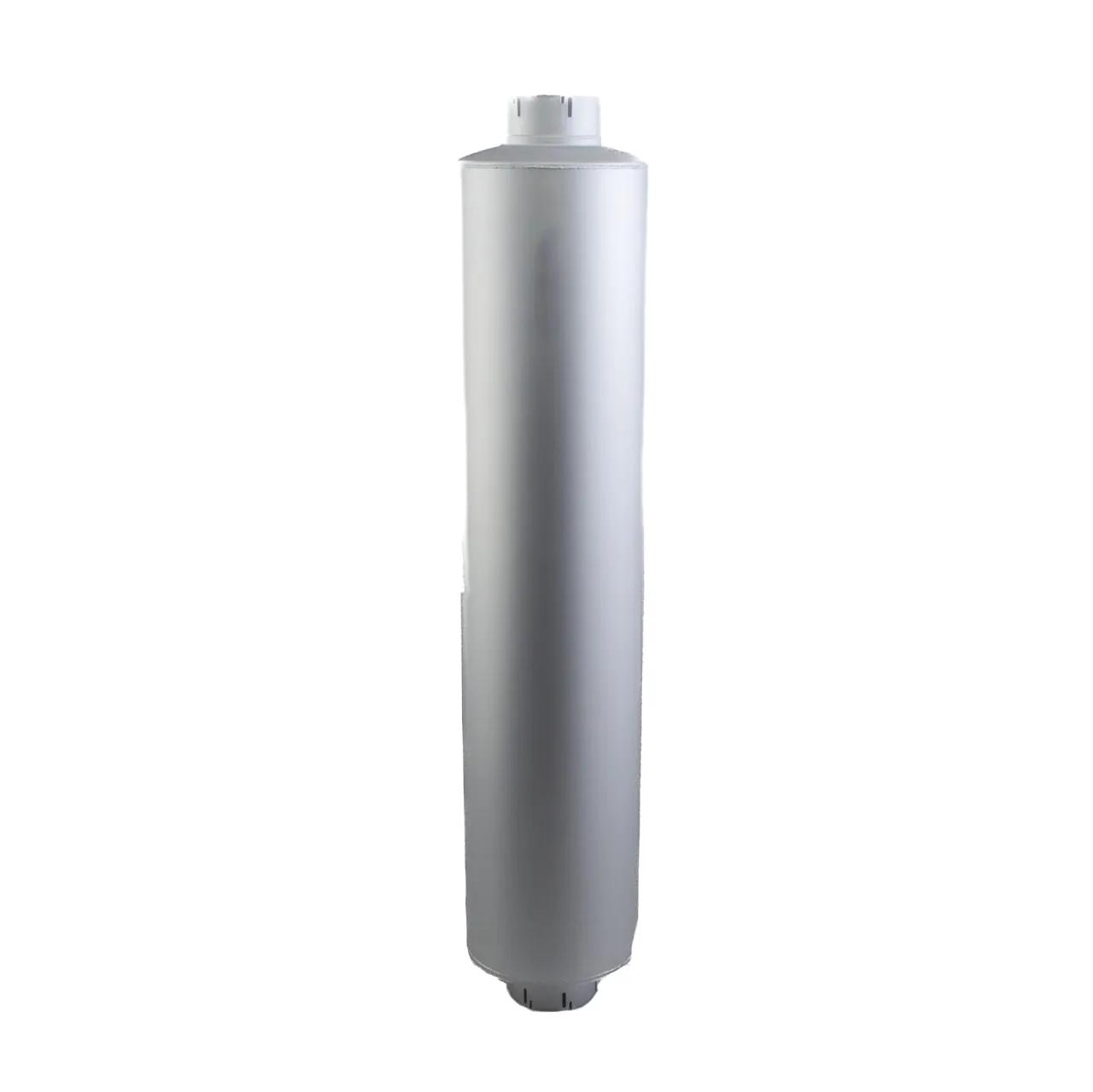

Muffler, Le: 5-5/64 in
#DONM101182
Product Overview
MUFFLER, ROUND STYLE 1 SILENT PARTNER
Features & Benefits
- Donaldson delivers a full line of aftermarket liquid, lube, air, hydraulic, and exhaust system components.
- Products and technology designed to consistently meet required specifications – and your expectations.
- Superior performance in thousands of on- and off-road applications.
Specifications
| Attenuation Low Range | 15 dBA |
| Attenuation High Range | 20 dBA |
| Body Diameter | 10 in (25.4 cm) |
| Body Length | 44-29/64 in (112.92 cm) |
| Diameter | 10-5/64 in (25.6 cm) |
| Diameter Range | 5 to 6 in |
| Inlet Diameter | 5 in (12.7 cm) |
| Length | 5-5/64 in (12.9 cm) |
| Outlet Diameter | 5 in (12.7 cm) |
| Overall Length | 51 in (129.54 cm) |
| Length Range | 5 to 6 in |
| Style | Style 1 |
| Type | Special |
Interchanges & Equivalent parts:
| M101182 |
| 4207 |
| 685946 |
| 230013474 |
| DNM101182 |
| D45000266 |
| 3095900 |
| DN M101182 |
| DN M101182 |
| 2191-M101182 |
| 22981 |
| DCM101182 |
| DONM101182 |
