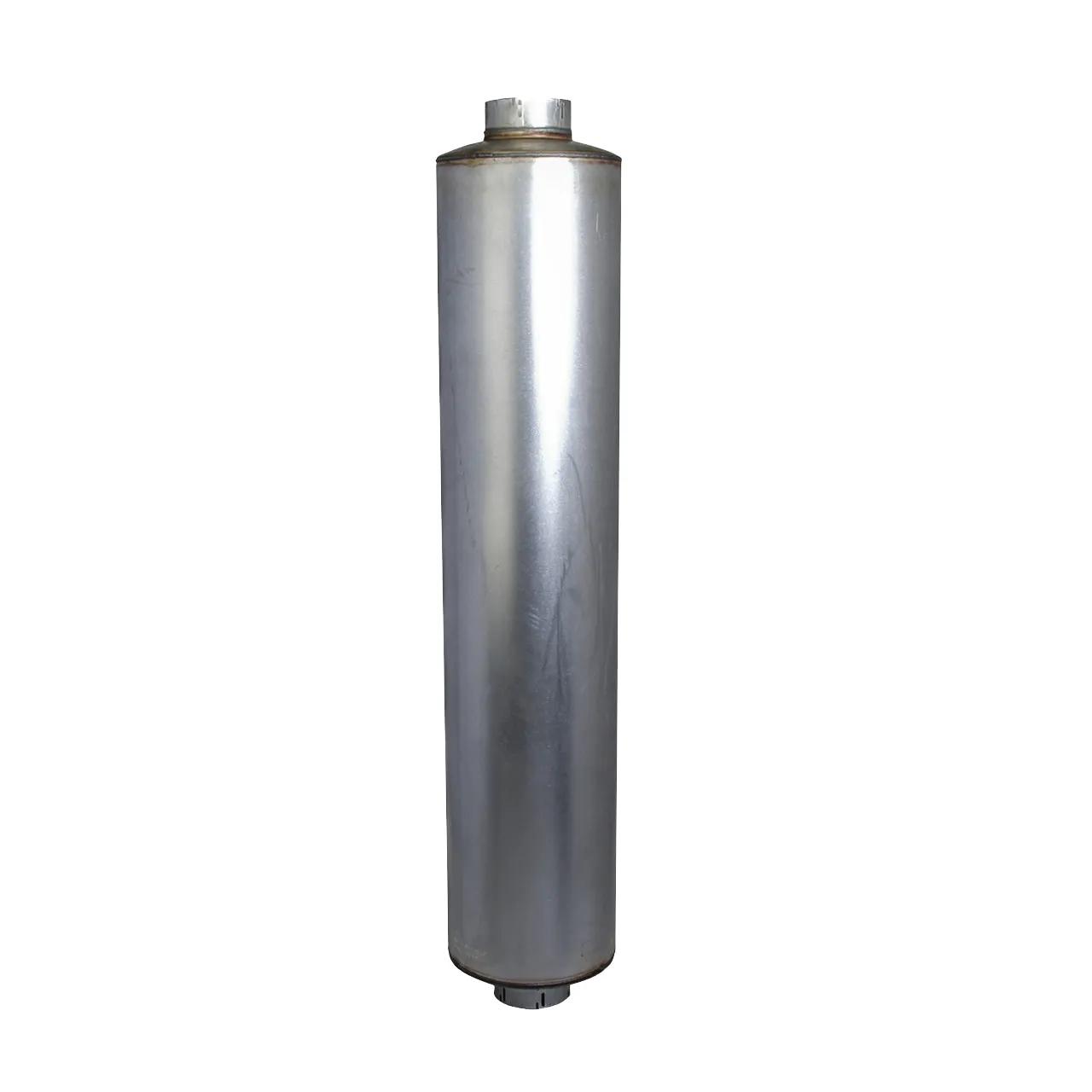

Muffler, Le: 50-1/2 in
#DONM110143
Features & Benefits
- Donaldson delivers a full line of aftermarket liquid, lube, air, hydraulic, and exhaust system components.
- Products and technology designed to consistently meet required specifications – and your expectations.
- Superior performance in thousands of on- and off-road applications.
Specifications
| Attenuation Low Range | 19 dBA |
| Attenuation High Range | 25 dBA |
| Back Pressure High-Range (Metric) | 76 mm HG |
| Back Pressure High Range | 2.99 in HG |
| Back Pressure Low Range | 0.98 in HG |
| Back Pressure Mid Range | 2.01 in HG |
| Back Pressure Low-Range (Metric) | 25 mm HG |
| Back Pressure Mid-Range (Metric) | 51 mm HG |
| Body Diameter | 10-63/64 in (27.9 cm) |
| Body Length | 50-33/64 in (128.32 cm) |
| Diameter | 11-1/16 in (28.11 cm) |
| Diameter Range | 5 to 6 in |
| Inlet Diameter | 5 in (12.7 cm) |
| Length | 50-1/2 in (128.27 cm) |
| Outlet Diameter | 5 in (12.7 cm) |
| Overall Length | 57 in (144.78 cm) |
| Rated Flow High Range | 2201 cfm (62,33 m³/min) |
| Rated Flow Low Range | 1300 cfm (37 m³/min) |
| Rated Flow Mid Range | 2201 cfm (62,33 m³/min)[delete] |
| Length Range | More than 50 in |
| Style | Style 1 |
Interchanges & Equivalent parts:
| M110143 |
| DNM110143 |
| 31143 |
| DCM110143 |
| 1413972 |
| MFM110143 |
| DNMFM110143 |
| DN M110143 |
| DN M110143 |
| 2191-M110143 |
| 31143HDM |
| DONM110143 |
