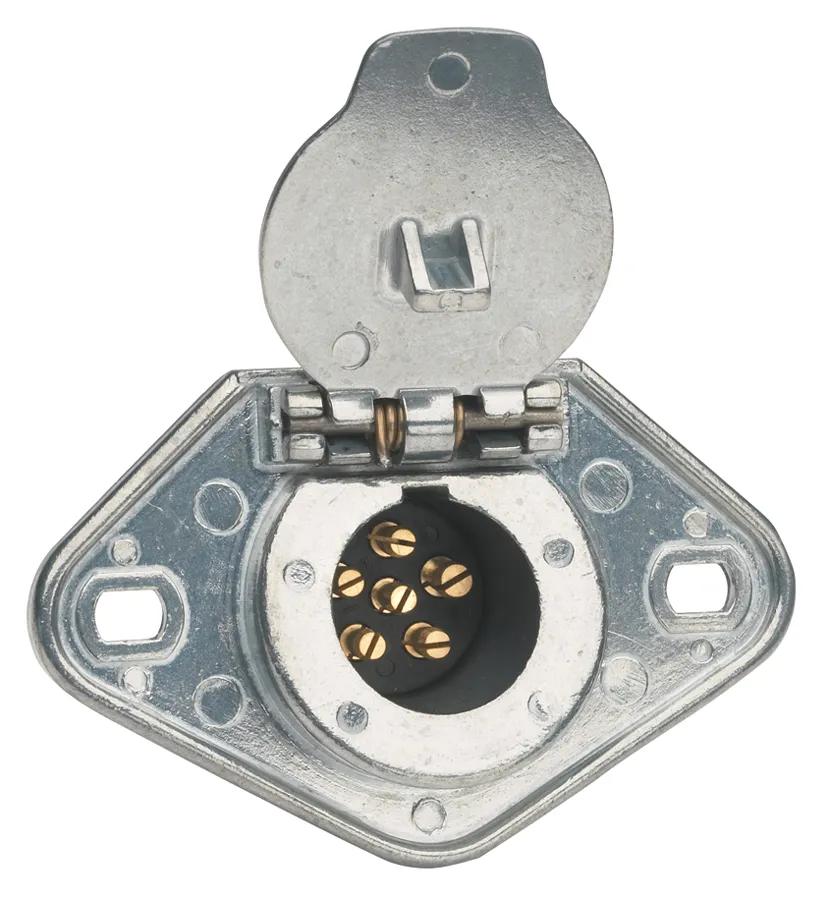

Socket - 6 Pin - Zinc Die-Cast Heavy Duty Wire Insertion
#PHI15-600
Product Overview
StaDry sockets have sealed inner cavities to prevent contaminants from passing to wiring harness and resist magnesium chloride, salt, oil, grease, and fuels. The socket is slanted 5 degrees for moisture drainage, ensuring reliable performance in harsh environments.Wire Insertion Socket, Split Pin, Zinc Die-Cast, 6 Pins
Features & Benefits
- Closed back design
- Elongated holes for mounting adaptability
- Full-opening lid
- Heavy-duty, zinc die-cast housing for durability
- Reduce exposure to contaminants and moisture, use socket boot P/N 15-640
- Stainless steel hinge pin and spring for long life
Specifications
| Material | Zinc Die-Cast |
| Packaging | Bulk / Boxed |
| Type | Heavy Duty Split Pin 6-Way Connector |
| UPC | 621935000752 |
| Mounting Type | Elongated Holes |
| Number of Pins | 6 |
| Product Category | Wire Insertion Socket |
| Quantity | 1 |
Interchanges & Equivalent parts:
| 82-1016 |
| 15600-PI |
| 2906S |
| 8498-15600 |
| 89003-0009 |
| CM6WS |
| EL23602 |
| PH15-600 |
| PHI15-600 |
| PHL15600 |
| PHM 15 600 |
| PL-15600 |
| RB-15600 |
| SF6WS |
| 1000-ECA62 |
| 38496 |
| 421123 |
| 421136 |
| 670-62TEC |
| 821016 |
| ABP N54A SF6WS |
| BE23602M1D |
| ECA62 |
| GT-3016 |
| PE2620 |
| PE26200 |
| PHI15600 |
| PHL15-600 |
| RC ECA62 |
| WA15-600 |
| 15-600 |
| 310113 |
| W355430 |
