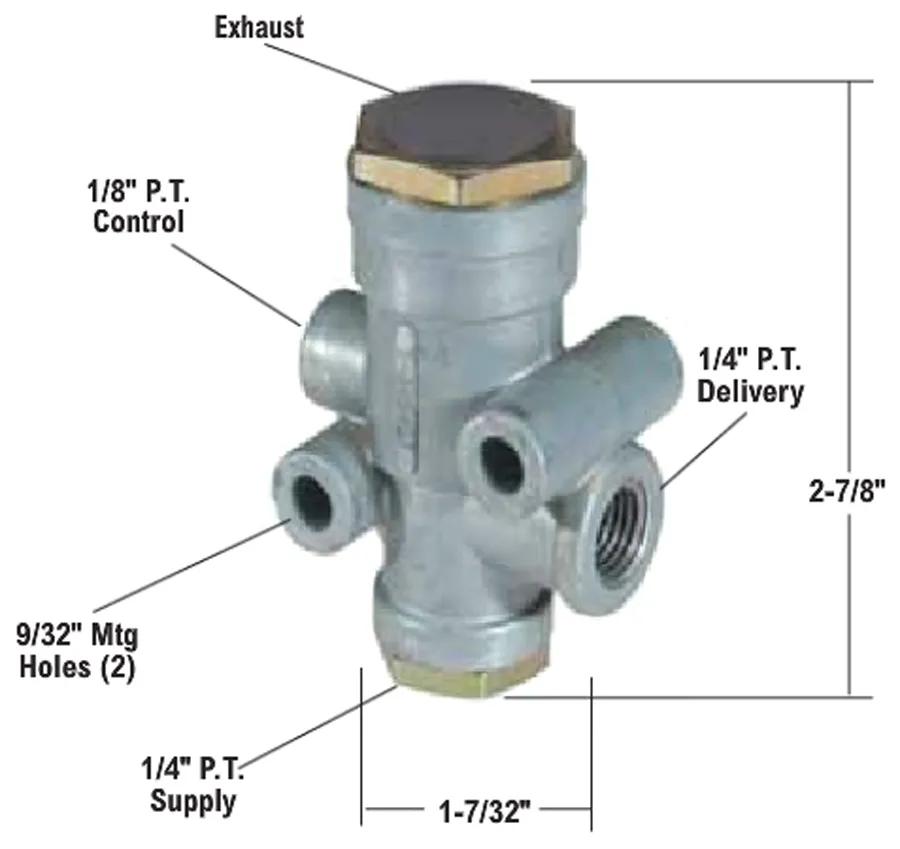

Bendix TR-3 Inversion Valve, 1/4 NPT Inlet, 25 PSI Inlet / 40 PSI Exhaust
#BEN281459N
Product Overview
Inversion Valve, NPT Inlet, 1/4-18 Inlet, -40 °F Temperature Rating, 75.4 mm Height, 49 mm Length, 35.1 mm Width
Features & Benefits
- Manufactured to Meet or Exceed O.E.M. Specifcations in Function, Form & Fit.
- Also Available In Remanufactured Exchange.
Specifications
| Additional Notes | With Control & Supply Pressure, Inlet Opens At "A" P.S.I., Descending Pressure & Exhaust Opens At "b" P.S.I. Ascending Pressure. |
| Air Valve Control Port Size | 1/8 NPT |
| Delivery Port (in.) (1) | 1/4 NPT |
| Exhaust Port Size | 1-1/2 in (3.81 cm) |
| Inlet Pressure | 25 psi |
| Model | TR-3 |
| Mounting Hole Size | 9/32 in (0.71 cm) |
| Mounting Hole Sizes | 9/32 in. |
| New or Remanufactured | New |
| # of Mounting Holes | 2 |
| Outlet Pressure | 40 psi |
| Package Contents | (1) Inversion Valve Per Box |
| Package Quantity | 2.21 lbs (1 kg) |
| Supply Port (in.) (1) | 1/4 NPT |
| Weight | 0.55 lbs (0.25 kg) |
| Working PSI Rating | 25 PSI (Inlet) / 40 PSI (Exhaust) |
Interchanges & Equivalent parts:
| 281459 |
| BEN281459 |
| 6792885 |
| 745-281459N |
| ACA-0765C700 |
| BAN281459N |
| BEN281459N |
| BND281459N |
| BW 281459 |
| BW 281459N |
| BW 281459N |
| BX281459N |
| TWDBEN281459N |
