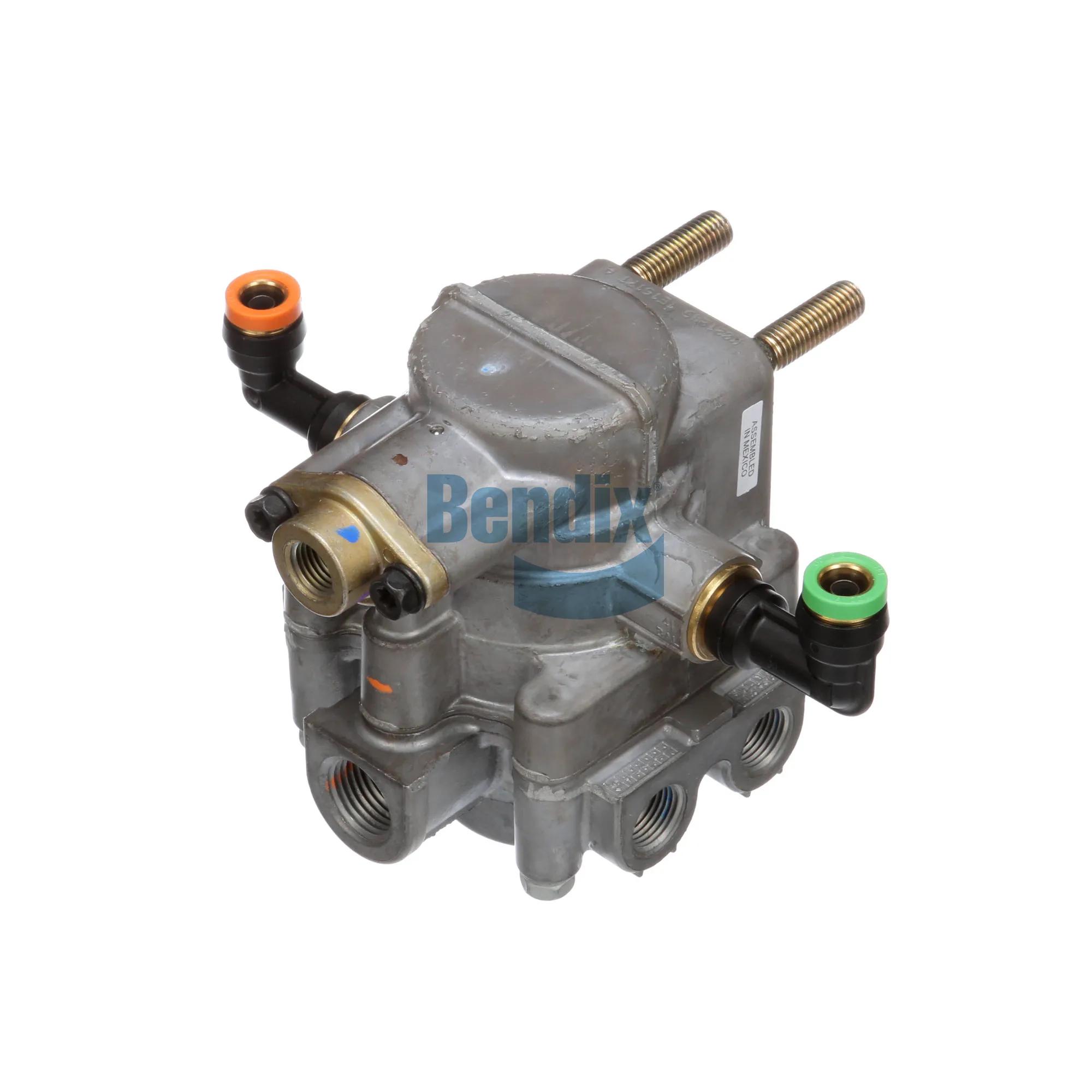

Bendix SR-7 Spring Brake Modulating Valve with 1/2-14 NPT Inlet and Four 3/8-18 NPT Outlets
#BENK021560
Product Overview
Spring Brake Valve, NPT Inlet, NPT Outlet, 1/2-14 Inlet, 3/8-18 x 3/8-18 x 3/8-18 x 3/8-18 Outlet, FMVSS 121 Regulatory Compliance, -40 °F Temperature Rating, 124 mm Height, 187 mm Length, 148 mm Width
Features & Benefits
- Manufactured to Meet or Exceed O.E.M. Specifications in Function, Form & Fit.
- Meets or Exceeds V.M.R.S. # 13-010-048 Requirements.
- Bendix Has Been a Trusted Manufacturer & Supplier to Most Truck & Trailer O.E.M.s for Decades.
- Complies with FMVSS 121 Regulatory Standards.
- Operates reliably in temperatures as low as -40 °F.
Specifications
| Additional Notes | 1/4" NPT Park Control Port. |
| Air Valve Control Port Size | 3/8 PTC |
| Balance Port Size | 3/8 PTC |
| Bendix Style Spring Brake Valve Reservoir Port Size | None |
| Control Port | 90° |
| Delivery Port (in.) (1) | 3/8 NPT |
| Model | SR-7 |
| Mounting | (2) Studs (M10 x 1.38 in.) |
| New or Remanufactured | New |
| Package Contents | (1) Spring Brake Valve Per Box |
| Park Control Port (in.) | 1/4 NPT |
| Reservoir Trip Pressure | None |
| Supply Port (in.) (1) | 1/2 NPT |
| Tractor Control Port Size | (1) 3/8 in. PTC (90 Deg. Fitting) |
| Weight | 3.08 lbs (1.4 kg) |
Interchanges & Equivalent parts:
| 2596561C91 |
| 3821869C92 |
| BANK021560 |
| BW K021560 |
| BW K021560 |
| K021560BXW |
| BENK021560 |
| K021473 |
| 170.K021560 |
| 745-K021560 |
| S-27030 |
| TWDBENK021560 |
| BXK021560 |
