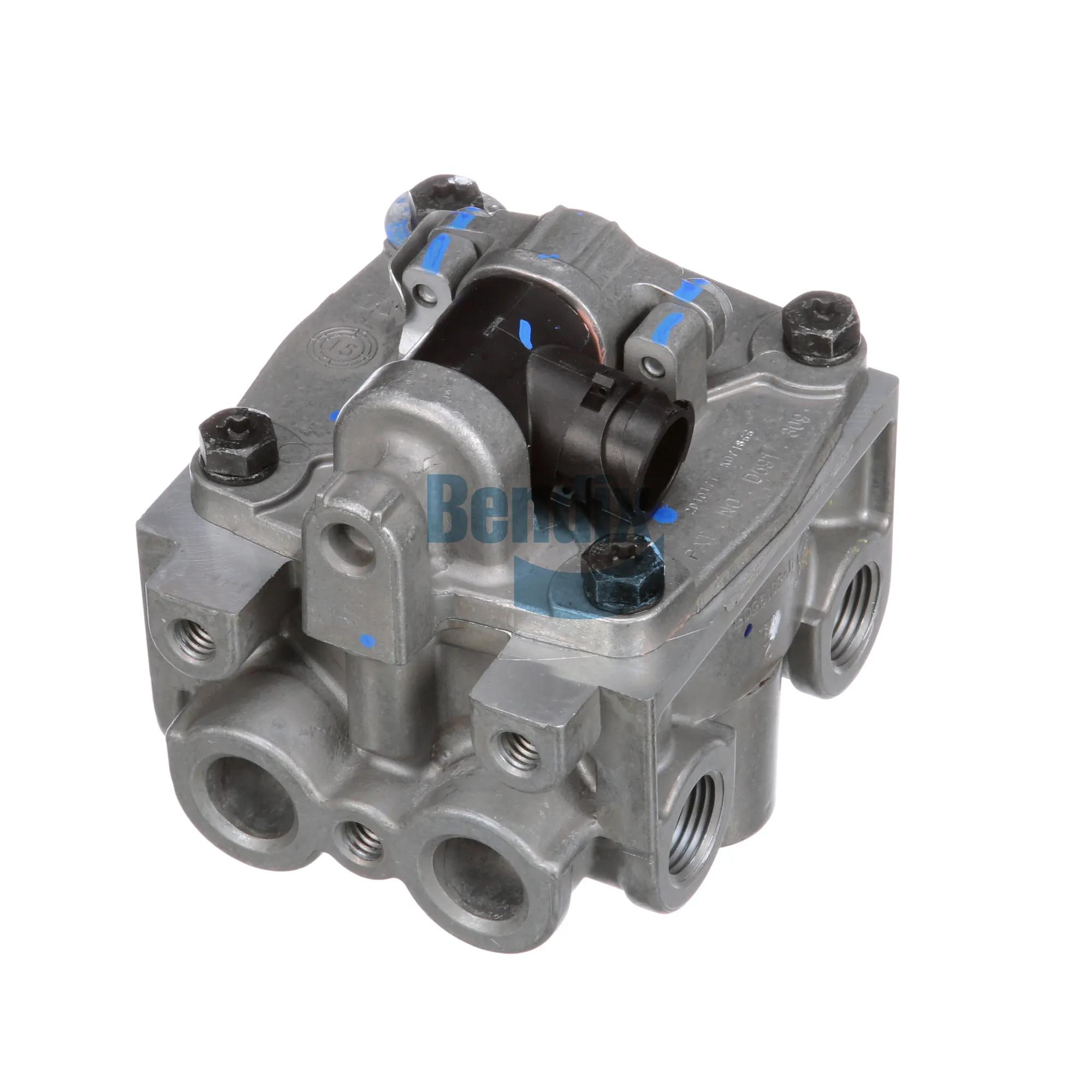

Bendix ATR-6 Traction Relay Valve, 2-Way Circular DIN, 12 Volt, NPT Inlet/Outlet

#BENK078420

Product Overview

Durable ATR-6 traction relay valve designed for maximum performance and reliability in air management systems. Features a 2-way circular DIN design with multiple NPT inlet and outlet ports, suitable for heavy-duty applications.Traction Relay, 2-Way Circular DIN, NPT Inlet, NPT Outlet, 1 Supply/8 Delivery (6H + 2V) Body Configuration, 1/2-14 Inlet, 12 V Nominal, 1/2-14 x 1/2-14 x 1/2-14 x 1/2-14 x 3/8-18 x 3/8-18 Outlet, 5.5 psi Pressure Rating, -40 °F Temperature Rating

Features & Benefits

Crack Pressure: 5.5 PSI

12 Volts

Made with durable material

Specifications

Modèle	ATR-6
Code VMRS	013-011-150
Poids	3,1 lb
Configuration de carrosserie	1 alimentation/8 refoulement (6H + 2V)
Taille de l'entrée	1/2-14
Type d'entrée	NPT
Tension nominale	12 volts
Taille de sortie	1/2-14 x 1/2-14 x 1/2-14 x 1/2-14 x 3/8-18 x 3/8-18
Type de sortie	NPT
Pressure Rating	5,5 psi
Temperature Rating	-40 °F
Type	DIN circulaire à 2 voies
Product Category	Relais de traction

Interchanges & Equivalent parts:

85135349

K078420
