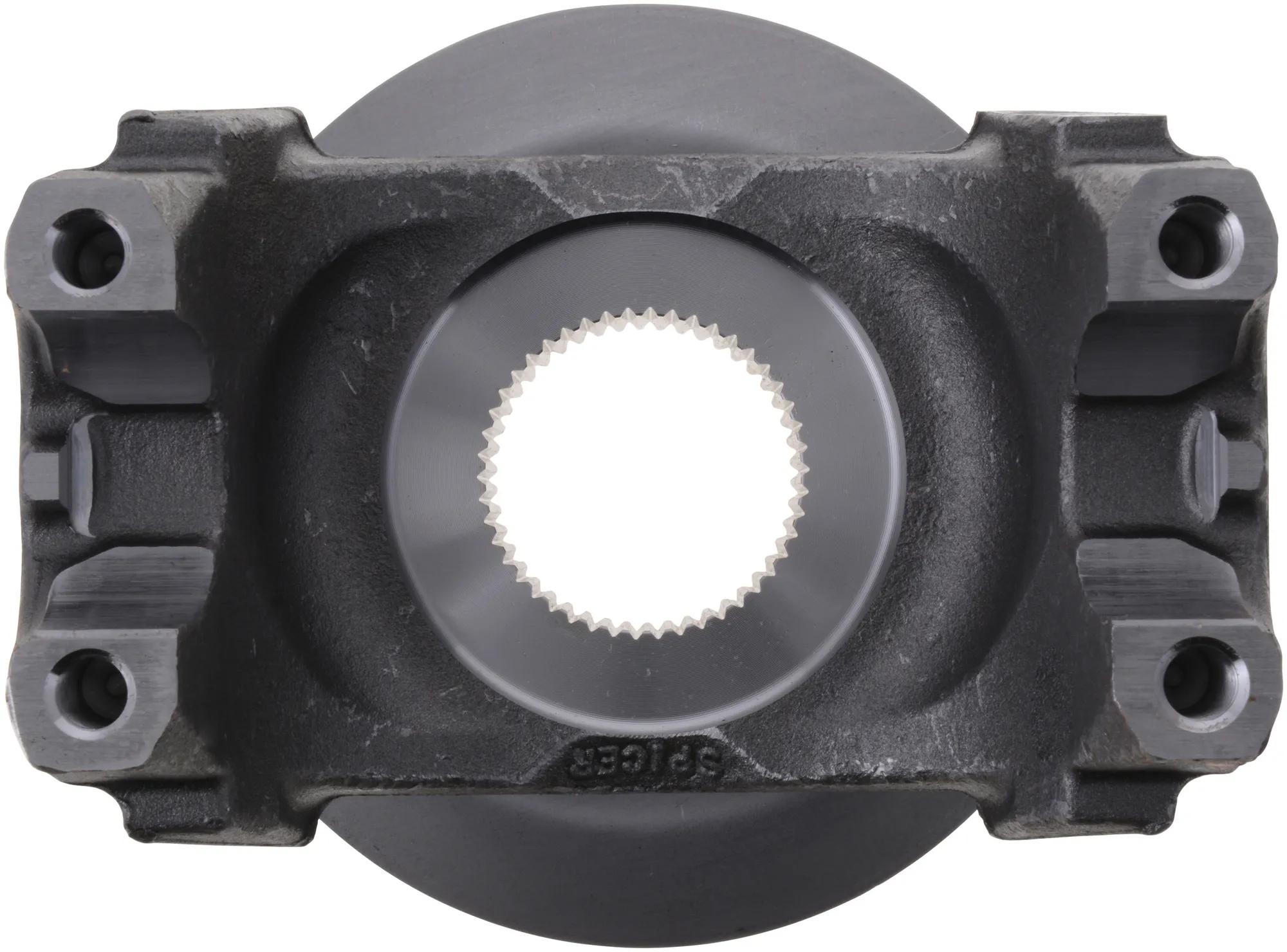

Spicer 1810 Series Splined Hole Differential End Yoke, Steel, HR Style, 3.25 in Hub Diameter
#SPI6.5-4-3731-1X
Product Overview
Demand genuine Spicer with all the components needed for the repair. Dana design, engineering, testing, and manufacturing processes all work in conjunction to ensure unparalleled performance that non-genuine parts simply cannot deliver.Differential End Yoke, Splined Hole, Steel, 0.14 in C-Bore Depth, 5.156 in Center Line to End Hub, 3.250 in Hub Dia, 2.312 in Length Thru Hole, 7.643 in Outside Yoke, 1810, 46 Spline Count, 1.938 in Yoke Bearing Dimension, HR Yoke, 2.39 in Length
Specifications
| Bearing Cap Diameter | 1-15/16 in |
| C-Bore Depth | 0.14 |
| Center Line to End of Hub | 5-5/32 in |
| Hub Diameter | 3-1/4 in |
| Includes Slinger/Plug | Yes |
| Involute Spline | Yes |
| Length | 2.39 in |
| Material | Steel |
| Quantity | 1 |
| Series | 1810 |
| Spline Count | 46 |
| Spline Diameter | 2-25/64 in |
| Type | Splined Hole |
| VMRS Code | 22003072 |
| Weight | 15.12 lb |

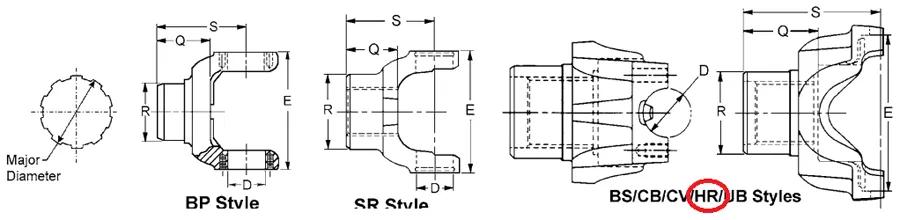

| Yoke Style | HR |
| Yoke Type | Winged |
| Center Line to End Hub | 5.156 in |
| Length Thru Hole | 2.312 in |
| Outside Yoke Dimension | 7.643 in |
| Yoke Bearing Dimension | 1.938 in |
| Product Category | Differential End Yoke |
Interchanges & Equivalent parts:
| 181MU 51P24 |
| 2104-65437311X |
| 65437311X-SP |
| E65437311X |
| 2010004C91 |
| 65437311X |
| 8076111 |
| SD65437311X |
| SP 6.5 4 3731 1X |
| SP 65437311X |
| TWD65437311X |
| 1666084C91 |
| 18N 4 3731 1X |
| 6.5 4 3731 1X |
| 6.5-4-3731-1XR |
| N6.5-4-3731-1X |
| S-B452 |
