Spicer SPL100 Series Universal Joint, OSR Style, Steel, 1.625 in Bearing Cap Diameter, Greaseable

#SPISPL100-1X

Product Overview

You expect a lot from your vehicle, and Spicer Life Series (SPL) universal joints deliver. SPL universal joints consistently outperform competitors, so you can hit the road or trail with confidence. Experience longer life, increased bearing capacity, and lower maintenance costs with Spicer Life Series (SPL) universal joints.Universal Joint, OSR Style, Round Bearing Cap, Steel, 1.625 in Bearing Cap Dia, Greaseable, SPL100, 4.957 in Length

Features & Benefits

Features & Benefits SPISPL100-1X - Features Documents - A SPISPL100-1X - Features Documents - B SPISPL100-1X - Features Documents - C SPISPL100-1X - Features Documents - D SPISPL100-1X - Features Documents - E SPISPL100-1X - Features Documents - F SPISPL100-1X - Features Documents - G

Journal cross is engineered with a solid cold-formed body to ensure better wear and overall strength.

Bearing cups are heat treated for strength; precision-ground and case-hardened for durability.

Multi-lip seal keeps grease in and contaminants out, and gets maximum retention in a wider range of environments.

Thrust washers eliminate metal-to-metal contact, prevent wear and lower the overall operating temperature.

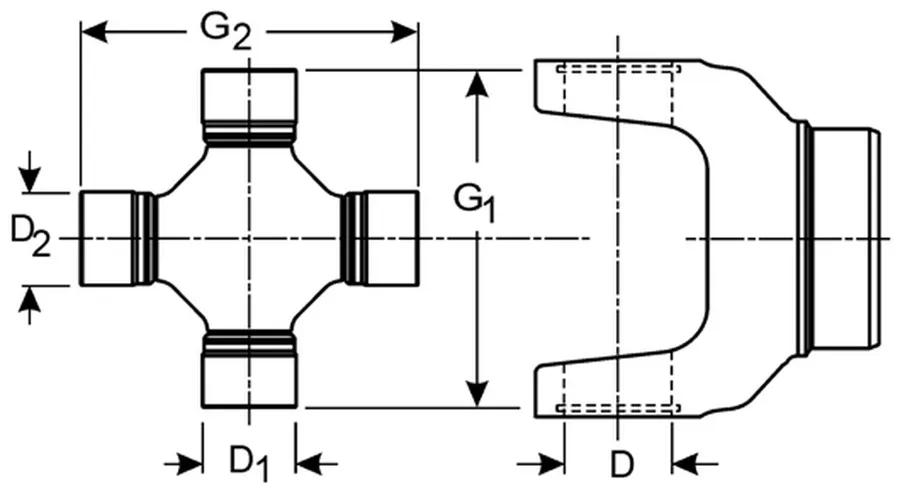

Specifications

Bearing Cap Diameter	1.625 in
Bearing Cap Diameter (1)	1.625
Bearing Cap Type	Round
Length	4.957 in
Material	Steel
Seal Material	Multi-lip seal
Series	SPL100
Snap Ring (2)	2-1/8 in
Snap Ring (1)	4-61/64 in
Type	OSR Style
VMRS Code	024002046
Weight	1.95 lb (0.88 kg)
Greaseable	Yes
Product Category	Universal Joint
Quantity	1
