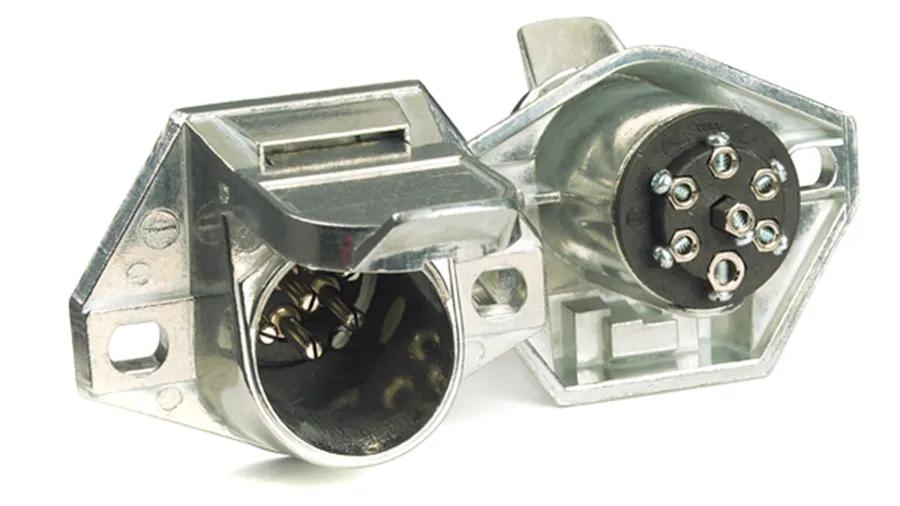

Split Pin Socket, Zinc Die-Cast, 7 Pole, 40A, 6 to 28 VDC
#GRO82-1002
Product Overview
Grote’s heavy duty 7-way sockets are designed to meet and exceed SAE J560 specifications. Our quality features include a reliable closure spring, industry standard mounting holes, and solid brass terminals for optimal conductivity.Socket, Split Pin, Zinc Die-Cast, 40 A Current Rating, 7 Pins, SAE J560 Standards, 6 to 28 VDC
Features & Benefits
- Circuit identification on the back of the socket
- Solid brass pin terminals for best conductivity
- Housing provides superior corrosion resistance
- Terminals accept from #16 wire to #8 ground wire
- Plated-steel cable guards prevent cable chafing
- Weather-resistant design for durability in various conditions
- Manufactured to Meet or Exceed O.E.M. Specifications in Function, Form & Fit.
Specifications
| Material | Zinc Die-Cast |
| Packaging | Bulk / Boxed |
| Terminal Type | Solid brass pin terminals |
| Type | Heavy Duty 7-Way Connectors, Split Pin |
| UPC | 621935000660 |
| Current Rating | 40 A |
| Mounting Type | Industry standard mounting holes |
| Number of Pins | 7 |
| Standards | SAE J560 |
| Voltage Rating | 6 to 28 VDC |
| Product Category | Socket |
| Quantity | 1 |
Interchanges & Equivalent parts:
| 12077-01 |
| PHI15720 |
| 421121 |
| 5407S |
| 670-72TEC |
| 7376-821002 |
| 81280 |
| 82-1002GR0 |
| GRO 82 1002 |
| GRO 82-1002 |
| GRO821002 |
| GT82-1002 |
| PE27200 |
| 821002 |
| TKL50869 |
| ZBJ821002 |
| ZBJD821002 |
| 1663570C1 |
| 9479E |
| EM44040 |
| 157201 |
| 421015 |
| 9479-E |
| 82-1002 |
| 714131 |
| 728524 |
| BPATM-3ID |
| 770515 |
| 6300 |
| 6301 |
| 3-243 |
| 92550 |
| 99090Y |
| 9014C |
| 9031A |
| 6570C |
| EL27407 |
| 1207701 |
| 15720 |
| 593084 |
