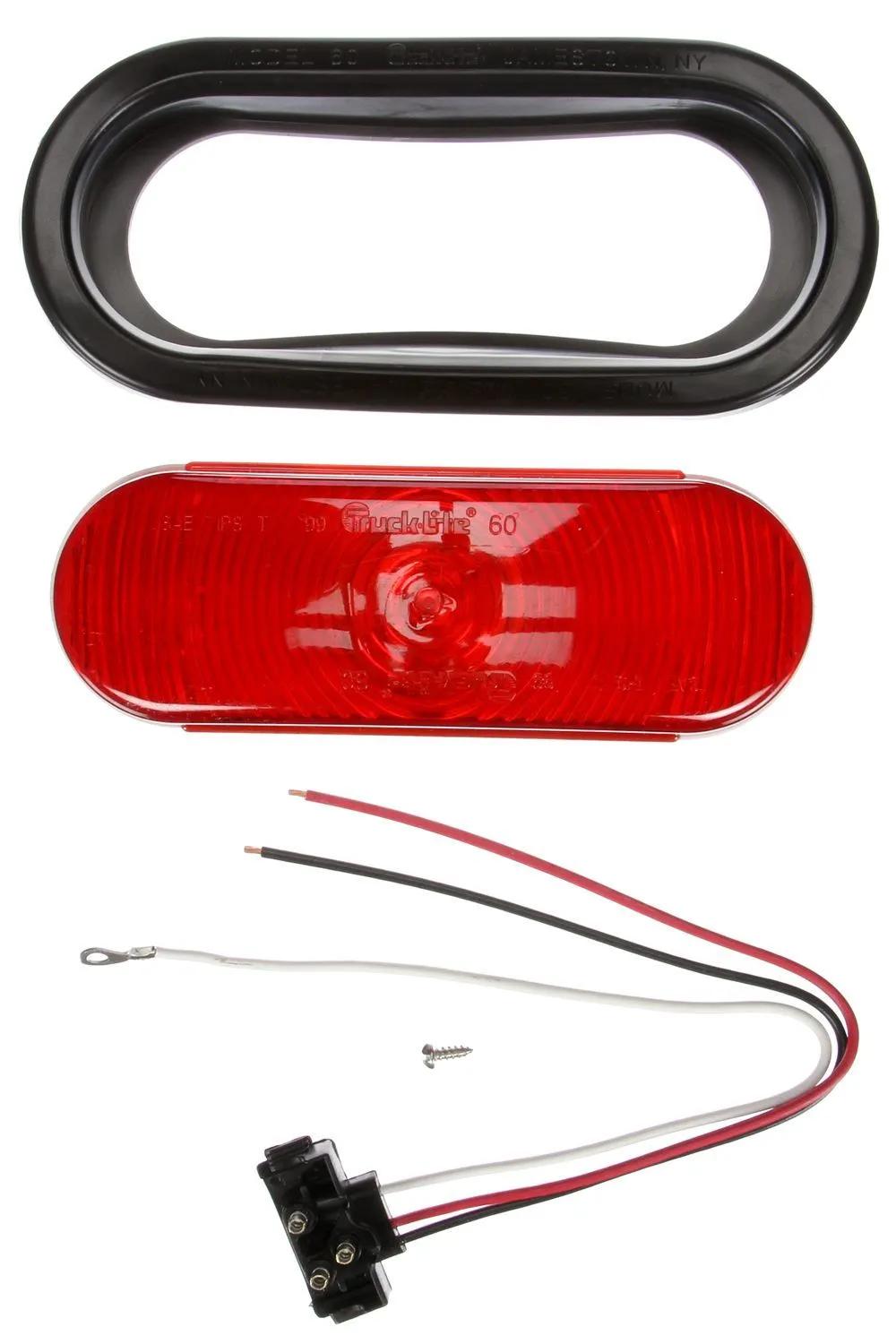

Stop/Tail/Turn Light, Red, Oval
#TRL60002R
Product Overview
Super 60, Incandescent, Red, Oval, 1 Bulb, Stop/Turn/Tail, Black Grommet Mount, PL-3, Stripped End/Ring Terminal, 12V, Kit
Features & Benefits
- Mounts horizontally or vertically
- Right angle plug assembly
Specifications
| Ampères | 0.59 amp to 2.1 amp |
| Couleur | Rouge |
| Taille commune | 2 in (5.08 cm) |
| Contient | 52892, 92420, 67000 |
| Major actuel | 2,1 amp |
| Mineure actuelle | 0,48 amp |
| Profondeur | 2-1/2 in (6.35 cm) |
| Coquille de diamant (O/N) | Non |
| Fonction | I, P2, S, T |
| Hauteur | 2-1/4 in (5.72 cm) |
| Couleur du boîtier | Noir |
| Trousse (O/N) | Yes |
| Longueur | 6-1/2 in (16.51 cm) |
| Matériau de la lentille | Polycarbonate |
| Matériel | PVC |
| Type de support | Montage par gel |
| Nombre de câbles | 3 |
| Fiche #1 | PL-3, Female |
| Plug Side Two | PL-2 (Stripped End) |
| Reflectorized (Y/N) | Non |
| Series | 60 Series |
| Shape | Ovale |
| Standard | FMVSS 108, NSVAC 108, DOT, SAE |
| Technology | Incandescent |
| Type | Stop/Tail/Turn Light |
| VMRS Code | 034-002-013 |
| Volt | 12V |
| Width | 6-1/2 in (16.51 cm) |
| Wire Gauge | 16 ga |
Interchanges & Equivalent parts:
| 5121288004 |
| 58011144 |
| 5460002R |
| 420R |
| 421KR |
| 4220360 |
| 1150869 |
| 2496003 |
| 103347 |
| 60002R |
| 12012 |
| 53500010 |
| 15200406 |
| 841360002R |
| 705201513 |
| 7070 |
| 4027 |
| 75089373379376 |
| 8081430C91 |
| K916386 |
| P07070 |
| HT50603350 |
| TL60002R |
| TLD60002R |
| PT6000RKIT |
| MTL06000200R |
| LNB16381 |
| LT60KR |
| F310100 |
| F311007 |
| 214685 |
| 253-6222 |
| 2536222 |
| 52572 |
| 60002R1 |
| 60002R3 |
| MNC253-6222 |
| TRU60002R |
| 4072 |
| 19180009 |
| 5950238502 |
| 1522250 |
| 97720300151 |
| 706222 |
| 70622299 |
| 809050 |
| ST74RB |
| 2140685 |
| 3946859 |
| 525723 |
| 60002R-TL |
| 8413-60002R |
| LIT60002R |
| ST-74RB |
| TL 60002R |
| TL 60002R |
| TL-60002R |
| 143-02-122 |
| 52572GR0 |
| 800-250420R |
| 80905 |
| KT3260R |
| M421KR |
| PT6000R-KIT |
| TKL60002R |
| 1264072 |
| 52572-3 |
| 214-0685-B |
| 2140685B |
| 214-0685 |
