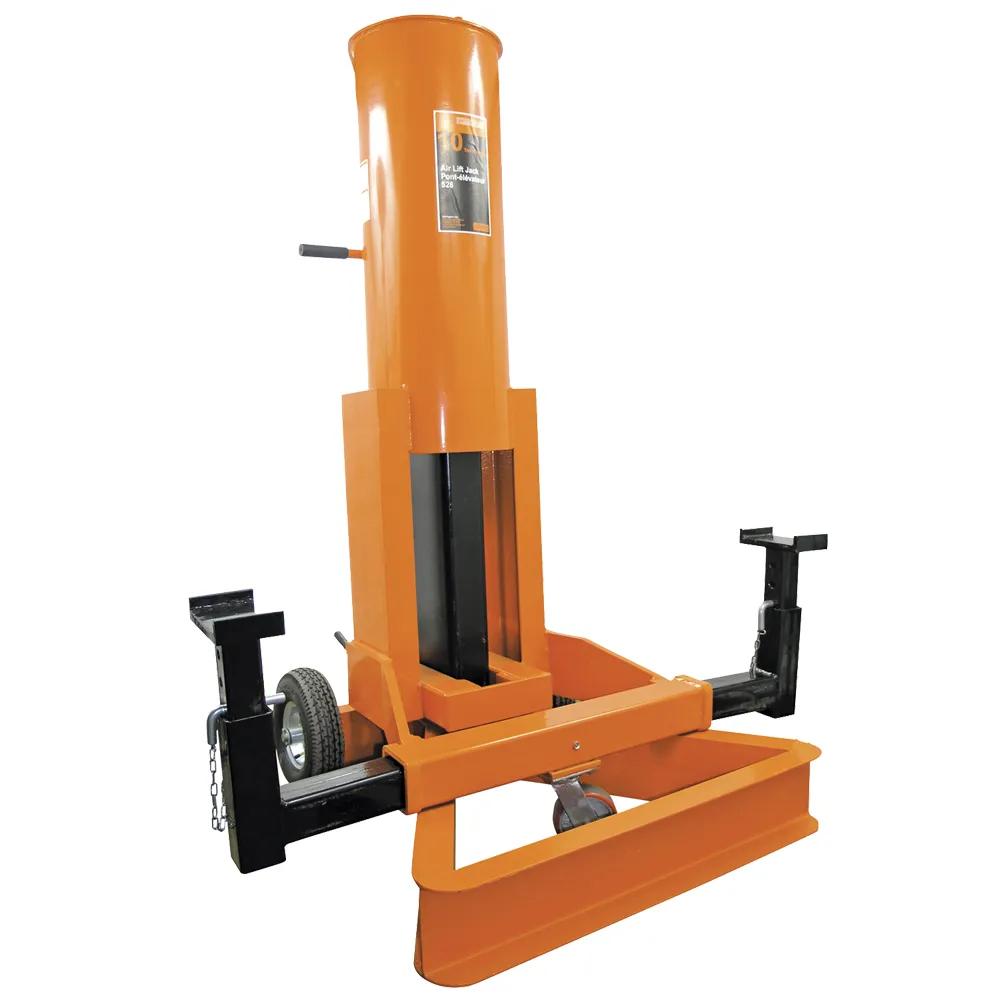

Strongarm 10 Ton Heavy Duty Air End Lift Jack with Adjustable Saddle Spread and Integrated Safety Lock
#STR030457
Product Overview
Strongarm® air end lift jacks are designed for quick and efficient lifting of large trucks, tractor trailers, and heavy construction equipment. All units are 100% air operated and include integrated mechanical locking mechanisms to securely hold the load during lifting operations.Air End Lift Jack, Heavy Duty, 10 ton, Chassis Length: 35.5 in, Front Chassis Width: 47.3 in, 18.9 in Handle Length, 49.6 in High Height, 12.4 in Lowered Height, Number of Stages: 1, 200 psi Pressure, Ram Lift: 37.2 in, Saddle Spread: 36 to 50 in, Standards: ASME PASE 2014, For For Quick and Efficient Lifting of Large Trucks Tractor Trailers and Heavy Construction Equipment
Features & Benefits
- 10 ton Capacity achieved at 200 psi air supply
- Constructed with an extra wide stance to lift the entire front or rear of large trucks, buses, and other heavy-duty equipment
- 4" x 6" steel saddles adjust between 36" and 50" widths to accommodate a wide variety of vehicle applications
- Saddle arms reversible for lower lifting points and low height loads
- Three-way air valve for fine, high precision lifting and lowering control
- Automatic mechanical safety lock engages at five lift heights from 17.5" to 50"
- Two air control valve fittings – one for shop air supply and one for a Schrader valve
- Front swivel caster and two pneumatic rear tires for easy maneuverability
- 13" forward reach (distance from cylinder to saddles)
- 18.9" handle length for comfortable operation
- Single stage lift with ram lift of 37.2"
Specifications
| Capacity | 10 T |
| Handle Length | 18.9 in |
| Length | 68 in |
| Model | 528 |
| Pressure Rating | 200 psi |
| Type | Heavy Duty |
| Width | 43-1/2 in |
| Application | For quick and efficient lifting of large trucks, tractor trailers, and heavy construction equipment |
| Chassis Length | 35.5 in |
| Front Chassis Width | 47.3 in |
| Height | 37-3/4 in |
| High Height | 49.6 in |
| Lowered Height | 12.4 in |
| Number of Handles | 1 |
| Number of Stages | 1 |
| Ram Lift | 37.2 in |
| Rear Chassis Width | 47.3 in |
| Saddle Spread | 36 to 50 in |
| Standards | ASME PASE 2014 |
| Wheel Diameter | Front swivel caster and two pneumatic rear tires |
| Product Category | Air End Lift Jack |
| Weight | 682 lb |
Interchanges & Equivalent parts:
| STR528 |
