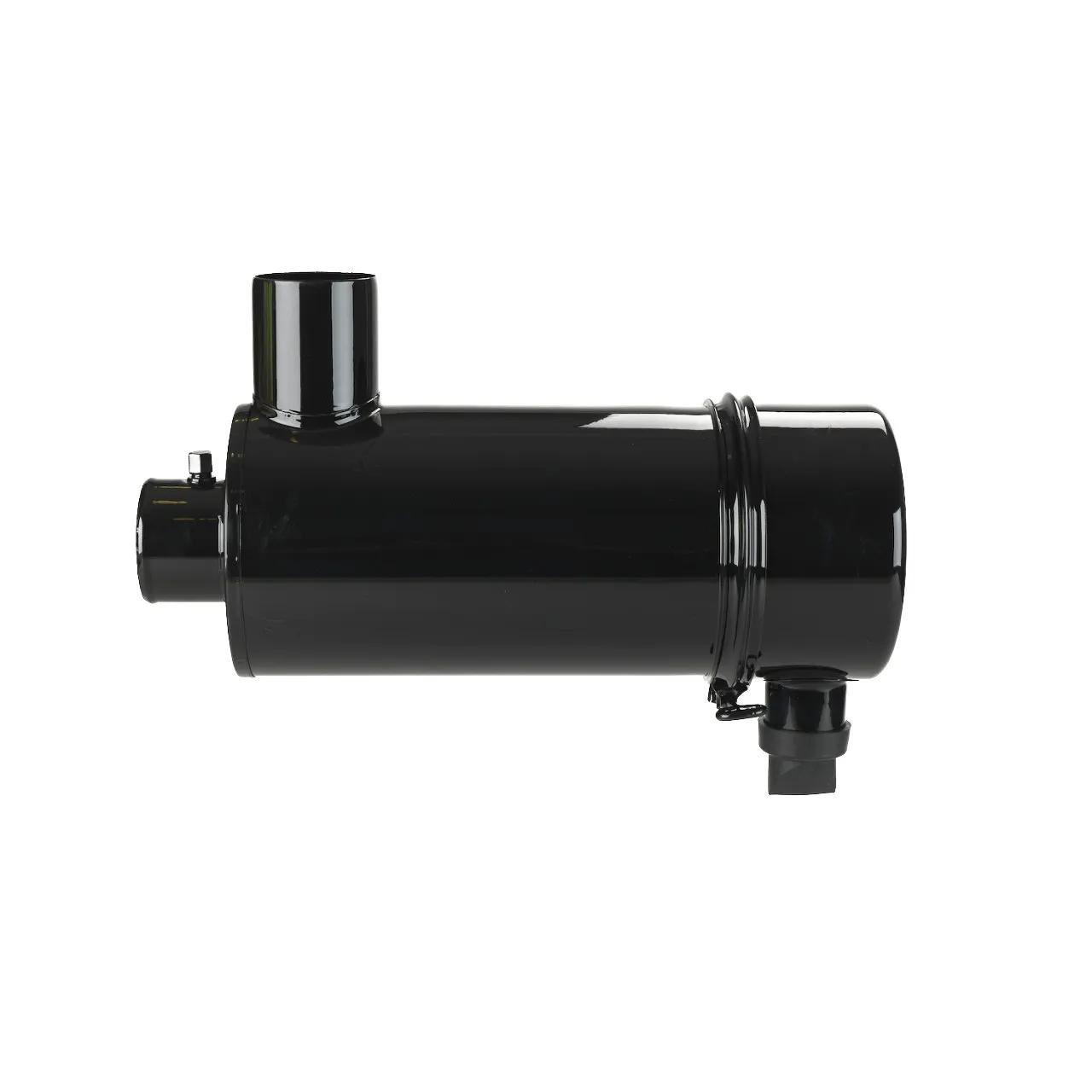

Air Filtration System L: 11,69 in, OD: 3 in, ID: 3 in
#DONG065541
Product Overview
Why Choose Donaldson?
Features & Benefits
- RadialSeal Sealing Technology ensures reliability, is easy to service and makes the filter self centering, self-aligning and self-sealing
- Durable plastic housing corrosion free and lightweight
- Superior performance in thousands of on- and off-road applications.
Specifications
| Diamètre | 6.56 in (166.7 mm) |
| Plage de diamètre | 6 to 6.99 in |
| Famille | FRG |
| Diamètre d'entrée | 2.99 in (75.95 mm) |
| Diamètre intérieur | 3 in (76.2 mm) |
| Longueur | 11.69 in (297 mm) |
| Diamètre de sortie | 3 in (76.2 mm) |
| Longueur totale | 17.83 in (452.9 mm) |
| Gamme haute de débit nominal | 174 cfm (4.93 m³/min) |
| Plage basse de débit nominal | 131 cfm (4 m³/min) |
| Milieu de gamme de débit nominal | 156 cfm (4.42 m³/min) |
| Restriction HR | 10 in H2O (254 mm H2O) |
| Restriction LR | 5.99 in H2O (152 mm H2O) |
| Restriction MR | 8 in H2O (203 mm H2O) |
| Length Range | 11 to 11.99 in |
| Style | Radialseal |
Interchanges & Equivalent parts:
| 477695 |
| DN G065541 |
| DN G065541 |
| 2191-G065541 |
| DONG065541 |
