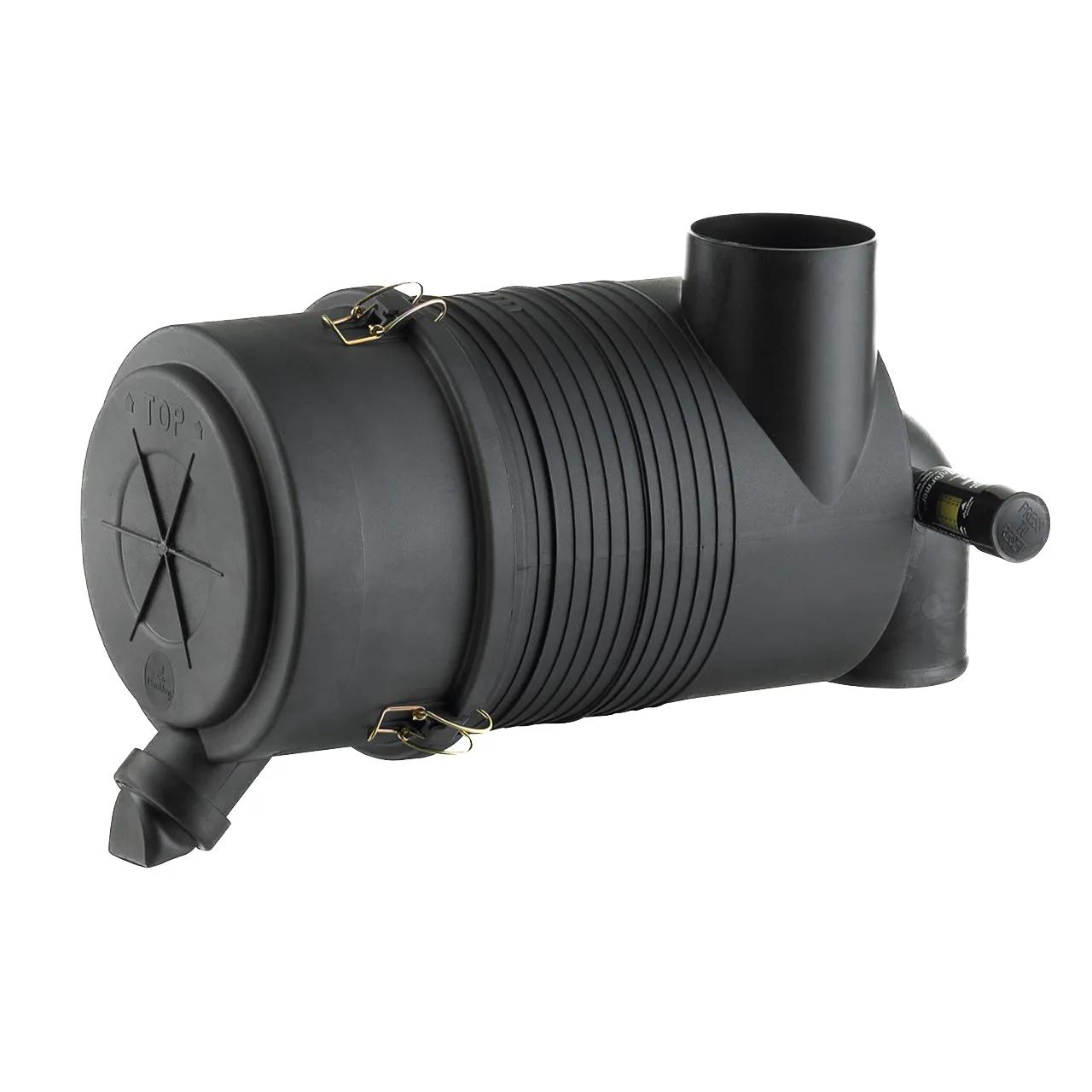

Air Filtration System L: 12,6 in
#DONG065411
Product Overview
Why Choose Donaldson?
Features & Benefits
- RadialSeal Sealing Technology ensures reliability, is easy to service and makes the filter self centering, self-aligning and self-sealing
- Durable plastic housing corrosion free and lightweight
- Superior performance in thousands of on- and off-road applications.
Specifications
| Diameter | 6.75 in (171.5 mm) |
| Diameter Range | 6 to 6.99 in |
| Family | FPG |
| Height | 14-57/64 in (37.82 cm) |
| Inlet Diameter | 2.52 in (64.01 mm) |
| Length | 12.6 in (320.1 mm) |
| Outlet Diameter | 2.5 in (63.5 mm) |
| Rated Flow High Range | 145 cfm (4.11 m³/min) |
| Rated Flow Low Range | 109 cfm (3.1 m³/min) |
| Rated Flow Mid Range | 123.6 cfm (3.5 m³/min) |
| Restriction HR | 10 In H2O |
| Restriction LR | 5.98 IN H2O |
| Restriction MR | 7.99 IN H2O |
| Length Range | 12 to 12.99 in |
| Style | Radialseal |
| Width | 6-3/16 in (15.72 cm) |
Interchanges & Equivalent parts:

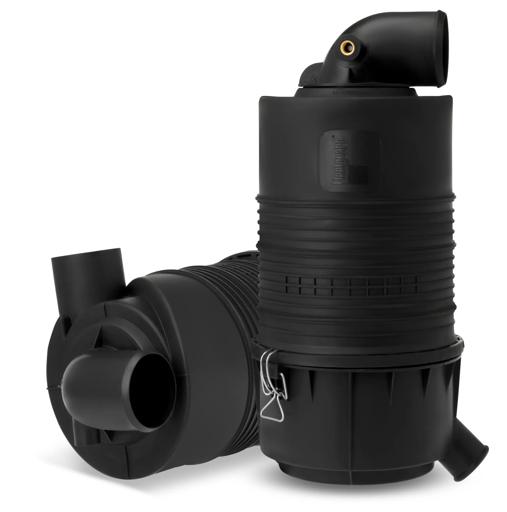

| AH19090 |
| 460311 |
| MA388AC |
| 10000634 |
| 542205166 |
| 194297 |
| 194297A |
| 194610 |
| 194797A |
| 176333 |
| 7304000638 |
| 4128083 |
| 31600001 |
| YM12960112580 |
| 29321155 |
| 29321169 |
| 13000004 |
| 33500213 |
| P50610 |
| 147307AA |
| VTG065411 |
| 143036001 |
| 1000100273 |
| 800154489 |
| 0200157 |
| 046914 |
| DN G065411 |
| DN G065411 |
| 7431312212 |
| 2191-G065411 |
| AF2307 |
| AF2310 |
| CA9246 |
| DONG065411 |
| 427021 |
| 46914 |
| 200157 |
