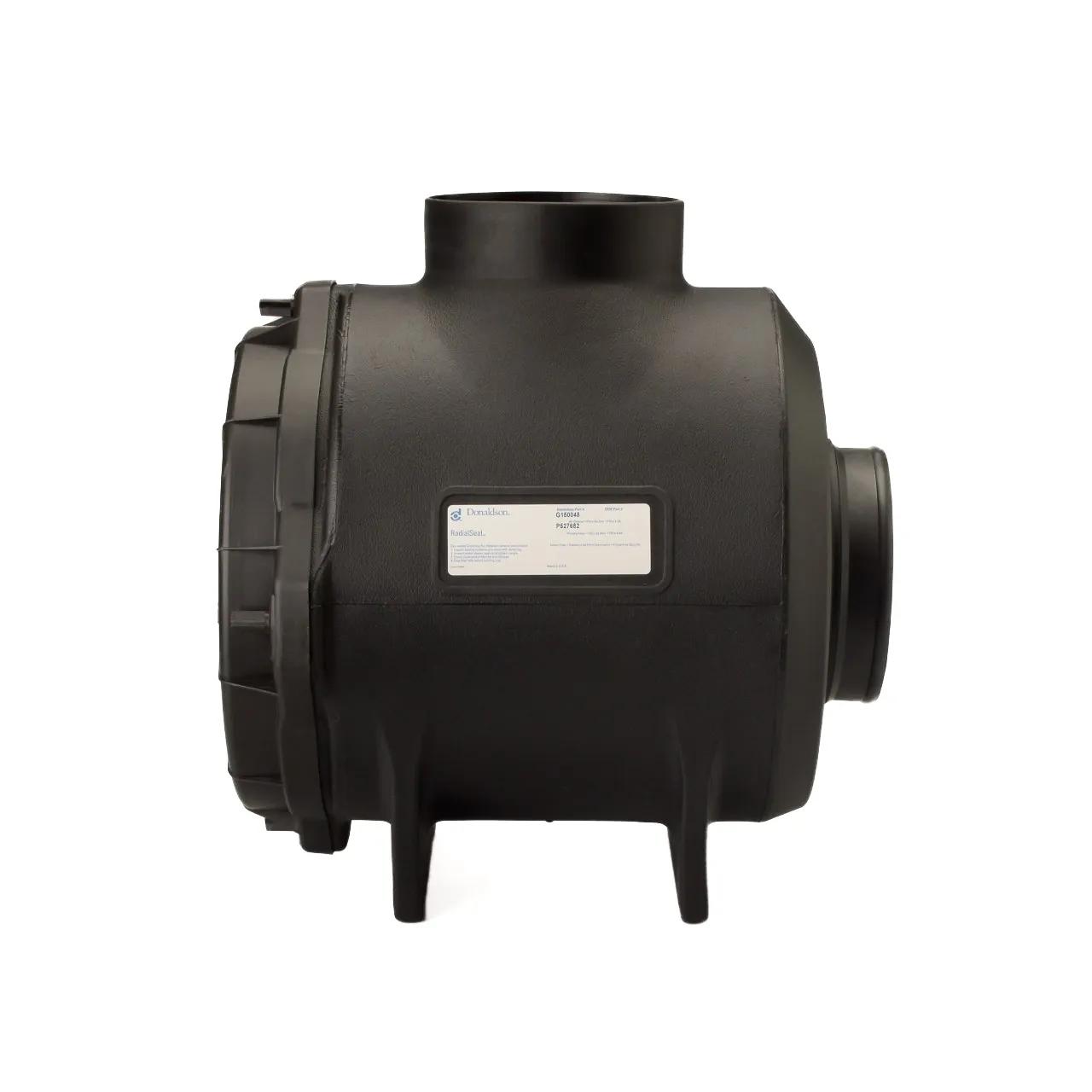

Air Filtration System L: 15,75 in
#DONG150048
Features & Benefits
- RadialSeal Sealing Technology ensures reliability, is easy to service and makes the filter self centering, self-aligning and self-sealing
- Durable plastic housing corrosion free and lightweight
- Superior performance in thousands of on- and off-road applications.
Specifications
| Diamètre | 14,62 po (371,4 mm) |
| Plage de diamètre | 13 à 13.99 po |
| Famille | EPG |
| Diamètre d'entrée | 7,01 po (178,06 mm) |
| Longueur | 15,75 po (400,1 mm) |
| Diamètre de sortie | 7 po (177,8 mm) |
| Gamme haute de débit nominal | 1300 cfm (36,8 m³/min) |
| Plage basse de débit nominal | 890 cfm (25,2 m³/min) |
| Rated Flow Mid Range | 1108,88 cfm (31,4 m³/min) |
| Restriction HR | 7.99 IN H2O |
| Restriction LR | 4.02 IN H2O |
| Restriction MR | 5.98 IN H2O |
| Length Range | 15 à 15.99 po |
| Style | Radialseal |
Interchanges & Equivalent parts:
| G150048 |
| 102B0073 |
| 9576G150048 |
| 5L355 |
| EB5962 |
| 39854948 |
| 5000526 |
| X14210078 |
| D6A1618 |
| 2191G150048 |
| 93004203 |
| 127553 |
| 2250240 |
| 90024842 |
| 1083465 |
| DN G150048 |
| DN G150048 |
| 065503 |
| 2191-G150048 |
| DDE G150048 |
| R0262793 |
| 5325807000 |
| A2200001001 |
| AF2120 |
| AF2356 |
| DONG150048 |
| 65503 |
