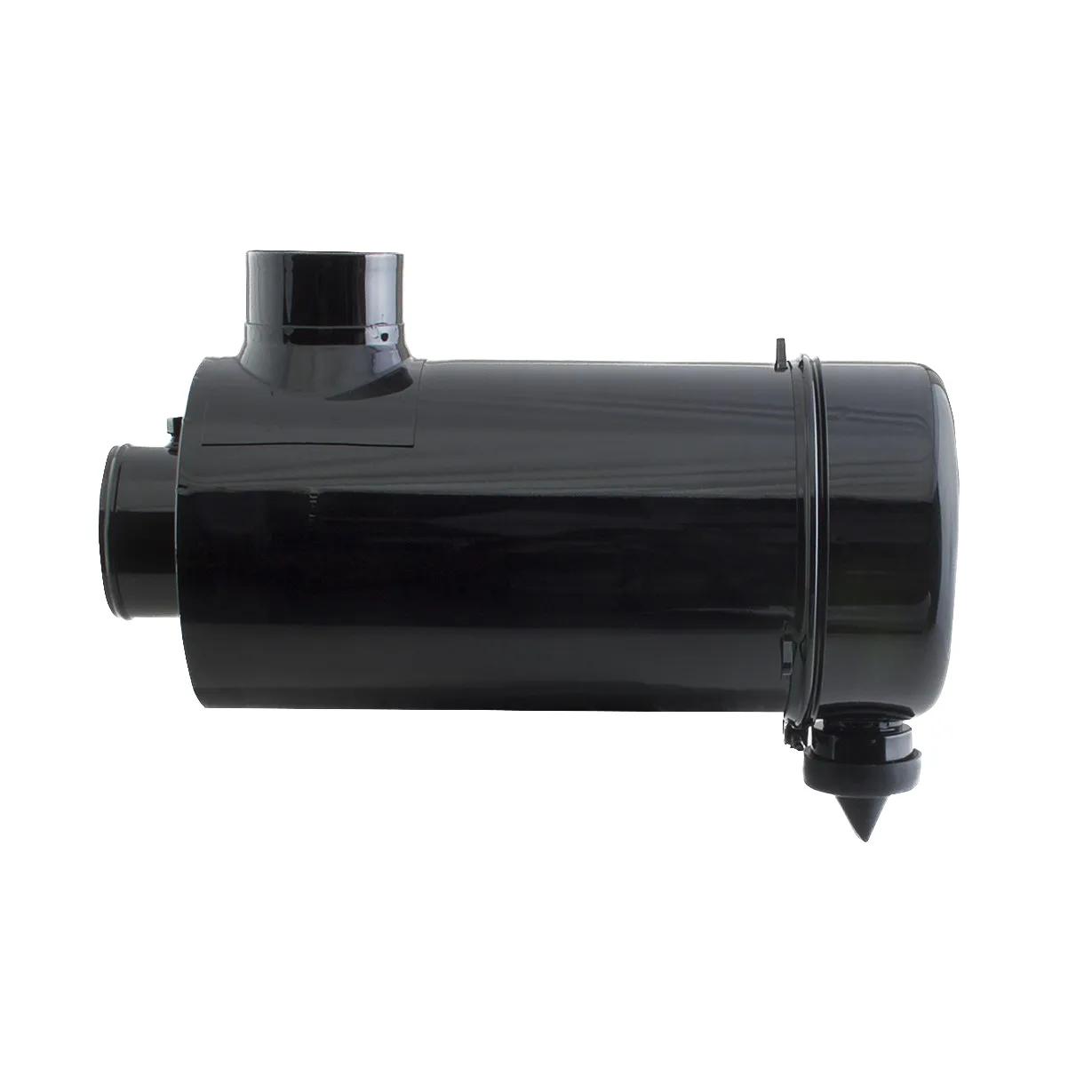

Air Filtration System L: 21,09 in, OD: 5 in
#DONG100395
Features & Benefits
- RadialSeal Sealing Technology ensures reliability, is easy to service and makes the filter self centering, self-aligning and self-sealing
- Durable plastic housing corrosion free and lightweight
- Superior performance in thousands of on- and off-road applications.
Specifications
| Diamètre | 10,2 po (259,08 mm) |
| Plage de diamètre | 10 à 10.99 po |
| Famille | FRG |
| Diamètre d'entrée | 4,49 po (114,05 mm) |
| Length | 21,09 po (535,7 mm) |
| Outlet Diameter | 5 po (127 mm) |
| Overall Length | 23,8 po (604,5 mm) |
| Rated Flow High Range | 374 cfm (10,6 m³/min) |
| Rated Flow Low Range | 283 cfm (9 m³/min) |
| Rated Flow Mid Range | 332 cfm (9,41 m³/min) |
| Restriction HR | 10 po H20 (254 mm H20) |
| Restriction LR | 5,99 po H20 (152,1 mm H20) |
| Restriction MR | 8 po H20 (203,2 mm H20) |
| Length Range | 21 à 21.99 po |
| Style | Radialseal |
Interchanges & Equivalent parts:
| G100395 |
| G090022 |
| 463178 |
| 473056 |
| 30340203 |
| 20056 |
| 20058 |
| 1904196 |
| 190496 |
| LL847479 |
| 737493 |
| 4403363 |
| 4710010 |
| 810114 |
| 810105 |
| 810116 |
| 00810114 |
| 05011535 |
| 2191-G100395 |
| DONG100395 |
| DN G100395 |
| DN G100395 |
