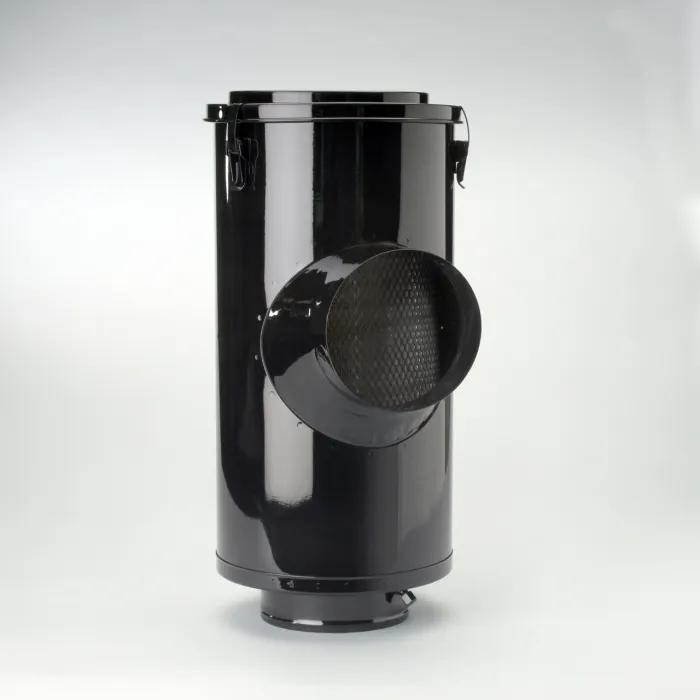

Air Filtration System L: 21,25 in, OD: 7 in
#DONG112404
Product Overview
Air cleaner, ecg 2400
Features & Benefits
- Donaldson delivers a full line of aftermarket liquid, lube, air, hydraulic, and exhaust system components.
- Products and technology designed to consistently meet required specifications – and your expectations.
- Superior performance in thousands of on- and off-road applications.
Specifications
| Diameter | 11 in (279.4 mm) |
| Diameter Range | 7 to 7.99 in |
| Family | ECG |
| Length | 21.25 in (539.8 mm) |
| Outer Diameter | 7 in (177.8 mm) |
| Overall Length | 27.25 in (692.2 mm) |
| Rated Flow High Range | 1600 cfm (45,31 m³/min) |
| Rated Flow Low Range | 1201 cfm (35 m³/min) |
| Rated Flow Mid Range | 1399 cfm (39,62 m³/min) |
| Restriction HR | 10 in H2O (254 mm H2O) |
| Restriction LR | 5,99 in H2O (152 mm H2O) |
| Restriction MR | 8 in H2O (203 mm H2O) |
| Length Range | 21 to 21.99 in |
Interchanges & Equivalent parts:
| 99102B0042 |
| 102B42 |
| ECG112404 |
| 1402389 |
| 514579 |
| 220010237 |
| DDE G112404 |
| DN G112404 |
| DN G112404 |
| 09036000 |
| 01402389 |
| 0514579 |
| 2191-G112404 |
| 22001-0237 |
| AF785 |
| DONG112404 |
| PA2715 |
| 9036000 |
