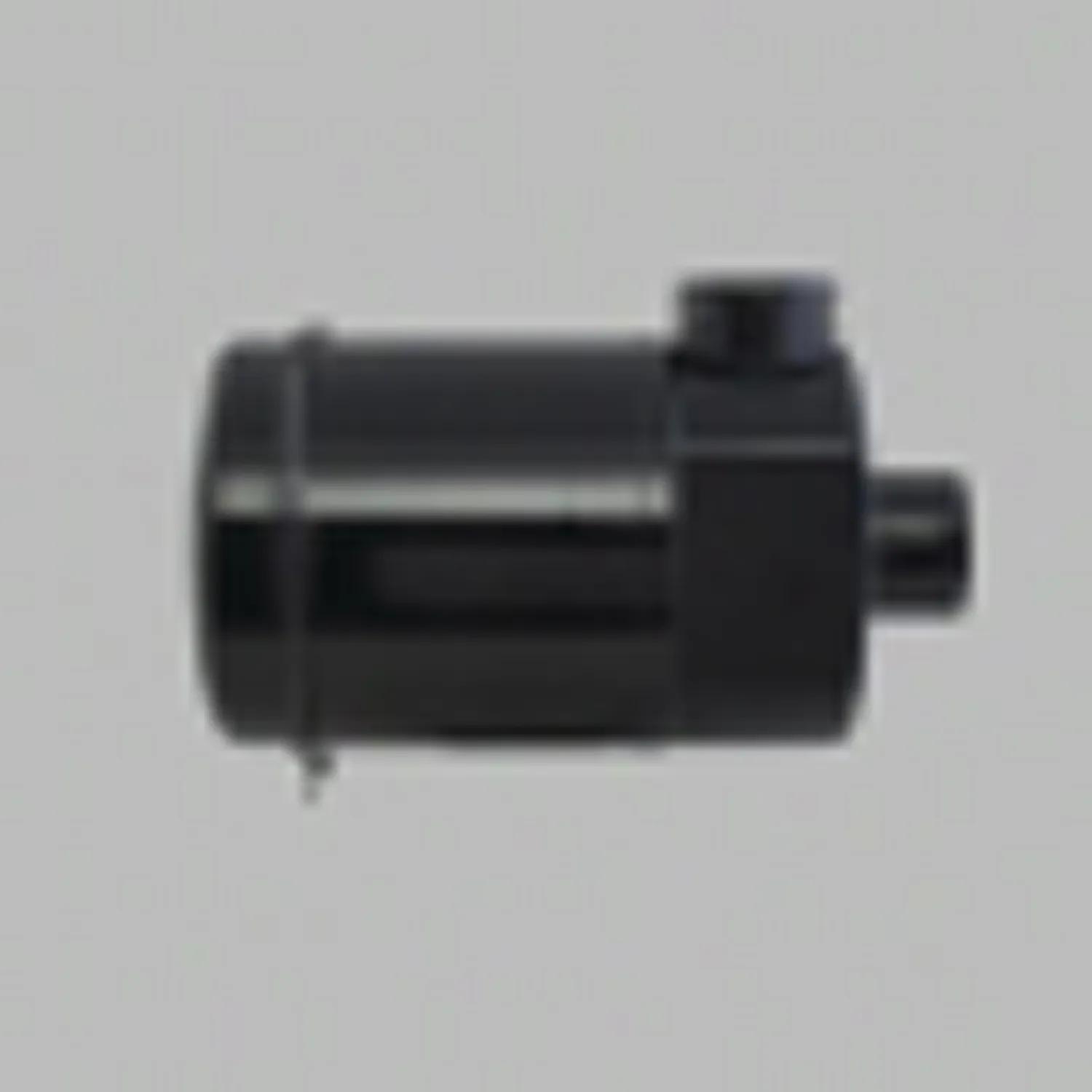

Système de filtration d'air H: 21,89 po,
#DONA140003
Sommaire du produit
Donaldson branded filters are designed specifically to give you effective, consistent performance over the life of your engine. The company that invented air filters for heavy-duty engines delivers the broadest vehicle and equipment coverage, the most consistent quality and the best overall performance.
Spécifications
| Diamètre | 14 po (355,6 mm) |
| Plage de diamètre | 13 à 13.99 po |
| Famille | FWA |
| Diamètre d'entrée | 5 po (127 mm) |
| Longueur | 21,89 po (556,1 mm) |
| Diamètre de sortie | 5,5 po (139,7 mm) |
| Gamme haute de débit nominal | 600 cfm (17 m³/min) |
| Plage basse de débit nominal | 456 cfm (12,9 m³/min) |
| Milieu de gamme de débit nominal | 533 cfm (15,1 m³/min) |
| Restriction FC | 10 In H2O |
| Restriction LR | 5.98 IN H2O |
| RM de restriction | 7.99 IN H2O |
| Plage de longueur | 21 à 21.99 po |
Interchanges et pièces équivalentes:
| A140003 |
| DN A140003 |
| DN A140003 |
| PA1637-FN |
| 21255FX |
| 005190020055 |
| 00A231808058 |
| 0R023180058 |
| 178765 |
| 0RO23180058 |
| 18H0155 |
| 218532H1 |
| 336462 |
| 347028 |
| 43530 |
| 438713K91 |
| 438713R91 |
| 52549DX |
| 5300361007 |
| 5367GX |
| 561070 |
| 69008763 |
| 7304000047 |
| 9576A140003 |
| DONA140003 |
| FWA140003 |
| ORO23180058 |
