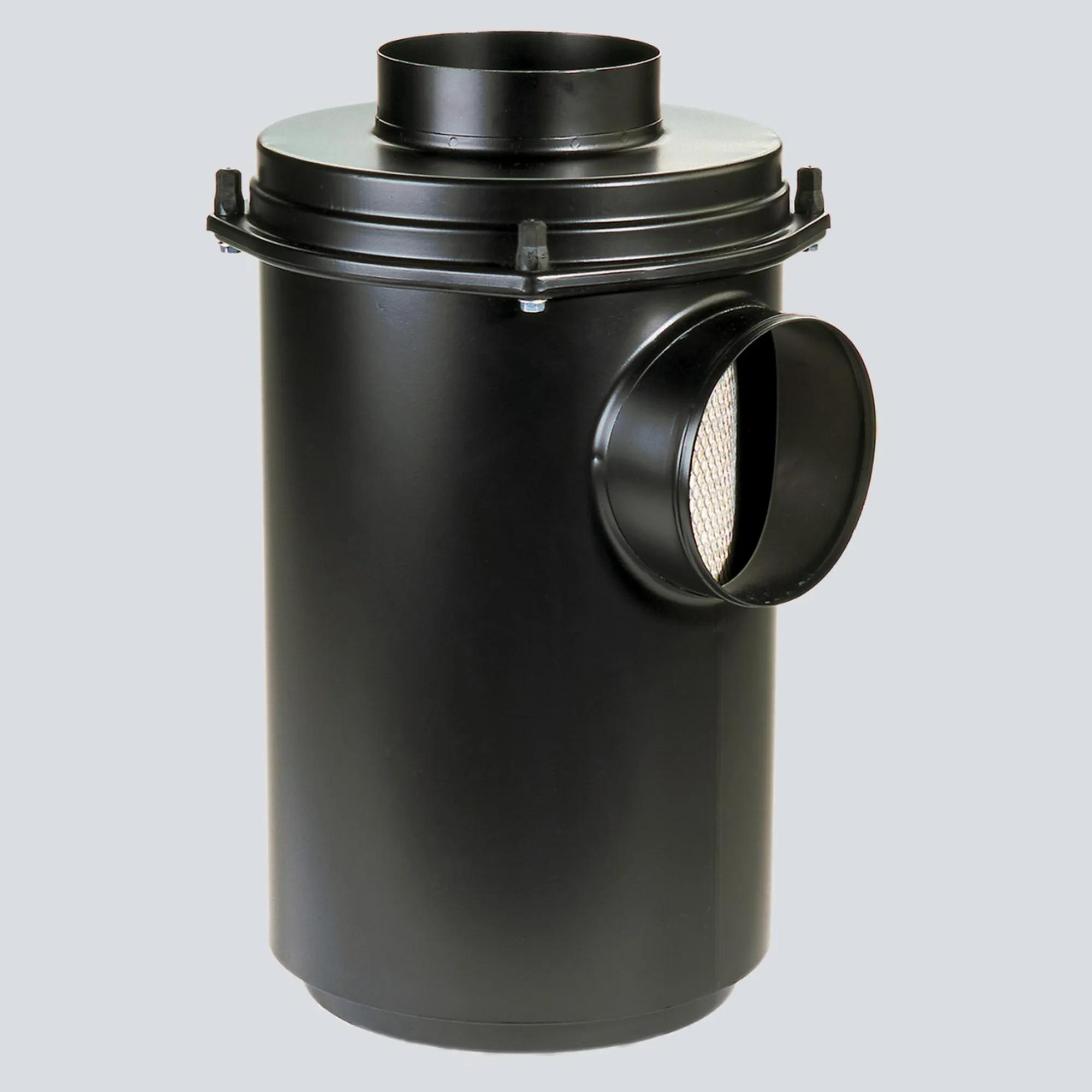

Air Filtration System L: 24,38 in, OD: 7 in
#DONA150138
Features & Benefits
- RadialSeal Sealing Technology ensures reliability, is easy to service and makes the filter self centering, self-aligning and self-sealing
- Durable plastic housing corrosion free and lightweight
- Superior performance in thousands of on- and off-road applications.
Specifications
| Diamètre | 15 po (381 mm) |
| Plage de diamètre | 14 à 14.99 po |
| Famille | ERA |
| Diamètre d'entrée | 7,01 po (178,06 mm) |
| Longueur | 24,38 po (619,3 mm) |
| Diamètre de sortie | 7 po (177,8 mm) |
| Longueur totale | 29,11 po (739,4 mm) |
| Gamme haute de débit nominal | 1350 cfm (38,23 m³/min) |
| Plage basse de débit nominal | 1046 cfm (30 m³/min) |
| Milieu de gamme de débit nominal | 1205 cfm (34,13 m³/min) |
| Restriction FC | 10 po H20 (254 mm H20) |
| Restriction LR | 5,99 po H20 (152,1 mm H20) |
| RM de restriction | 8 po H20 (203,2 mm H20) |
| Length Range | 24 à 24.99 po |
| Style | Radialseal |
Interchanges & Equivalent parts:
| A150138 |
| 300101005 |
| 9576A150128 |
| DNA150128 |
| EBA150128 |
| ERA150138 |
| 2191A150128 |
| DN A150138 |
| DN A150138 |
| 2191-A150138 |
| DONA150138 |
