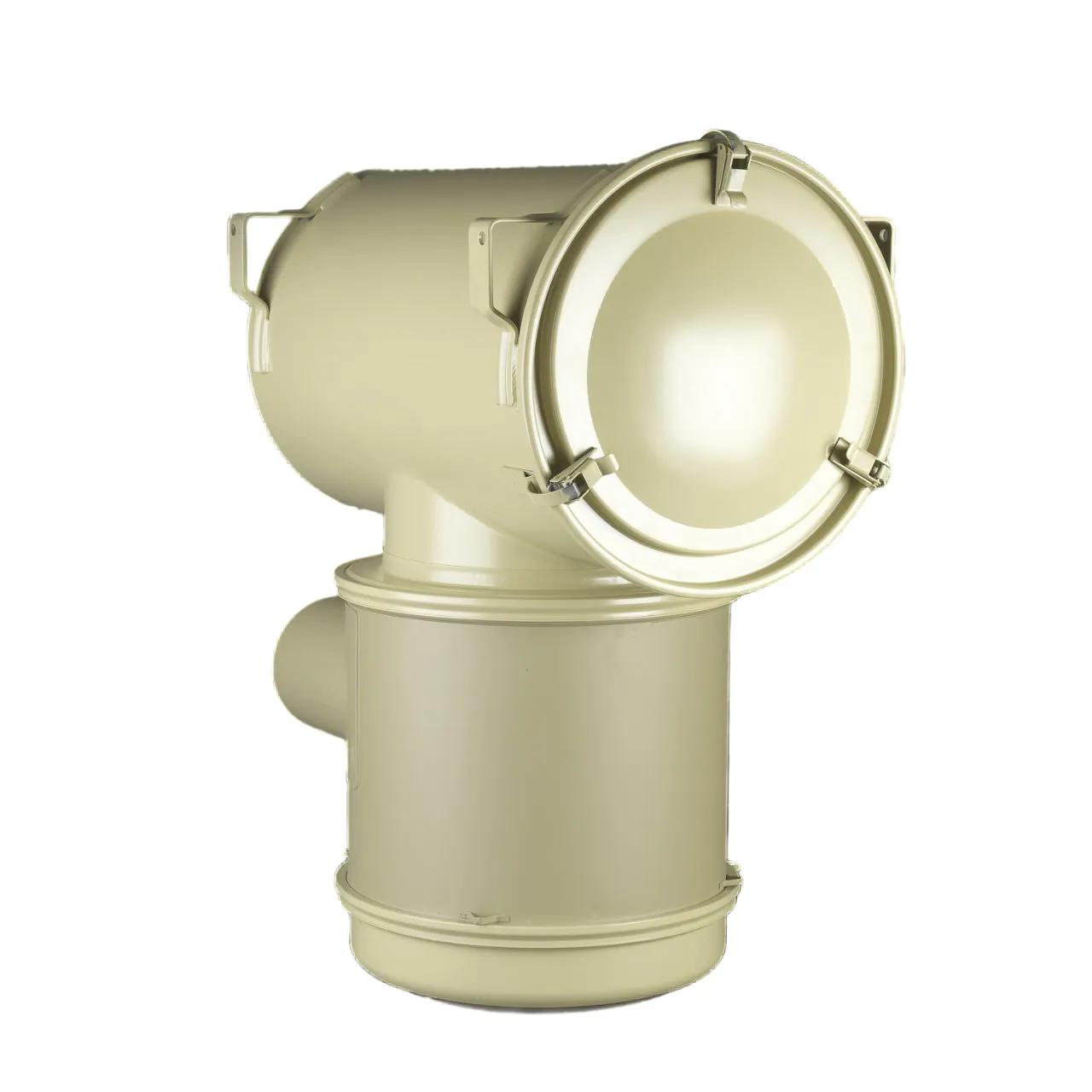

Air Filtration System L: 24 in, OD: 8 in, W: 17,99 in
#DONG161020
Features & Benefits
- Donaldson delivers a full line of aftermarket liquid, lube, air, hydraulic, and exhaust system components.
- Products and technology designed to consistently meet required specifications – and your expectations.
- Superior performance in thousands of on- and off-road applications.
Specifications
| Diamètre | 16 po (406,4 mm) |
| Plage de diamètre | 15 à 15.99 po |
| Famille | STG |
| Diamètre d'entrée | 5,98 po (151,9 mm) |
| Longueur | 24 po (609,6 mm) |
| Diamètre de sortie | 8 po (203,2 mm) |
| Longueur totale | 29,56 po (750,8 mm) |
| Gamme haute de débit nominal | 1466 cfm (41,52 m³/min) |
| Plage basse de débit nominal | 1413 cfm (41 m³/min) |
| Milieu de gamme de débit nominal | 1307 cfm (37,02 m³/min) |
| Restriction FC | 10 po H20 (254 mm H20) |
| Restriction LR | 5,99 po H20 (152,1 mm H20) |
| RM de restriction | 8 po H20 (203,2 mm H20) |
| Plage de longueur | 24 à 24.99 po |
| Style | Tubulaire |
| Largeur | 17,99 in (457 mm) |
Interchanges & Equivalent parts:
| G161020 |
| 226636 |
| 3018051282 |
| P05297 |
| P1023185101 |
| P1073185101 |
| 64133050 |
| 5606336 |
| 460C028 |
| DN G161020 |
| DN G161020 |
| 2191-G161020 |
| AF658 |
| AF659 |
| DONG161020 |
| G161010 |
| PA2562XP |
