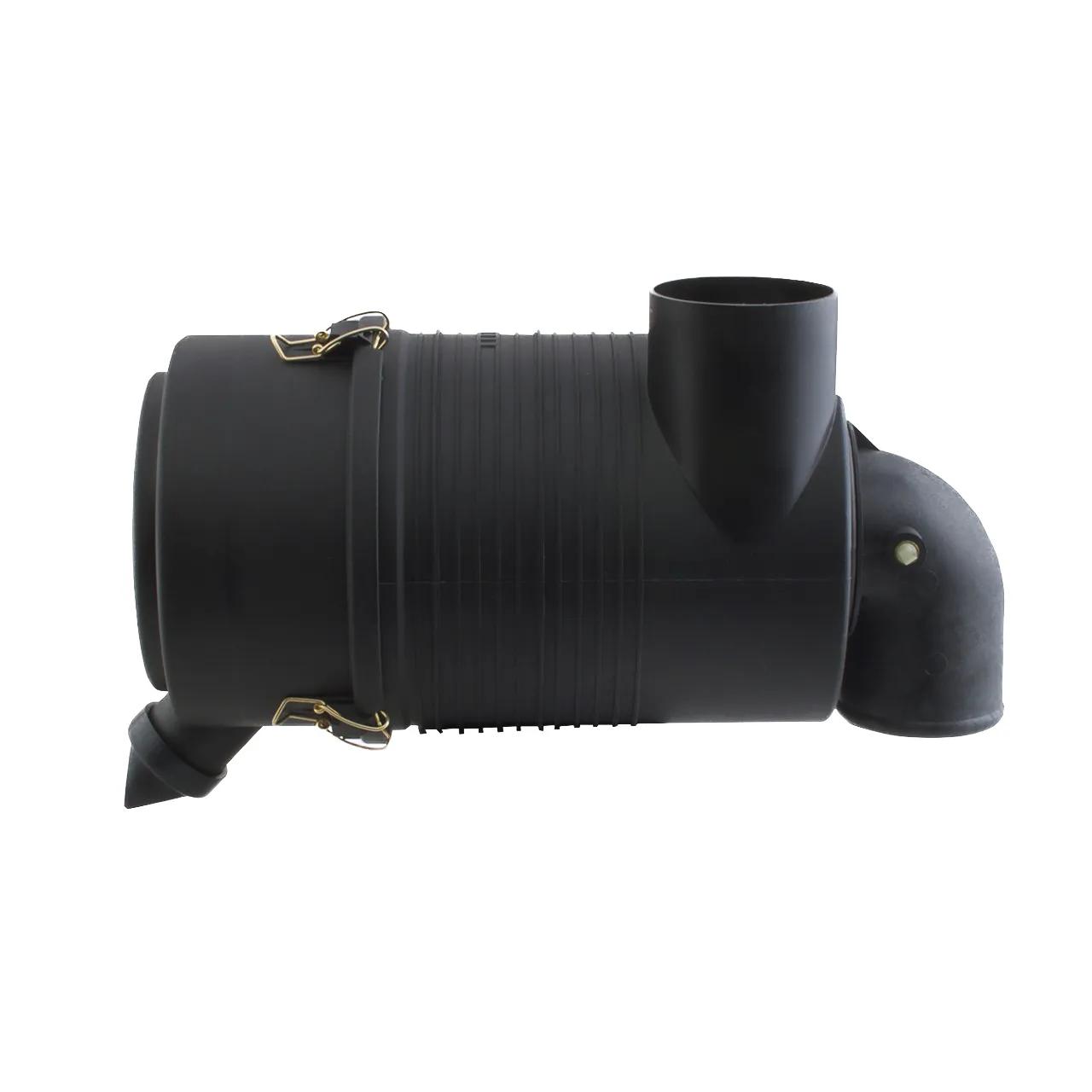

Air Filtration System L: 9,7 in, OD: 3,5 in, ID: 3,74 in
#DONG082526
Product Overview
AIR CLEANER, FPG RADIALSEAL
Features & Benefits
- RadialSeal Sealing Technology ensures reliability, is easy to service and makes the filter self centering, self-aligning and self-sealing
- Durable plastic housing corrosion free and lightweight
- Superior performance in thousands of on- and off-road applications.
Specifications
| Diameter | 8.35 in (212.1 mm) |
| Diameter Range | 8 to 8.99 in |
| Family | FPG |
| Inlet Diameter | 3.74 in (95 mm) |
| Inner Diameter | 3.74 in (95 mm) |
| Length | 9.7 in (246.4 mm) |
| Outlet Diameter | 3.5 in (88.9 mm) |
| Overall Length | 17.01 in (432.1 mm) |
| Rated Flow High Range | 216 cfm (6.12 m³/min) |
| Rated Flow Low Range | 166 cfm (5 m³/min) |
| Rated Flow Mid Range | 191 cfm (5.41 m³/min) |
| Restriction HR | 10 in H2O (254 mm H2O) |
| Restriction LR | 5.99 in H2O (152 mm H2O) |
| Restriction MR | 8 in H2O (203 mm H2O) |
| Length Range | 9 to 10 in |
| Style | Radialseal |
Interchanges & Equivalent parts:
| AU104132 |
| 7922 |
| 138940A1 |
| NFPG082526 |
| NX14210075 |
| 2809778 |
| 191082 |
| 194484 |
| 194484A |
| 1051005 |
| 7304000636 |
| 4101436 |
| 11FQ20050 |
| 59197319 |
| 10467503 |
| 80273009 |
| RE70240A |
| 10867503 |
| 67503X |
| 29321170 |
| 11328 |
| 86562967 |
| 13000005 |
| 33500205 |
| 114666608 |
| G082526016140 |
| 703312 |
| 7033120 |
| 703312AA |
| 751613 |
| 828762AA |
| 751605 |
| 6190658M91 |
| 8273022 |
| 8273022REVA |
| 11425307 |
| 240100013617 |
| DN G082526 |
| DN G082526 |
| 0933029 |
| 2191-G082526 |
| AF2270 |
| AF2286 |

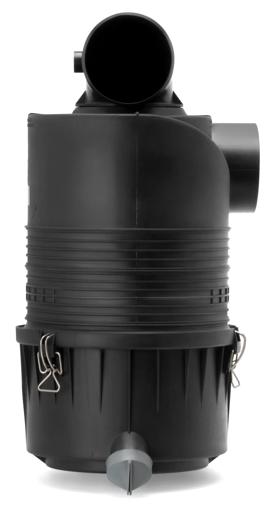

| AH19098 |
| DONG082526 |
