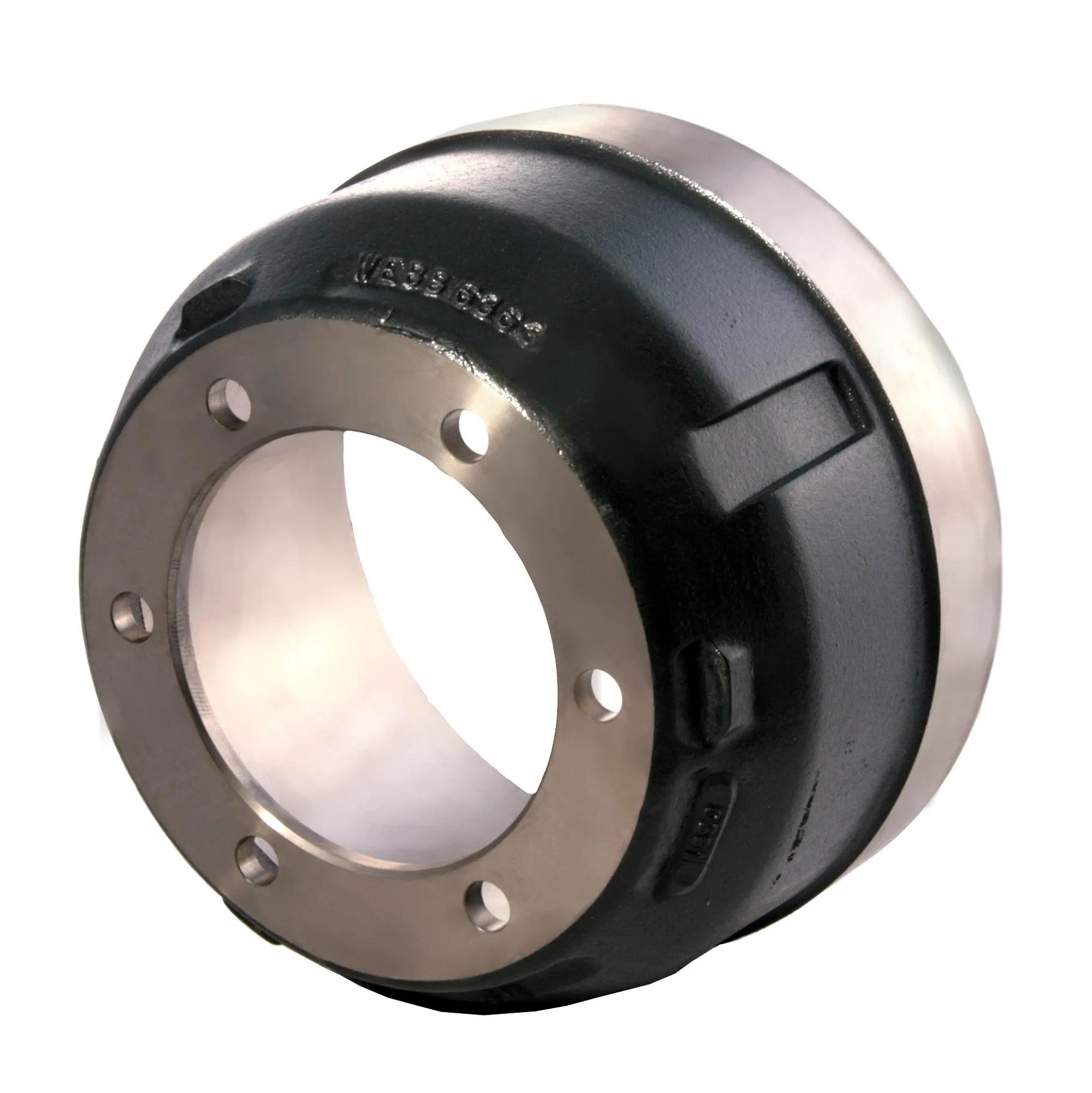

Brake Drum, 12-1/4 in x 5-1/2 in, 6 holes, (72,26 lb)
#WEB63634F
Product Overview
Webb Brake Drums Are Made From a High Grade of Cast Iron for Long Srevice and Conform to SAE Recommended Practices.
Features & Benefits
- Backed by a nationwide warranty and the best product support in the business
- Webb Wheel Products is your OE first-fit and aftermarket heavy-duty wheel-end component parts leader
- Manufactured in IATF 16949 or ISO 9001 registered facilities
Specifications
| Back Plate Thickness | 1/2 in (1.27 cm) |
| Bolt Circle Diameter | 8-3/4 in (22.23 cm) |
| Bolt Hole (Number) | 6 |
| Brake Shoe Width | 5-1/2 in (13.97 cm) |
| Brake Size | 12-1/4 in x 5-1/2 in |
| Brake Surface Diameter | 12-1/4 in (31.12 cm) |
| Brake Surface Width | 6-1/4 in (15.88 cm) |
| Drum Mounting | Inboard |
| Hole Size | 13/16 in (2.07 cm) |
| Maximum Diameter | 12-3/8 in (31.44 cm) |
| Overall Depth | 8-19/32 in (21.83 cm) |
| Pilot Diameter | 7-1/8 in (18.1 cm) |
| Type | Cast |
| VMRS Code | 013-017-006 |
| Weight | 71 to 75 lbs |
| Weight (lbs) | 32.78 kg (72.26 lb) |
| Width | 6 in (15.24 cm) |
Interchanges & Equivalent parts:
| 63634 |
| 63634B |
| 63634M |
| 12634 |
