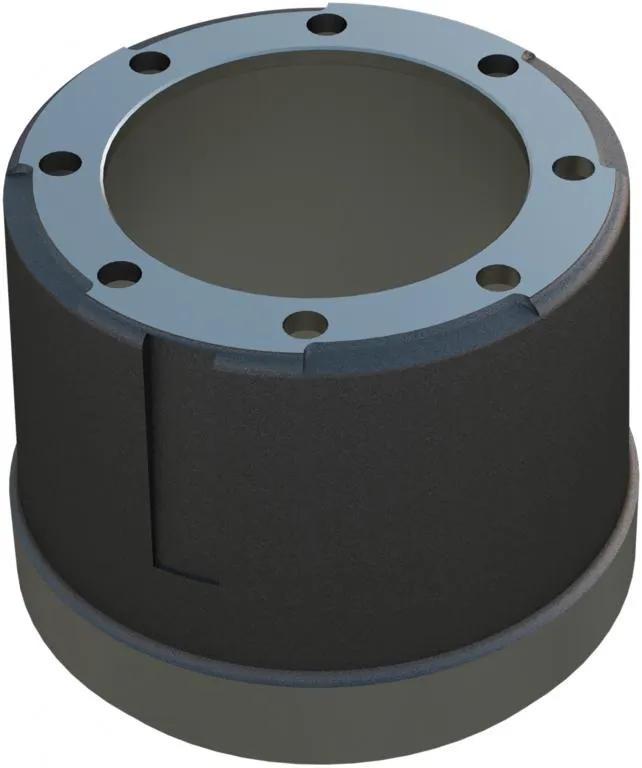

Brake Drum, 12-1/4 in x 7-1/2 in, 8 holes, (89 lb)
#KIC54244-018
Specifications
| Application | Trailer Axles |
| Back Plate Thickness | 1/2 in |
| Bolt Circle Diameter | 10-53/64 in |
| Bolt Hole (Number) | 8 |
| Brake Shoe Width | 7-1/2 in |
| Brake Size | 12-1/4 in x 7-1/2 in |
| Brake Surface Diameter | 12-1/4 in |
| Brake Surface Flat | 9 in (22.86 cm) |
| Brake Surface Width | 9-27/32 in |
| Drum Mounting | Outboard |
| Drum Mount Type | Outboard |
| Drum Type | BAA |
| Dust Shield Recess Depth (C) | 21/32 in |
| Dust Shield Recess Diameter (B) | 13-17/64 in |
| Flange Thickness | 1/2 in |
| Hole Size | 1 in |
| Material | Standard Cast |
| Maximum Diameter | 12-3/8 in |
| Overall Depth | 11-7/32 in |
| Pilot Diameter | 9 in (22.86 cm) |
| Type | AX |
| VMRS Code | 013-017-006 |
| Weight | 86 to 90 lbs |
| Weight (lbs) | 40.37 kg (89 lb) |
| Width | 8-5/8 in |
Interchanges & Equivalent parts:
| 03-00050 |
| 151.27505 |
| 3887 |
| 63680F |
| X61132 |
| 54244018 |
| PF3887 |
| 54244-018 |
