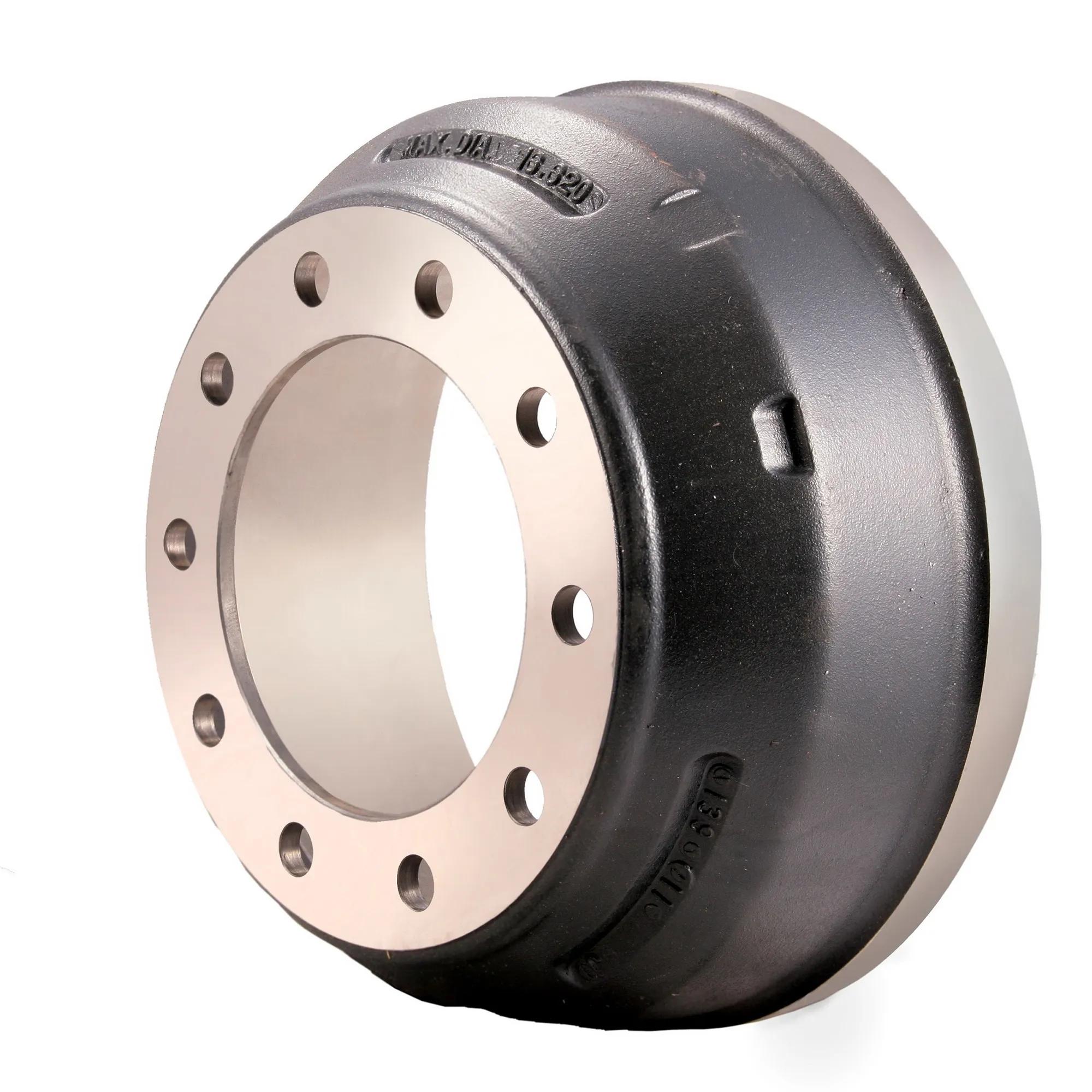

Brake Drum, 16-1/2 in x 5 in, 10 holes, (85,9 lb)
#WEB68985F
Product Overview
Webb Brake Drums Are Made From a High Grade of Cast Iron for Long Srevice and Conform to SAE Recommended Practices.
Features & Benefits
- Backed by a nationwide warranty and the best product support in the business
- Webb Wheel Products is your OE first-fit and aftermarket heavy-duty wheel-end component parts leader
- Manufactured in IATF 16949 or ISO 9001 registered facilities
Specifications
| Back Plate Thickness | 1/2 in (1.27 cm) |
| Bolt Circle Diameter | 11-1/4 in (28.58 cm) |
| Bolt Hole (Number) | 10 |
| Brake Shoe Width | 5 in (12.7 cm) |
| Brake Size | 16-1/2 in x 5 in |
| Brake Surface Diameter | 16-1/2 in (41.91 cm) |
| Brake Surface Width | 5-7/16 in (13.82 cm) |
| Drum Mounting | Outboard |
| Hole Size | 1 in (2.54 cm) |
| Maximum Diameter | 16-5/8 in (42.23 cm) |
| Overall Depth | 8-9/16 in (21.76 cm) |
| Pilot Diameter | 8-25/32 in (22.31 cm) |
| Type | Cast |
| VMRS Code | 013-017-006 |
| Weight | 81 to 85 lbs |
| Weight (lbs) | 38.97 kg (85.9 lb) |
| Width | 5 in (12.7 cm) |
Interchanges & Equivalent parts:
| 68985 |
| 3639A |
| 3639AX |
| 3676A |
| 68985B |
| 3676AX |
