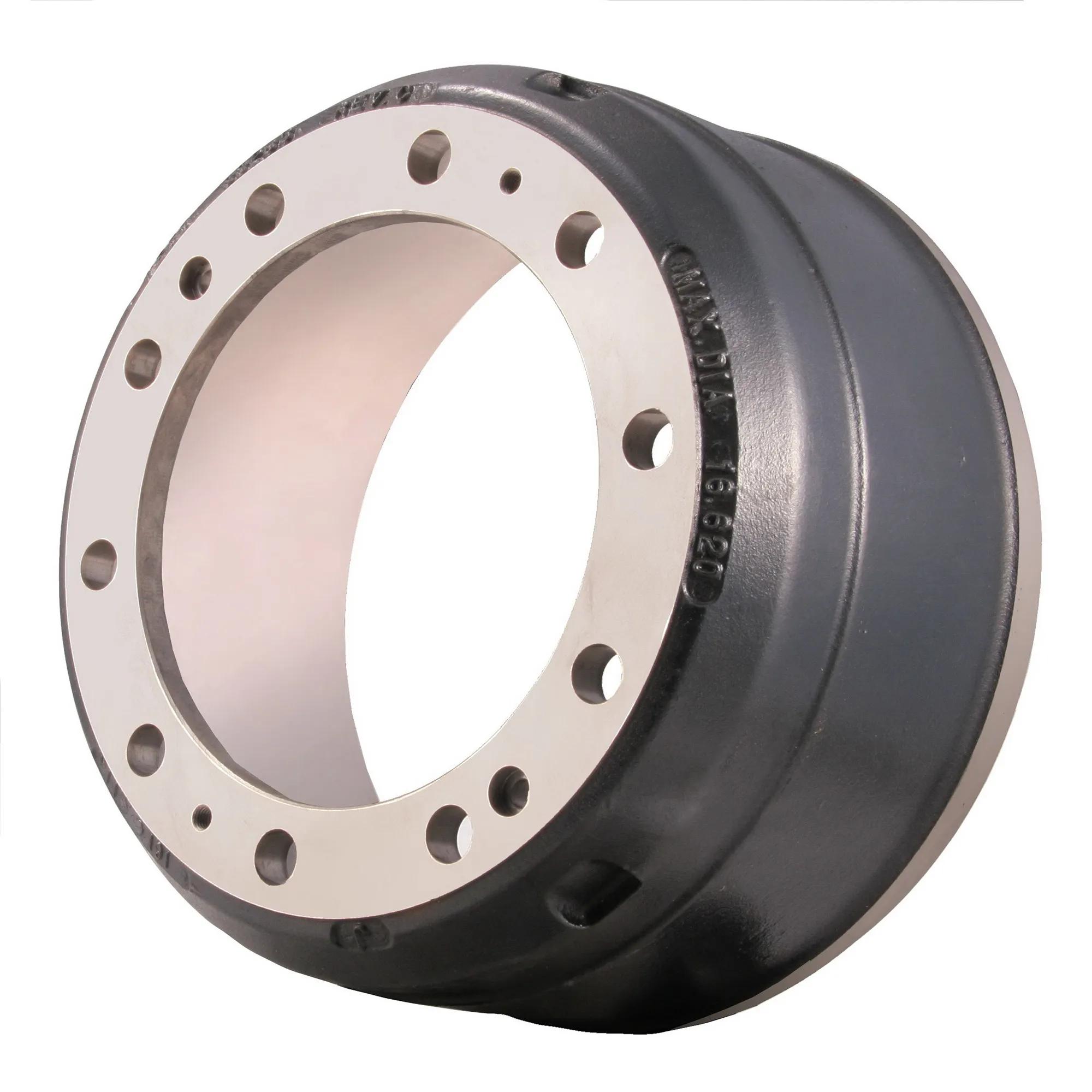

Tambour de frein, 16-1/2 po x 7-1/2 po, 10 holes, (116,19 lb)
#WEB66283F
Product Overview
Webb Brake Drums Are Made From a High Grade of Cast Iron for Long Srevice and Conform to SAE Recommended Practices.
Features & Benefits
- Backed by a nationwide warranty and the best product support in the business
- Webb Wheel Products is your OE first-fit and aftermarket heavy-duty wheel-end component parts leader
- Manufactured in IATF 16949 or ISO 9001 registered facilities
Specifications
| Épaisseur de la plaque arrière | 7/8 po (2,23 cm) |
| Diamètre du cercle de perçage | 13-3/16 po (33,5 cm) |
| Trou de boulon (nombre) | 10 |
| Largeur de segment de frein | 7-1/2 po (19,05 cm) |
| Dimension du frein | 16-1/2 po x 7-1/2 po |
| Diamètre de la surface du frein | 16-1/2 po (41,91 cm) |
| Largeur de la surface de freinage | 7-1/2 po (19,05 cm) |
| Montage du tambour | Extérieur |
| Taille de l'orifice | 1-1/32 po (2,62 cm) |
| Diamètre maximum | 16-5/8 po (42,23 cm) |
| Profondeur totale | 9-1/2 po (24,13 cm) |
| Diamètre du pilote | 11-3/64 po (28,06 cm) |
| Type | Moulé |
| Code VMRS | 013-017-006 |
| Poids | 116 à 120 lb |
| Poids (lb) | 52,71 kg (116,19 lb) |
| Largeur | 7 po (17,78 cm) |
Interchanges & Equivalent parts:
| 5000445283 |
| 5600210008 |
| 5600210127 |
| 66283 |
| 66283B |
| E7198 |
| E-7198 |
