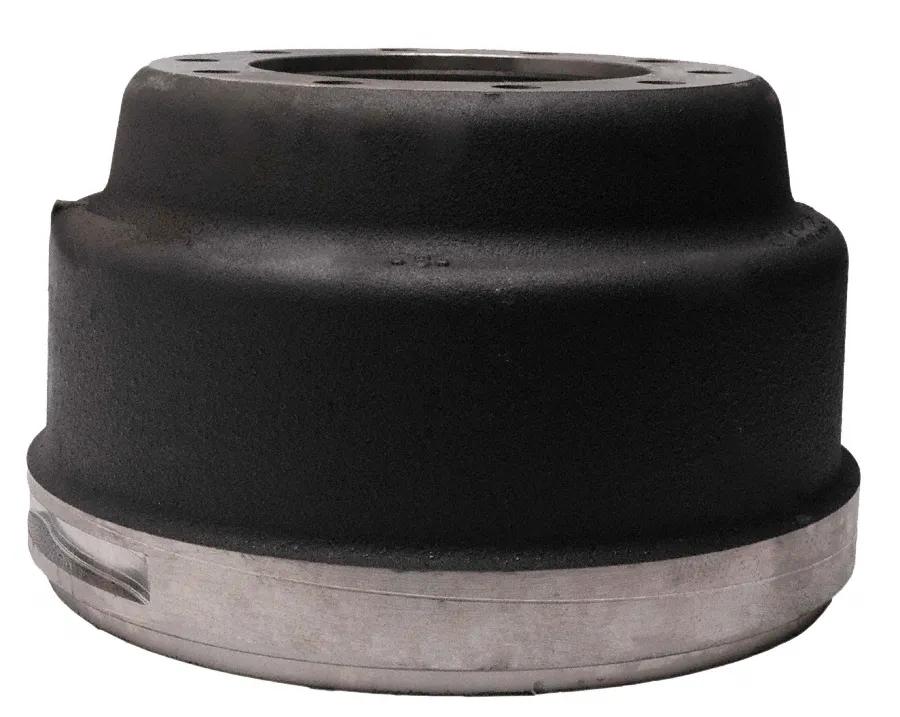

Brake Drum, 16-1/2 in x 7 in, 10 holes, (114 lb)
#GUN3757
Product Overview
This 16.5 in x 7 in brake drum is designed for truck axles. It features 10 bolt holes, an outboard mounting, and a durable cast construction for reliable braking performance.
Features & Benefits
- All Gunite Brake Drums & Disc Brake Rotors Are Fully Protected by One of the Industrys Most Comprehensive Warranties on Material and Workmanship.
- Manufactured to Meet or Exceed O.E.M. Specifications in Function. Form & Fit.
- Gunite Brake Drums & Disc Brake Rotors Are Available Nationwide Through Over 400 Independent Warehouse Distributors. and Various O.E.M. Dealer Networks.
- Gunite Brake Drums & Rotors Offer a Level of Engineering Quality That Meets or Surpasses the Requirements of Every Truck & Trailer Manufacturer.
- Gunite Offers the Industry's Most Complete Line of Brake Drums & Disc Brake Rotors.
Specifications
| Back Plate Thickness | 1/2 in (1.27 cm) |
| Bolt Circle Diameter | 11-1/4 in (28.58 cm) |
| Bolt Hole (Number) | 10 |
| Brake Shoe Width | 7 in (17.78 cm) |
| Brake Size | 16-1/2 in x 7 in |
| Brake Surface Diameter | 16-1/2 in (41.91 cm) |
| Brake Surface Width | 7-7/16 in (18.9 cm) |
| Drum Mounting | Outboard |
| Drum Type | BEA |
| Dust Shield Recess Depth (C) | 41/64 in (1.63 cm) |
| Dust Shield Recess Diameter (B) | 17-7/8 in (45.41 cm) |
| Hole Size | 1 in (2.54 cm) |
| Maximum Diameter | 16-5/8 in (42.23 cm) |
| Overall Depth | 11-3/16 in (28.42 cm) |
| Overall Diameter | 18-11/16 in (47.47 cm) |
| Packaging | Individual / Bulk |
| Pilot Diameter | 8-25/32 in (22.31 cm) |
| Sidewall Offset (N) | 3-55/64 in (9.8 cm) |
| Squealer Band Width (K) | 2 in (5.08 cm) |
| VMRS Code | 013-017-006 |
| Weight | 111 to 115 lbs |
| Weight (lbs) | 52.32 kg (114 lb) |
| Wheel Type | Disc |
| Width | 7 in (17.78 cm) |
Interchanges & Equivalent parts:
| 3647 |
| U00X61233 |
| X61233 |
| 3757X |
| DRMX61233 |
| GUN3757X |
| 1670176C1 |
| 54213-01 |
| GUN 3757 |
| GUN3757 |
| WB-66353 |
| WWD 66353F |
| ZBR3757 |
