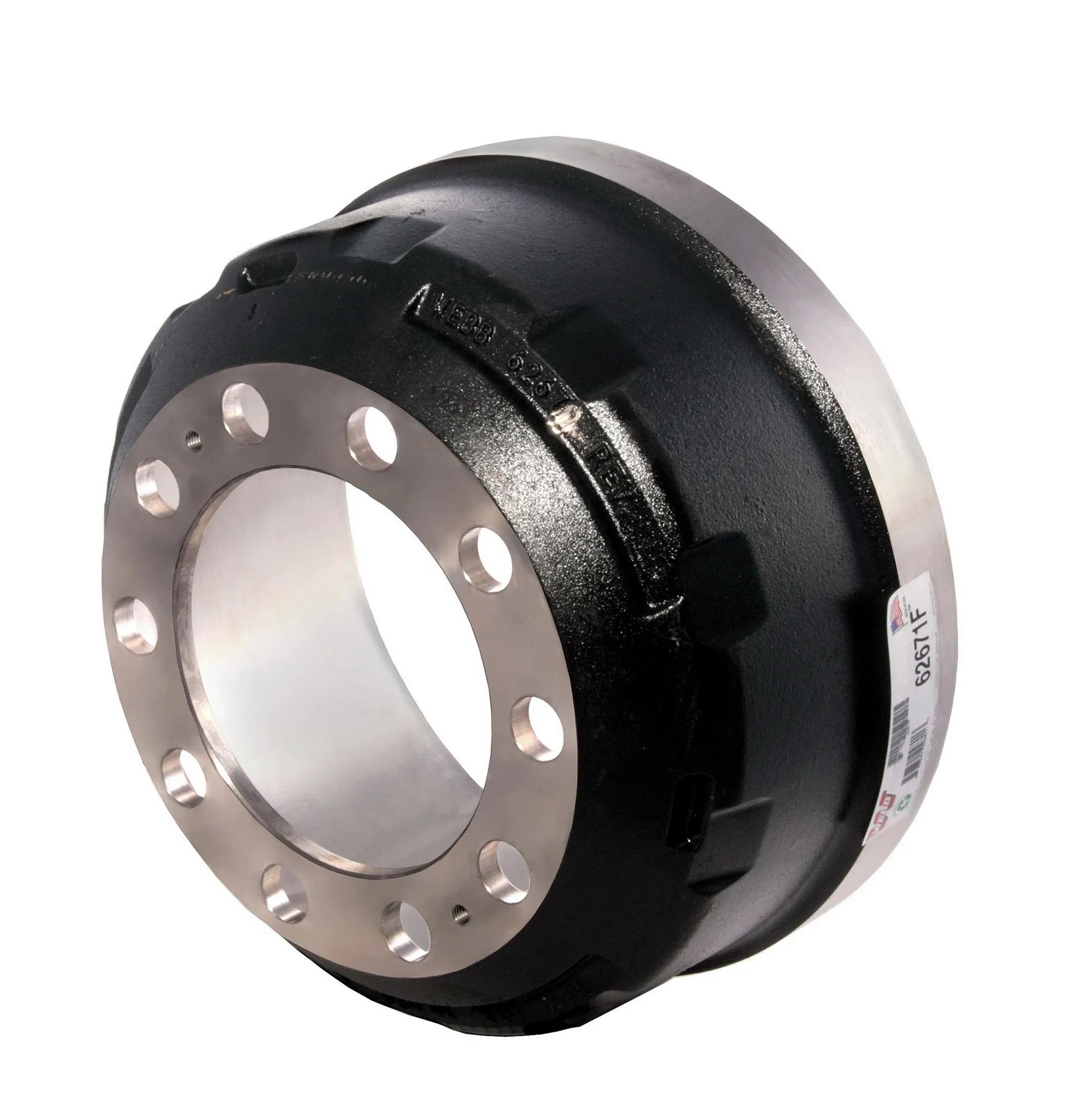

Brake Drum, 16-1/2 in x 7 in, 10 holes, (117,29 lb)
#WEB62671B
Product Overview
Webb Brake Drums Are Made From a High Grade of Cast Iron for Long Srevice and Conform to SAE Recommended Practices.
Features & Benefits
- Backed by a nationwide warranty and the best product support in the business
- Webb Wheel Products is your OE first-fit and aftermarket heavy-duty wheel-end component parts leader
- Manufactured in IATF 16949 or ISO 9001 registered facilities
Specifications
| Back Plate Thickness | 5/8 in (1.59 cm) |
| Bolt Circle Diameter | 11-1/4 in (28.58 cm) |
| Bolt Hole (Number) | 10 |
| Brake Shoe Width | 7 in (17.78 cm) |
| Brake Size | 16-1/2 in x 7 in |
| Brake Surface Diameter | 16-1/2 in (41.91 cm) |
| Brake Surface Width | 7-5/16 in (18.58 cm) |
| Drum Mounting | Outboard |
| Hole Size | 1-5/16 in (3.34 cm) |
| Maximum Diameter | 16-5/8 in (42.23 cm) |
| Overall Depth | 9-11/16 in (24.61 cm) |
| Pilot Diameter | 8-25/32 in (22.31 cm) |
| Type | Cast |
| VMRS Code | 013-017-006 |
| Weight | 116 to 120 lbs |
| Weight (lbs) | 53.21 kg (117.29 lb) |
| Width | 7 in (17.78 cm) |
Interchanges & Equivalent parts:
| 62671F |
| 3123399002 |
| X61221B |
| 54248018 |
| 62671 |
| 3687X |
| 2033650 |
