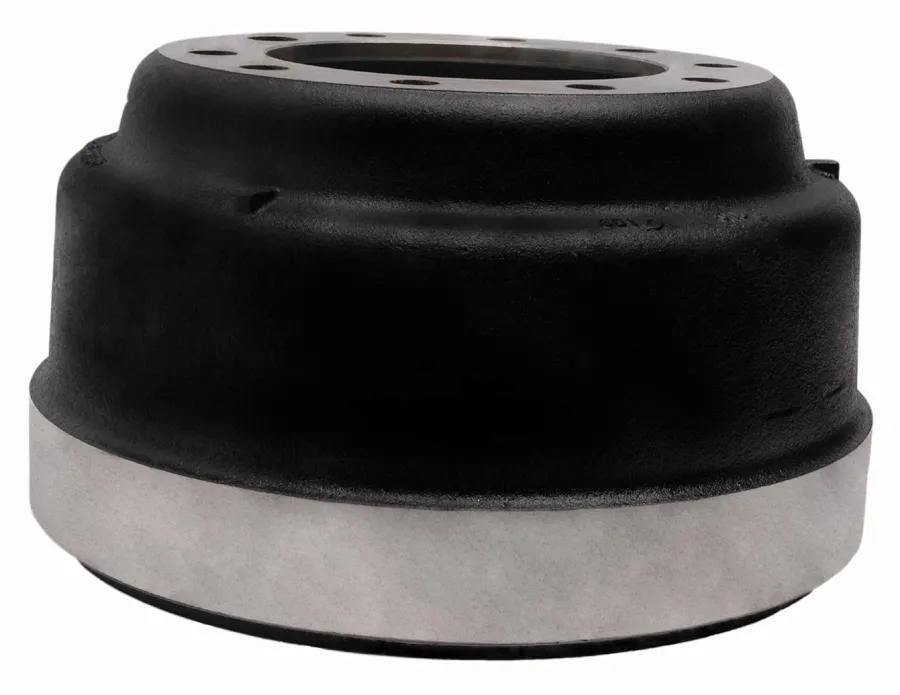

Tambour de frein, 16-1/2 po x 7 po, 10 holes, (132 lb)
#GUN3576
Caractéristiques et avantages
- All Gunite Brake Drums & Disc Brake Rotors Are Fully Protected by One of the Industrys Most Comprehensive Warranties on Material and Workmanship.
- Manufactured to Meet or Exceed O.E.M. Specifications in Function. Form & Fit.
- Gunite Brake Drums & Disc Brake Rotors Are Available Nationwide Through Over 400 Independent Warehouse Distributors. and Various O.E.M. Dealer Networks.
- Gunite Brake Drums & Rotors Offer a Level of Engineering Quality That Meets or Surpasses the Requirements of Every Truck & Trailer Manufacturer.
- Gunite Offers the Industry's Most Complete Line of Brake Drums & Disc Brake Rotors.
Spécifications
| Back Plate Thickness | 1/2 po (1,27 cm) |
| Diamètre de cercle de boulonnage | 11-1/4 po (28,58 cm) |
| Bolt Hole (Number) | 10 |
| Brake Shoe Width | 7 po (17,78 cm) |
| Taille de frein | 16-1/2 po x 7 po |
| Brake Surface Diameter | 16-1/2 po (41,91 cm) |
| Largeur de surface de frein | 7-19/32 po (19,29 cm) |
| Drum Mounting | Extérieur |
| Drum Type | BDA |
| Dust Shield Recess Depth (C) | 21/32 po (1,67 cm) |
| Dust Shield Recess Diameter (B) | 17-41/64 po (44,81 cm) |
| Taille de trou | 15/16 po (2,39 cm) |
| Maximum Wear Diameter | 16.62 |
| Notes | Severe Duty |
| Profondeur totale | 10-35/64 po (26,79 cm) |
| Emballage | Individual / En vrac |
| Diamètre de pilote | 8-25/32 po (22,31 cm) |
| Sidewall Offset (N) | 3-3/32 po (7,86 cm) |
| Rayon, disque ou rayon/disque | Disque |
| Squealer Band Width (K) | 2-23/32 po (6,91 cm) |
| Poids | 131 à 140 lbs |
| Poids (lb) | 59,88 kg (132 lb) |
| Roue - Type | Disque |
| Largeur | 7 po (17,78 cm) |
