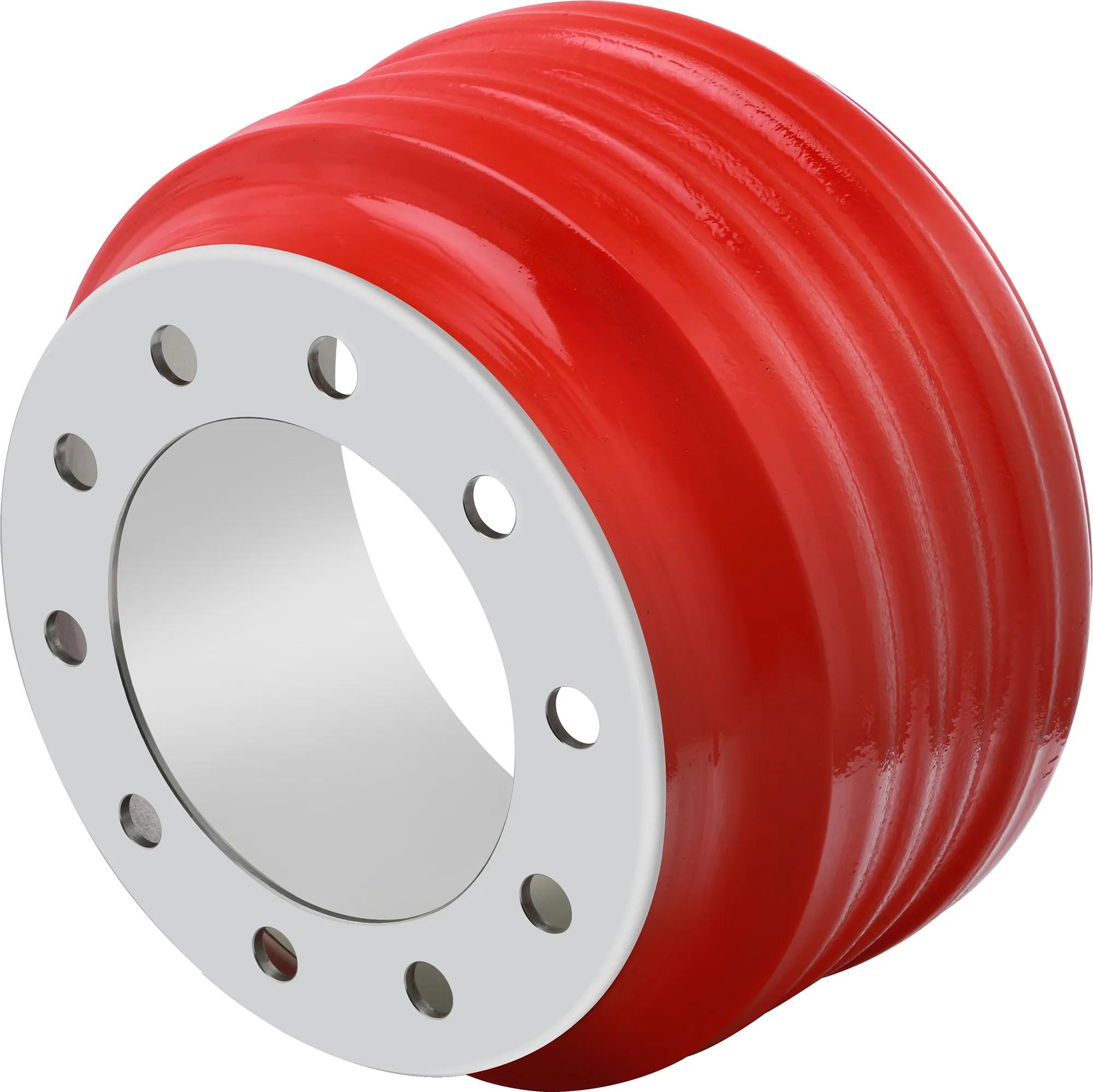

Brake Drum, 16-1/2 in x 7 in, 10 holes, (89 lb)
#WEB96864B
Product Overview
Webb’s new Lightweight composite drum provides significant weight savings compared to standard cast drums. Now you can get all of your drum needs like Cast. Vortex™. and lightweight composite drums all from a single source; Webb Wheel.
Features & Benefits
- Lightweight design generates 15%+ weight savings compared to standard cast drums
- Lighter. stronger design features one-piece outer shell with a fused cast iron brake liner
- Exceeds FMVSS-121 dynamometer specifications
- Designed. cast. and machined for optimal balance and performance
- Backed by a nationwide warranty and the best product support in the business
- Balance within practice per TMC RP608
- Webb Wheel Products is your OE first-fit and aftermarket heavy-duty wheel-end component parts leader
- Manufactured in IATF 16949 or ISO 9001 registered facilities
Specifications
| Épaisseur de la plaque arrière | 1/4 po (0,64 cm) |
| Diamètre du cercle de perçage | 11-1/4 po (28,58 cm) |
| Trou de boulon (nombre) | 10 |
| Largeur de segment de frein | 7 po (17,78 cm) |
| Dimension du frein | 16-1/2 po x 7 po |
| Diamètre de la surface du frein | 16-1/2 po (41,91 cm) |
| Surface de freinage plate | 7-41/64 po (19,41 cm) |
| Largeur de la surface de freinage | 7-41/64 po (19,41 cm) |
| Montage du tambour | Extérieur |
| Type de tambour | K |
| Taille de l'orifice | 1 po (2,54 cm) |
| Diamètre maximum | 16-5/8 po (42,23 cm) |
| Remarques | Tambour de frein composite Webb |
| Profondeur totale | 10-13/32 po (26,44 cm) |
| Diamètre du pilote | 8-25/32 po (22,31 cm) |
| Type | Coque en acier |
| Code VMRS | 013-017-006 |
| Poids | 86 à 90 lb |
| Poids (lb) | 40,37 kg (89 lb) |
| Largeur | 7 po (17,78 cm) |
Interchanges & Equivalent parts:
| 80002018 |
| WW96864B |
| 96864B |
| 123537 |
