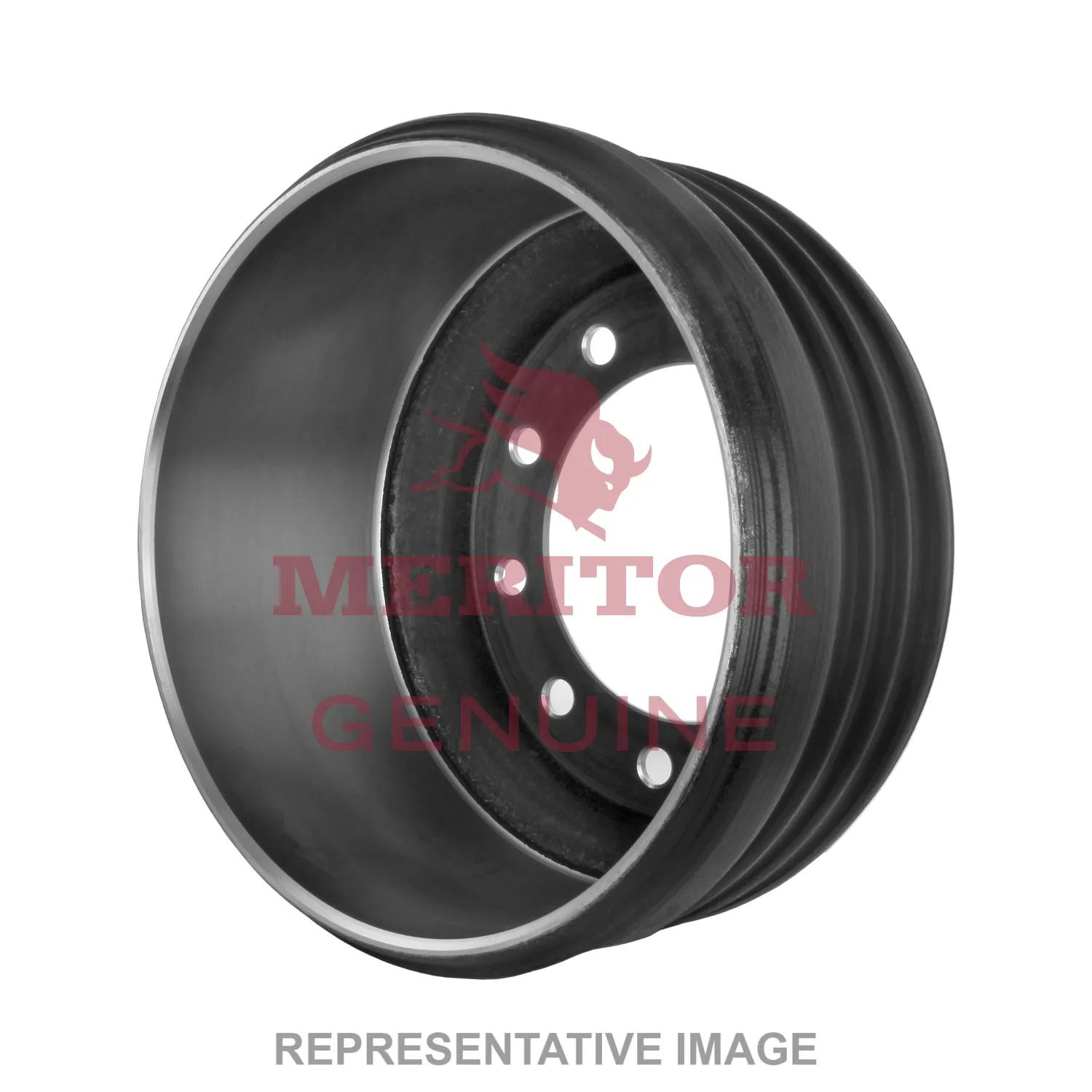

Tambour de frein, 16-1/2 po x 7 po, 10 holes, (94 lb)
#ROC53123564002
Caractéristiques et avantages
- Lightweight design generates 15%+ weight savings compared to standard cast drums
- Lighter. stronger design features one-piece outer shell with a fused cast iron brake liner
- Exceeds FMVSS-121 dynamometer specifications
- Designed. cast. and machined for optimal balance and performance
- Backed by a nationwide warranty and the best product support in the business
- Balance within practice per TMC RP608
- Webb Wheel Products is your OE first-fit and aftermarket heavy-duty wheel-end component parts leader
- Manufactured in IATF 16949 or ISO 9001 registered facilities
Spécifications
| Capacité de l'essieu (lb) | 50 707 kg (23 000 lb) |
| Épaisseur de la plaque arrière | 1/4 po (0,64 cm) |
| Diamètre du cercle de perçage | 11-1/4 po (28,58 cm) |
| Trou de boulon (nombre) | 10 |
| Largeur de segment de frein | 7 po (17,78 cm) |
| Dimension du frein | 16-1/2 po x 7 po |
| Diamètre de la surface du frein | 16-1/2 po (41,91 cm) |
| Largeur de la surface de freinage | 7-41/64 po (19,41 cm) |
| Largeur de cloison | 7 po (17,78 cm) |
| Montage du tambour | Extérieur |
| Type de tambour | BDA |
| Profondeur d'encastrement du pare-poussière (C) | 25/32 po (1,99 cm) |
| Diamètre d'évidement du pare-poussière (B) | 17-9/16 po (44,62 cm) |
| Taille de l'orifice | 13/16 po (2,07 cm) |
| Diamètre maximum | 16-5/8 po (42,23 cm) |
| Profondeur totale | 10-13/32 po (26,44 cm) |
| Diamètre total | 18-1/2 po (46,99 cm) |
| Diamètre du pilote | 8-17/32 po (21,67 cm) |
| Type | Coque en acier |
| Code VMRS | 013-017-006 |
| Poids | 91 à 95 lb |
| Poids (lb) | 42,64 kg (94 lb) |
| Type de roue | Disque |
| Largeur | 7 po (17,78 cm) |
Interchanges et pièces équivalentes:
| 3098925 |
| 35763564 |
| 53-123564 |
| 53-123564-002 |
| 53123564 |
| 53123564002-RI |
| 67101B |
| 8235-53123564002 |
| 8HA433 |
| 96893B |
| ATI53123564002 |
| DW123564 |
| GUN 3166X |
| GUN 9021X |
| HWI 87101B |
| MER53-123564-002 |
| MOT87101B |
| RW53-123564-002 |
| STE87101B |
| TDA 53 123564 002 |
| TDA53123564002 |
| 3166GUN |
| GUN 3166 |
| 123564 |
| 60893B |
| 3166 |
| 122607 |
| 122334 |
| OTR1603 |
| 87101B |
| 3483 |
