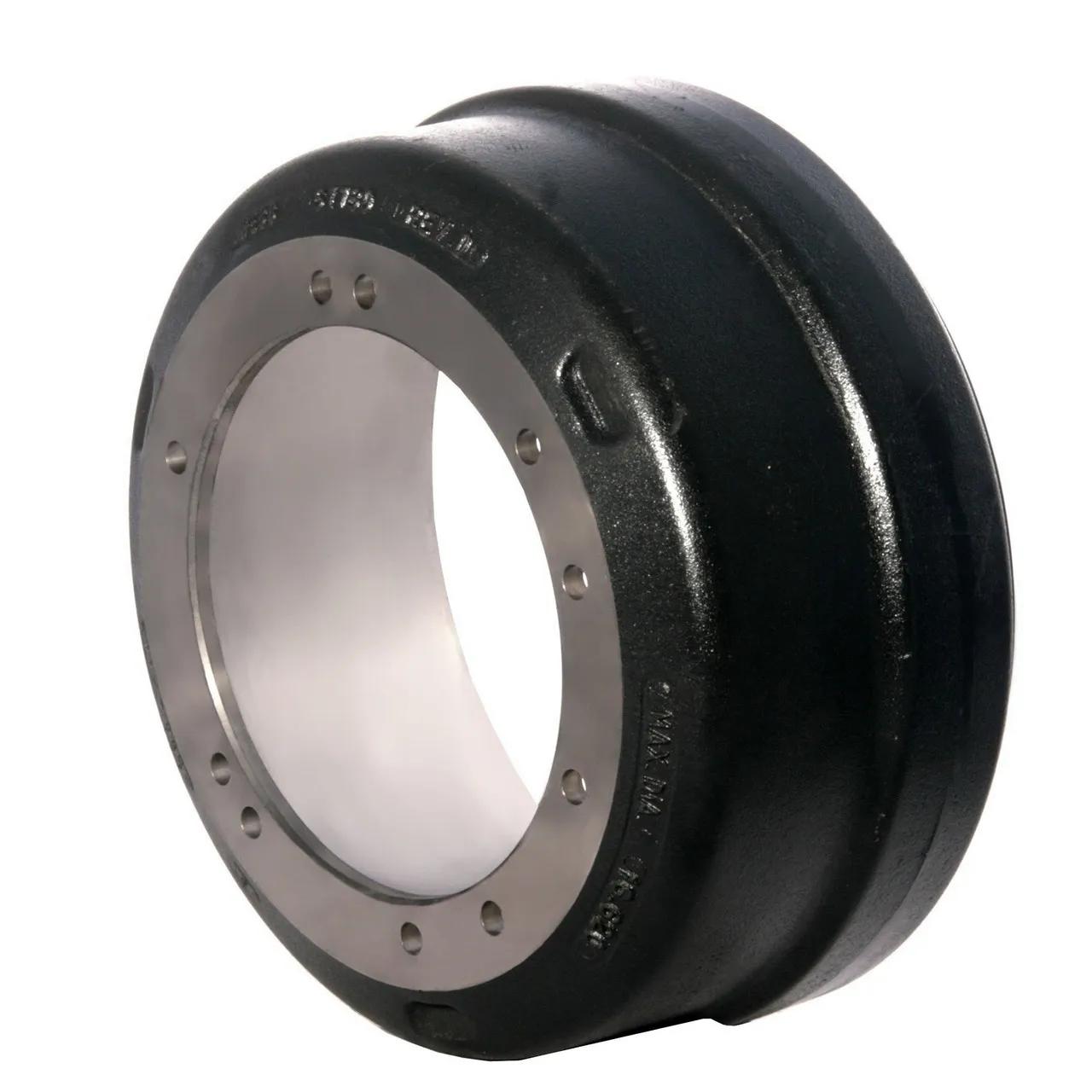

Brake Drum, 16-1/2 in x 7 in, 5 & 6 holes, (109,64 lb)
#WEB61780F
Product Overview
Warranty:
WEB61780F - Warranty Documents - A
WEB61780F - Warranty Documents - B
WEB61780F - Warranty Documents - C
The Brake Drum ensures effective braking performance by providing a surface for the brake shoes to press against. It is a critical component in braking systems, allowing friction to slow and stop the vehicle. Made from durable materials, the Brake Drum offers high heat resistance to prevent deformation under extreme conditions. Designed for precision, it maintains optimal contact with the brake shoes to deliver consistent and reliable stopping power. Efficient heat dissipation minimizes brake fade, enhancing overall braking efficiency and safety.
Features & Benefits
- Provides consistent braking performance under heavy loads
- Backed by a nationwide warranty and the best product support in the business
- Webb Wheel Products is your OE first-fit and aftermarket heavy-duty wheel-end component parts leader
- Manufactured in IATF 16949 or ISO 9001 registered facilities
- Durable cast iron construction ensures long-lasting performance
- Resistant to heat, ideal for high-temperature braking conditions
- Reduces noise and vibrations for a comfortable driving experience
- Corrosion-resistant coating for enhanced longevity and aesthetics
Specifications
| Back Plate Thickness | 1/2 in (1.27 cm) |
| Bolt Circle Diameter | 12-1/2 in (31.75 cm) |
| Bolt Hole (Number) | 5 & 6 |
| Brake Shoe Width | 7 in (17.78 cm) |
| Brake Size | 16-1/2 in x 7 in |
| Brake Surface Diameter | 16-1/2 in (41.91 cm) |
| Brake Surface Width | 7-13/32 in (18.82 cm) |
| Drum Mounting | Inboard |
| Hole Size | 21/32 in (1.67 cm) |
| Maximum Diameter | 16-5/8 in (42.23 cm) |
| Overall Depth | 8-1/2 in (21.59 cm) |
| Pilot Diameter | 11 in (27.94 cm) |
| Type | Cast |
| VMRS Code | 013-017-006 |
| Weight | 106 to 110 lbs |
| Weight (lbs) | 49.74 kg (109.64 lb) |
| Width | 7 in (17.78 cm) |
Interchanges & Equivalent parts:
| 3142 |
| 3143 |
| 61780B |
| 2577A |
| 2577AX |
| 3142X |
| 3143X |
| 8219123 |
| 61780 |
| 8669 |
| 2176A |
| 2177A |
| 5196110 |
| 5196111 |
| 5222101 |
| 87435 |
| 16149 |
| 97086 |
| C8045 |
| MMG-0250-34 |
| 120152 |
| 122328 |
| 122329 |
| 17QJ-3204 |
| 17QJ-483 |
| 1516702 |
| 1512577A |
| 3946055 |
| 851334 |
| 3120754002 |
| 17QJ-3176-CP2 |
| BD60572 |
| 03-120754 |
| 87109 |
| MDA120754 |
| 86989 |
| 120754 |
| 821-9123 |
| 17QJ-3216 |
| 17QJ-3176-BP2 |
| 17QJ-3176-P2 |
| 86788 |
| 2762 |
| HD15 |
