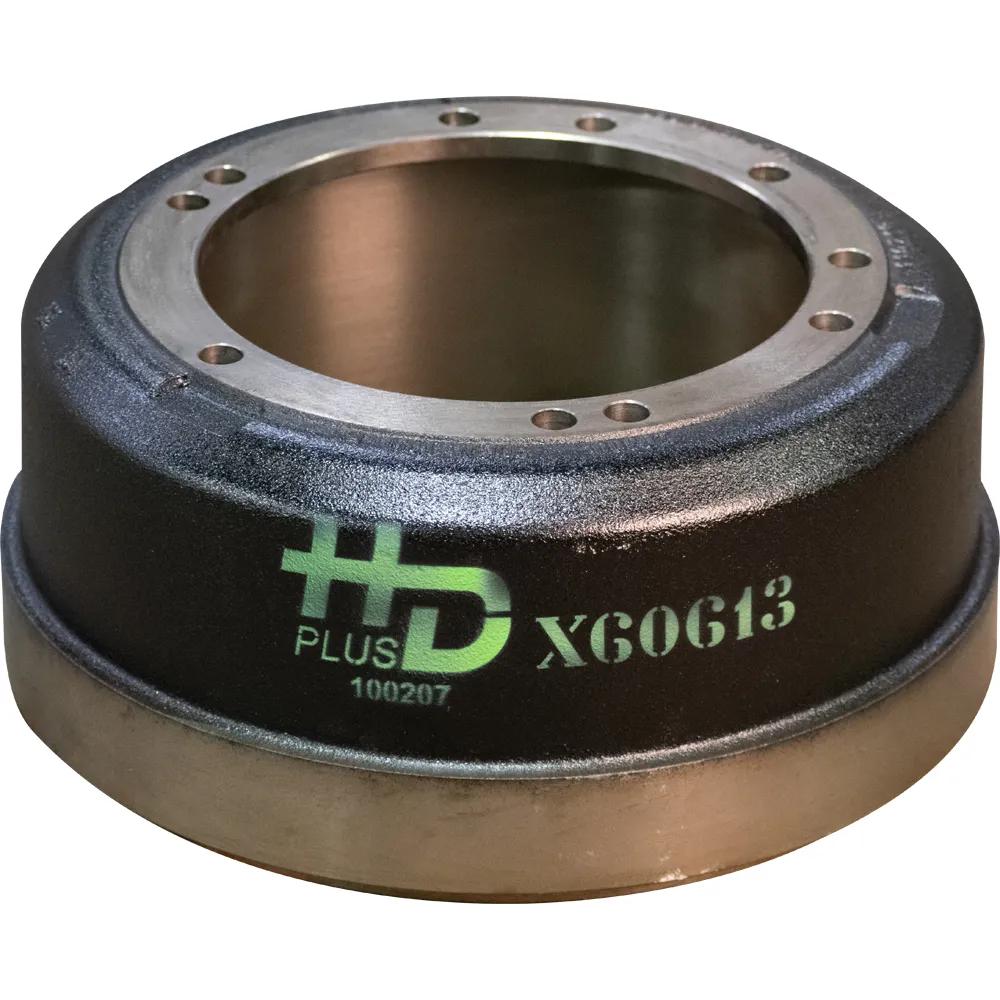

Brake Drum, 16-1/2 in x 7 in, 5 & 6 holes
#DRMX60613
Product Overview
This 16.5 in x 7 in brake drum is designed for truck rear axles. It features a durable inboard design with 5 or 6 bolt holes and meets OEM specifications for reliable performance.
Features & Benefits
- Manufactured to Meet or Exceed O.E.M. Specifications in Function. Form & Fit.
Specifications
| Application | Essieux arrière de camion |
| Épaisseur de la plaque arrière | 1/2 po (1,27 cm) |
| Diamètre du cercle de perçage | 12-3/4 po (32,39 cm) |
| Trou de boulon (nombre) | 5 et 6 |
| Largeur de segment de frein | 7 po (17,78 cm) |
| Dimension du frein | 16-1/2 po x 7 po |
| Diamètre de la surface du frein | 16-1/2 po (41,91 cm) |
| Largeur de la surface de freinage | 7-7/16 po (18,9 cm) |
| Montage du tambour | Intérieur |
| Type de tambour | AAA |
| Profondeur d'encastrement du pare-poussière (C) | 5/8 po (1,59 cm) |
| Diamètre d'évidement du pare-poussière (B) | 17-1/2 po (44,45 cm) |
| Taille de l'orifice | 25/32 po (1,99 cm) |
| Diamètre maximum | 16-5/8 po (42,23 cm) |
| Profondeur totale | 8-25/64 po (21,32 cm) |
| Diamètre total | 18-63/64 po (48,22 cm) |
| Diamètre du pilote | 11-1/4 po (28,58 cm) |
| Décalage du flanc (N) | 1-17/64 po (3,23 cm) |
| Squealer Band Width (K) | 2-13/32 po (6,12 cm) |
| VMRS Code | 013-017-006 |
| Width | 7 po (17,78 cm) |
Interchanges & Equivalent parts:
| 100207 |
| 122683 |
| 2770 |
| 3295 |
| 3295A |
| 68981 |
| 68981B |
| U00X60613 |
| U00X60613S |
| X60613S |
| 130279 |
| 90233 |
| M10981E |
| M10981SP |
| HD7 |
| HD7M |
| 5212012 |
