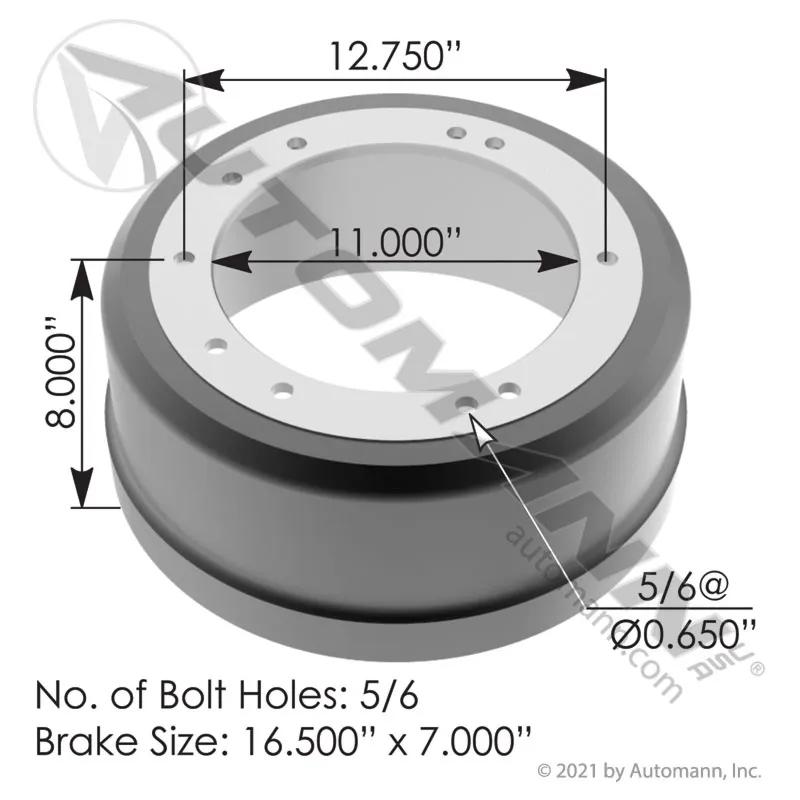

Brake Drum, 16-1/2 in x 7 in, 5 & 6 holes
#MZB151.6716
Specifications
| Épaisseur de la plaque arrière | 13/32 po |
| Diamètre du cercle de perçage | 12-3/4 po |
| Trou de boulon (nombre) | 5 et 6 |
| Brake Shoe Width | 7 po |
| Brake Size | 16-1/2 po x 7 po |
| Brake Surface Diameter | 16-1/2 po |
| Brake Surface Flat | 7-7/16 po (18,9 cm) |
| Depth | 8 po (20,32 cm) |
| Drum Mounting | Intérieur |
| Drum Type | AAA |

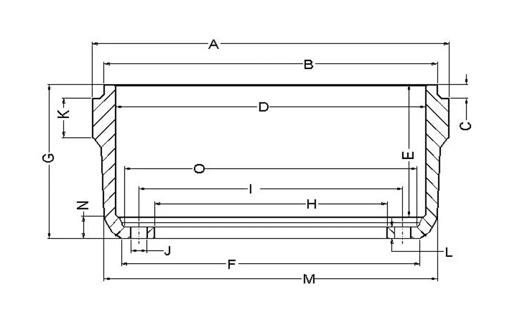

| Dust Shield Recess Depth (C) | 21/32 po |
| Dust Shield Recess Diameter (B) | 17-1/2 po |
| Hole Size | 21/32 po |
| Maximum Diameter | 16-5/8 po |
| Overall Depth | 8 po |
| Overall Diameter | 18-7/8 po |
| Pilot Diameter | 11 po (27,94 cm) |
| Squealer Band Width (K) | 2-3/32 po |
| Type | Moulé |
| VMRS Code | 013-017-006 |
| Weight | 107,1 lb |
| Width | 7 po |
Interchanges & Equivalent parts:
| 120743 |
| 03120743002 |
| 151.6716 |
