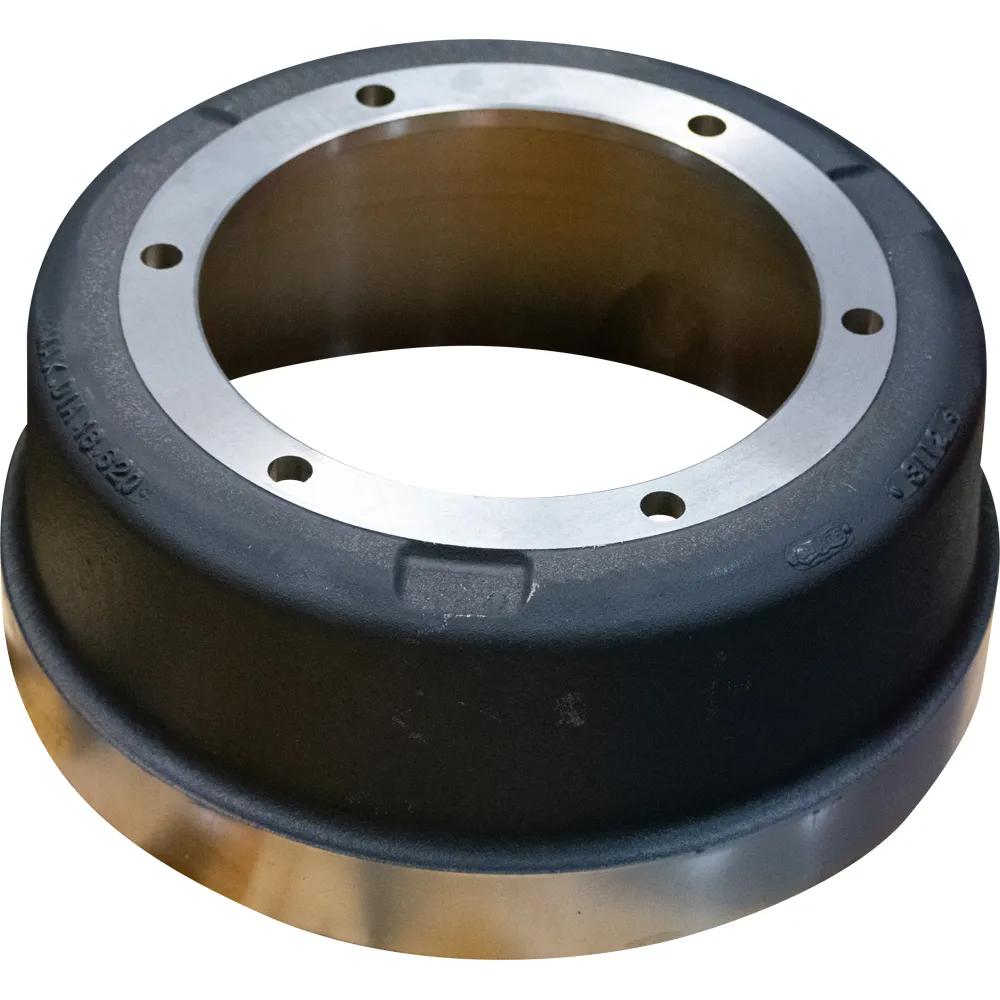

Brake Drum, 16-1/2 in x 7 in, 6 holes, (107 lb)
#GUN3112AX
Features & Benefits
- All Gunite Brake Drums & Disc Brake Rotors Are Fully Protected by One of the Industrys Most Comprehensive Warranties on Material and Workmanship.
- Manufactured to Meet or Exceed O.E.M. Specifications in Function. Form & Fit.
- Gunite Brake Drums & Disc Brake Rotors Are Available Nationwide Through Over 400 Independent Warehouse Distributors. and Various O.E.M. Dealer Networks.
- Gunite Brake Drums & Rotors Offer a Level of Engineering Quality That Meets or Surpasses the Requirements of Every Truck & Trailer Manufacturer.
- Gunite Offers the Industry's Most Complete Line of Brake Drums & Disc Brake Rotors.
Specifications
| Épaisseur de la plaque arrière | 9/16 po |
| Diamètre du cercle de perçage | 12-3/4 po |
| Trou de boulon (nombre) | 6 |
| Largeur de segment de frein | 7 po |
| Dimension du frein | 16-1/2 po x 7 po |
| Diamètre de la surface du frein | 16-1/2 po |
| Largeur de la surface de freinage | 7-13/32 po |
| Montage du tambour | Intérieur |
| Type de montage du tambour | Intérieur |
| Type de tambour | AAH |
| Profondeur d'encastrement du pare-poussière (C) | 21/32 po |
| Diamètre d'évidement du pare-poussière (B) | 17-3/8 po |
| Taille de l'orifice | 25/32 po |
| Diamètre maximum | 16-5/8 po |
| Profondeur totale | 8-7/32 po |
| Diamètre total | 19 po |
| Emballage | Individuel / En vrac |
| Diamètre du pilote | 11-1/4 po (28,58 cm) |
| Décalage du flanc (N) | 57/64 po |
| Largeur de bande sonore (K) | 2-19/64 po |
| Code VMRS | 013-017-006 |
| Poids | 106 à 110 lb |
| Weight (lbs) | 49,11 kg (107 lb) |
| Wheel Type | Rayon |
| Width | 7 po |
Interchanges & Equivalent parts:
| 3112A |
| 15577917 |
| 3112AX-GJ |
| 504145C1 |
| G15577917 |
| GUN 3112AX |
| GUN3112AX |
| ZBR3112AX |
