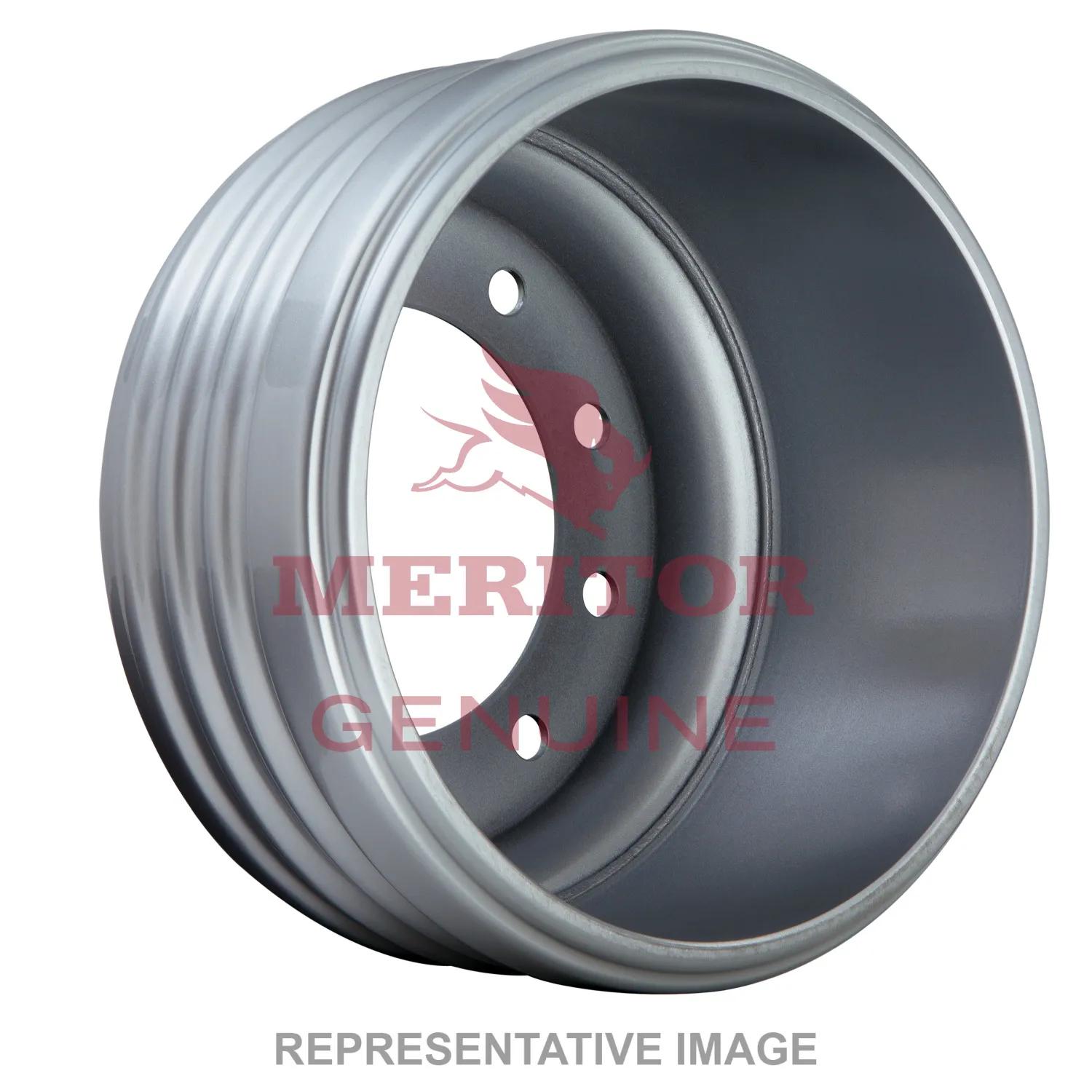

Brake Drum, 16-1/2 in x 8-5/8 in, 10 holes, (103,32 lb)

#ROC53123544002

Product Overview

Brake Drums;Brake Drums

Lightweight design generates 15%+ weight savings compared to standard cast drums

Lighter. stronger design features one-piece outer shell with a fused cast iron brake liner

Webb Wheel Products is your OE first-fit and aftermarket heavy-duty wheel-end component parts leader

Application	Truck Rear Axles. Trailer Axles. Bus
Axle Capacity (lb)	50707 kg (23000 lbs)
Back Plate Thickness	9/16 in
Bolt Circle Diameter	11-1/4 in
Bolt Hole (Number)	10
Brake Shoe Width	8-5/8 in
Brake Size	16-1/2 in x 8-5/8 in
Brake Surface Diameter	16-1/2 in
Brake Surface Width	9-3/32 in
Bridge Width	8-5/8 in
Depth	10-31/64 in (26.63 cm)
Drum Mounting	Outboard
Drum Mount Type	Outboard
Drum Type	BDA
Dust Shield Recess Depth (C)	51/64 in
Dust Shield Recess Diameter (B)	17-3/8 in
Flange Thickness	5/8 in
Height	12 in
Hole Size	1 in
Maximum Diameter	16-5/8 in
Overall Depth	11-13/64 in
Overall Diameter	18-7/8 in
Pilot Diameter	8-25/32 in (22.31 cm)
Sidewall Offset (N)	2-27/64 in
Squealer Band Width (K)	2 in
Type	Steel Shell
VMRS Code	013-017-006
Weight	101 to 105 lbs
Weight (lbs)	47.42 kg (103.32 lb)
Wheel Type	Disc
Width	8-5/8 in
