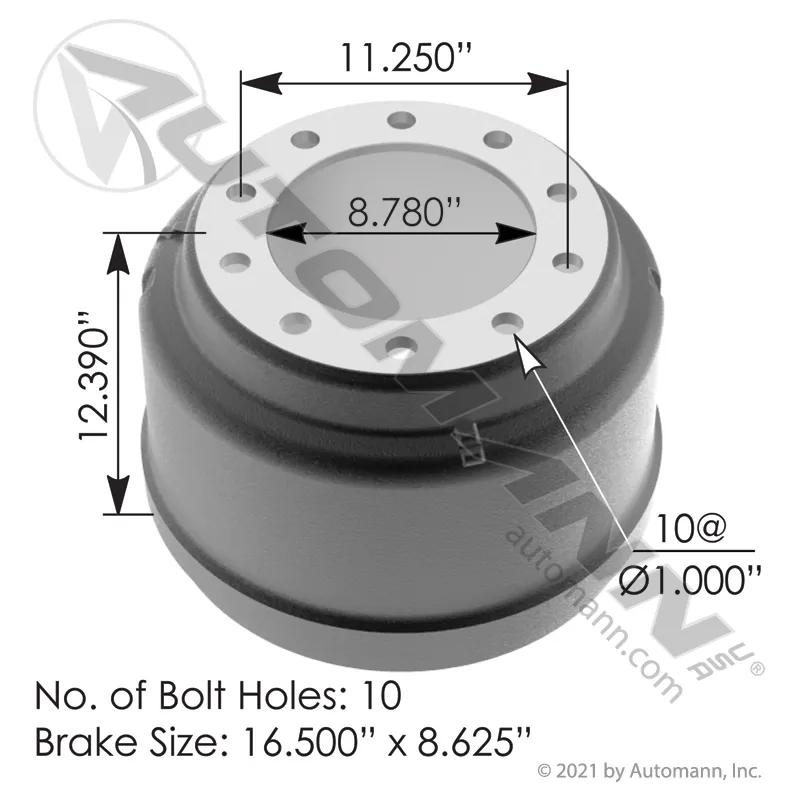

Brake Drum, 16-1/2 in x 8-5/8 in, 10 holes
#MZB151.68605
Specifications
| Back Plate Thickness | 1/2 in (1.27 cm) |
| Bolt Circle Diameter | 11-1/4 in (28.58 cm) |
| Bolt Hole (Number) | 10 |
| Brake Shoe Width | 8-5/8 in (21.92 cm) |
| Brake Size | 16-1/2 in x 8-5/8 in |
| Brake Surface Diameter | 16-1/2 in (41.91 cm) |
| Drum Mounting | Outboard |
| Height | 14 in (35.56 cm) |
| Hole Size | 1 in (2.54 cm) |
| Maximum Diameter | 16-5/8 in (42.23 cm) |
| Overall Depth | 12-25/64 in (31.48 cm) |
| Pilot Diameter | 8-25/32 in (22.31 cm) |
| VMRS Code | 013-017-006 |
Interchanges & Equivalent parts:
| 03123428002 |
| 151.68605 |
