Tambour de frein, 16-1/2 po x 8 po, 10 holes, (117,09 lb)
#WEB66800B
Caractéristiques et avantages
- Backed by a nationwide warranty and the best product support in the business
- Webb Wheel Products is your OE first-fit and aftermarket heavy-duty wheel-end component parts leader
- Manufactured in IATF 16949 or ISO 9001 registered facilities
Spécifications

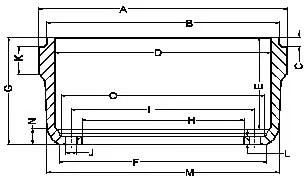

| Axle Capacity (lb) | 50707 kg (23000 lbs) |
| Back Plate Thickness | 9/16 po (1,44 cm) |
| Diamètre de cercle de boulonnage | 11-1/4 po (28,58 cm) |
| Bolt Hole (Number) | 10 |
| Brake Diameter () | 16-1/2 po |
| Brake Shoe Width | 8 po (20,32 cm) |
| Taille de frein | 16-1/2 po x 8 po |
| Brake Surface Diameter | 16-1/2 po (41,91 cm) |
| Largeur de surface de frein | 8-39/64 po (21,87 cm) |
| Drum Mounting | Extérieur |
| Drum Type | BDA |
| Dust Shield Recess Depth (C) | 11/16 po (1,75 cm) |
| Dust Shield Recess Diameter (B) | 17-1/2 po (44,45 cm) |
| Taille de trou | 1 po (2,54 cm) |
| Maximum Wear Diameter | 16.62 |
| Profondeur totale | 11-3/32 po (28,18 cm) |
| Diamètre de pilote | 8-25/32 po (22,31 cm) |
| Sidewall Offset (N) | 2-1/2 po (6,35 cm) |
| Squealer Band Width (K) | 2-13/64 po (5,6 cm) |
| Type | Moulé |
| Poids | 116 à 120 lbs |
| Poids (lb) | 53,12 kg (117,09 lb) |
| Largeur | 8 po (20,32 cm) |
