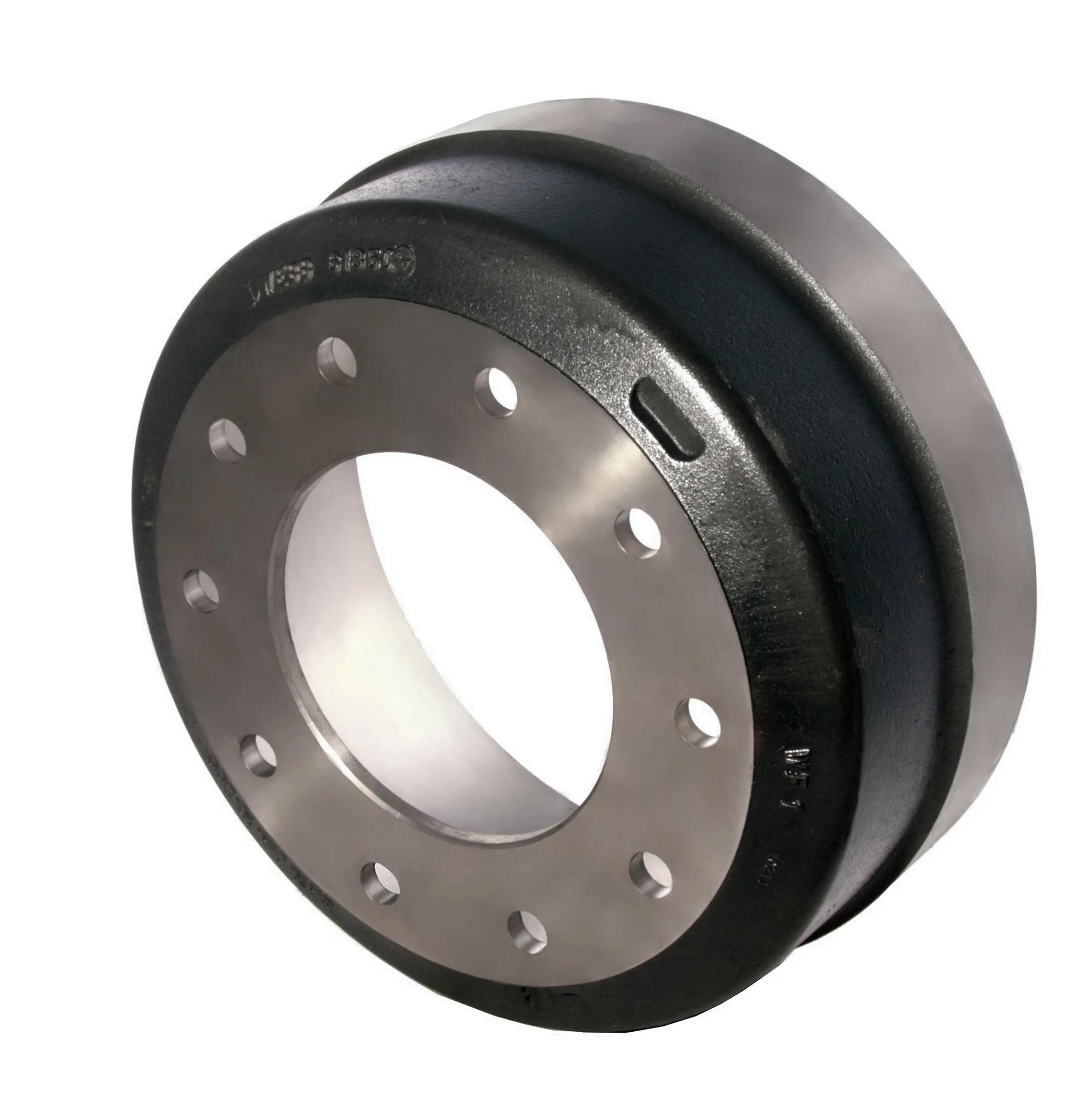

Brake Drum, 18 in x 7 in, 10 holes, (135,25 lb)
#WEB61850F
Product Overview
Webb Brake Drums Are Made From a High Grade of Cast Iron for Long Srevice and Conform to SAE Recommended Practices.
Features & Benefits
- Backed by a nationwide warranty and the best product support in the business
- Webb Wheel Products is your OE first-fit and aftermarket heavy-duty wheel-end component parts leader
- Manufactured in IATF 16949 or ISO 9001 registered facilities
Specifications
| Back Plate Thickness | 9/16 in (1.44 cm) |
| Bolt Circle Diameter | 13-3/16 in (33.5 cm) |
| Bolt Hole (Number) | 10 |
| Brake Shoe Width | 7 in (17.78 cm) |
| Brake Size | 18 in x 7 in |
| Brake Surface Diameter | 18 in (45.72 cm) |
| Brake Surface Width | 7-1/2 in (19.05 cm) |
| Drum Mounting | Inboard |
| Hole Size | 1-1/16 in (2.71 cm) |
| Maximum Diameter | 18-1/4 in (46.36 cm) |
| Overall Depth | 8-3/4 in (22.23 cm) |
| Pilot Diameter | 9 in (22.86 cm) |
| Type | Cast |
| VMRS Code | 013-017-006 |
| Weight | 131 to 140 lbs |
| Weight (lbs) | 61.35 kg (135.25 lb) |
| Width | 7 in (17.78 cm) |
Interchanges & Equivalent parts:
| 61850B |
| 61850 |
| 5141001 |
| 3219K2065 |
| 3219U2569 |
| 493604C1 |
| 3219K4067 |
| 3219S2775 |
| 1807 |
