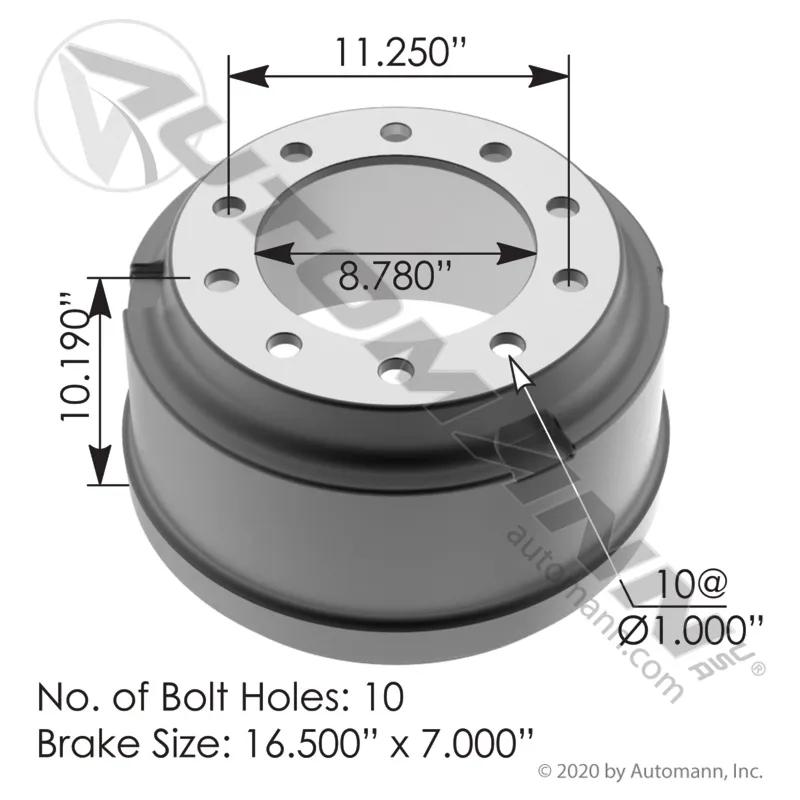

Brake Drum, 11.25 in Bolt Circle Dia, 1 in Bolt Hole Diameter, 16.5 x 7 in Brake, 7.5 in Brake Surface Width
#MZB151.6718BA
Sommaire du produit
Brake Drum, 11.25 in Bolt Circle Dia, 1 in Bolt Hole Diameter, 16.5 x 7 in Brake, 16.5 in Brake Surface Dia, 7.5 in Brake Surface Width, 10.19 in Height, 10 Holes, 8.78 in Pilot Dia, For Universal
Caractéristiques et avantages
- Balanced
Spécifications
| Application | Universel |
| Épaisseur de la plaque arrière | 1/2 po (1,27 cm) |
| Diamètre du cercle de perçage | 11,25 po |
| Trou de boulon (nombre) | 10 |
| Dimension du frein | 16,5 x 7 po |
| Diamètre de la surface du frein | 16,5 po |
| Largeur de la surface de freinage | 7,5 po |
| Depth | 10-3/16 po (25,88 cm) |
| Drum Mounting | Extérieur |
| Drum Type | BDA |
| Dust Shield Recess Depth (C) | 5/8 po (1,59 cm) |
| Dust Shield Recess Diameter (B) | 17-9/16 po (44,62 cm) |
| Flange Thickness | 1/2 po (1,27 cm) |
| Height | 10,19 po |
| Hole Size | 1 po (2,54 cm) |
| Maximum Diameter | 16-5/8 po (42,23 cm) |
| Overall Depth | 10-3/16 po (25,88 cm) |
| Overall Diameter | 18-51/64 po (47,75 cm) |
| Pilot Diameter | 8,78 po |
| Sidewall Offset (N) | 3 po (7,62 cm) |
| Squealer Band Width (K) | 1-7/8 po (4,77 cm) |
| VMRS Code | 013-017-006 |
| Weight | 116 lb |
| Width | 7 po (17,78 cm) |
| Bolt Hole Diameter | 1 po |
| Number of Holes | 10 |
| Manufacturer Part Number | 151.6718BA |
| Product Category | Tambour de frein |
Interchanges et pièces équivalentes:
| 151.6718BA |
