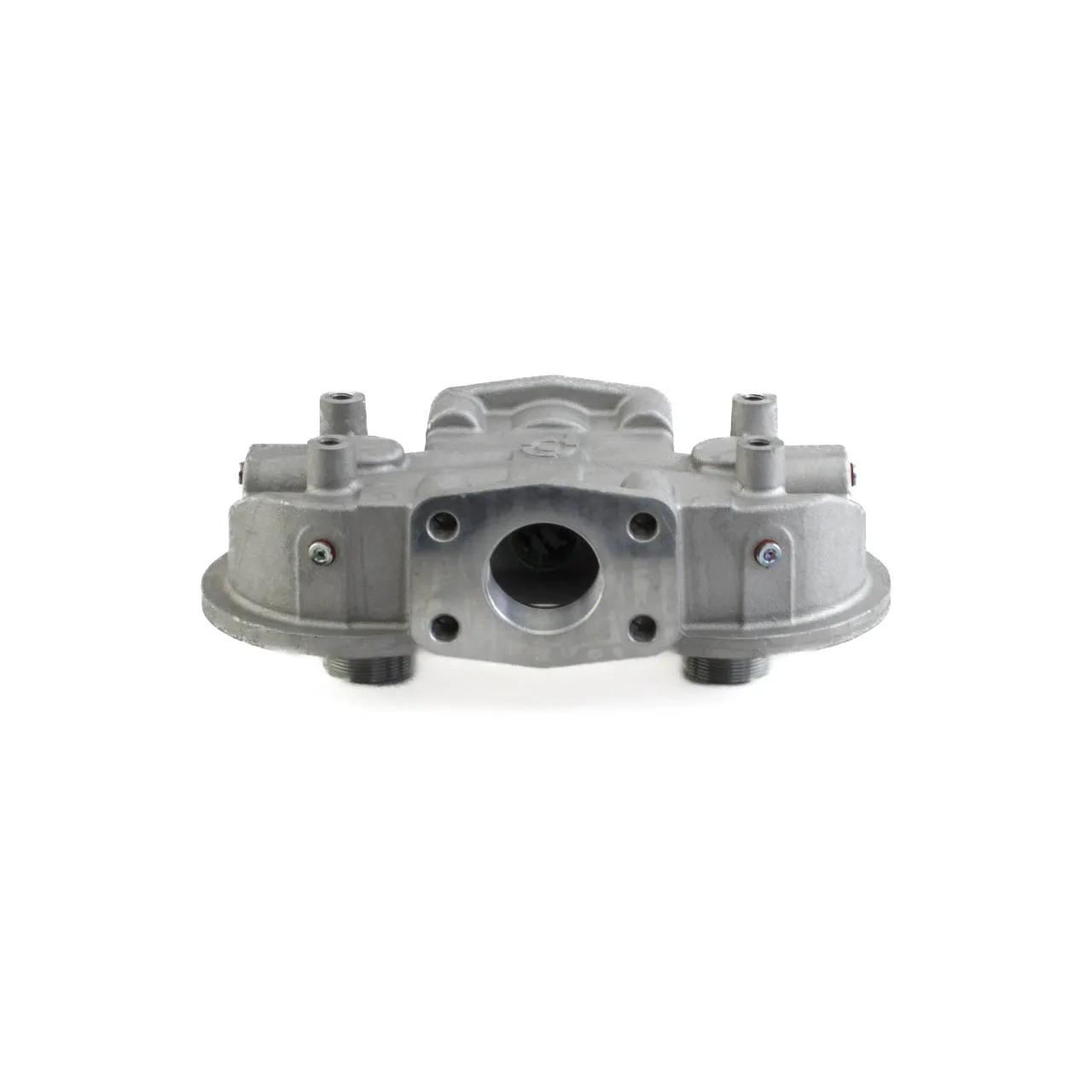

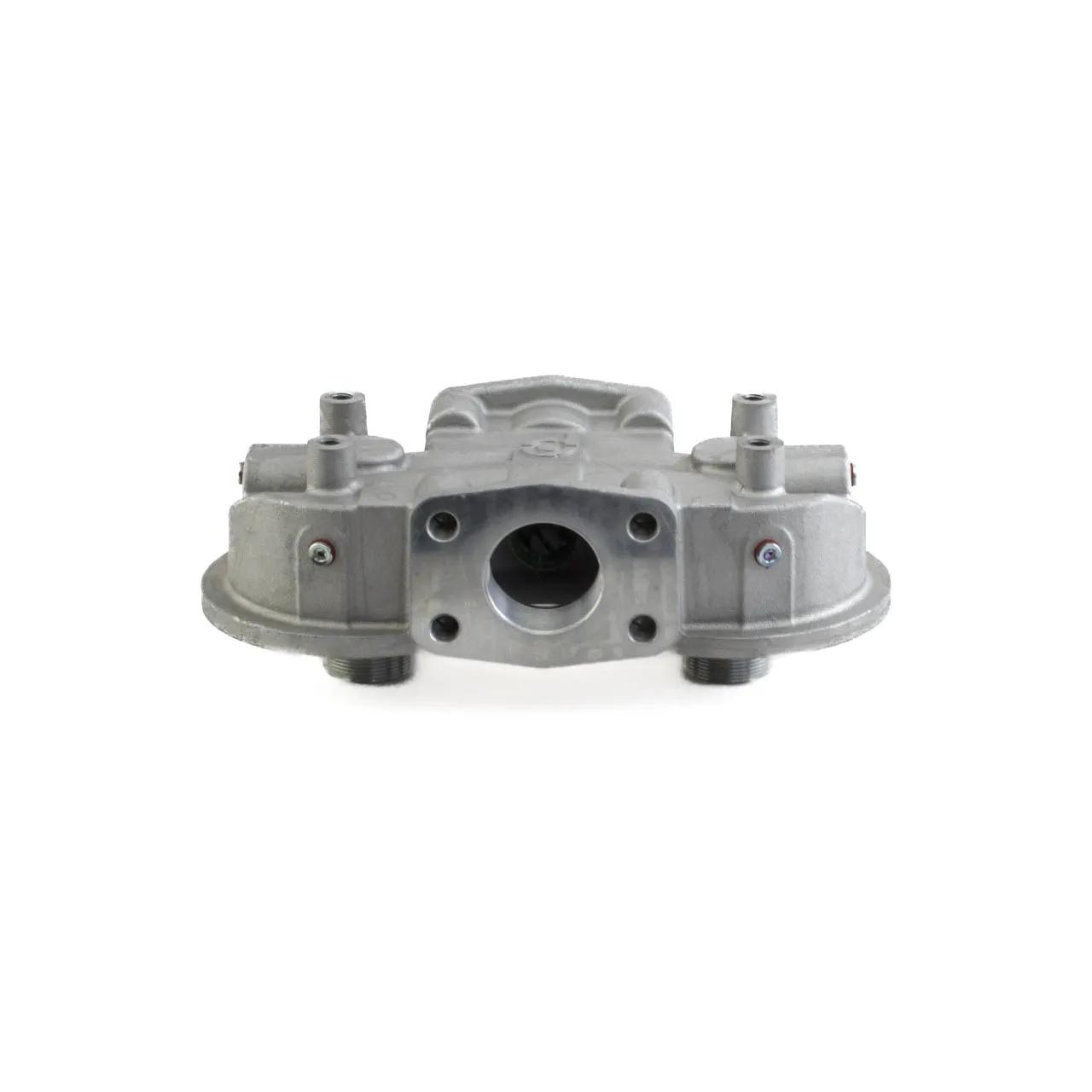

HEAD ASSY L: 9,85 in, OD: 1 1/2 NPT , ID: 1 1/2 NPT
#DONP563273
Features & Benefits
- Donaldson offers the industry’s largest selection of hydraulic, lube and gear oil filtration products for contamination control.
- Donaldson hydraulic filters and accessories reduce a broad range of contaminants, providing superior performance in thousands of applications.
- Products and technology designed to consistently meet required specifications - and your expectations.
Specifications
| Bypass Valve | Oui |
| Bypass Valve Setting LR | 14,51 psi (1 bar) |
| Efficiency Beta 20 | 40 microns |
| Efficiency Beta 20 (Micron) | 40 microns |
| Efficiency Beta 75 | 20 Micron |
| Filter-to-Head Thread | 1 1/4 BSP/G & 1 1/2-16 UN (x2) |
| Height | 3-1/16 po (7,77 cm) |
| Inlet Size | 1 1/2 NPT |
| Length | 9-27/32 po (24,99 cm) |
| Outer Diameter | 1 1/2 NPT |
| Outlet Size | 1 1/2 NPT |
| Series | SP80/90 |
| Length Range | 9 to 9.99 in |
| Width | 5-45/64 in (14.48 cm) |
Interchanges & Equivalent parts:
| P563273 |
| SP80NGN1 |
| DN P563273 |
| 2191-P563273 |
| DONP563273 |
